Alta Labs AP6W

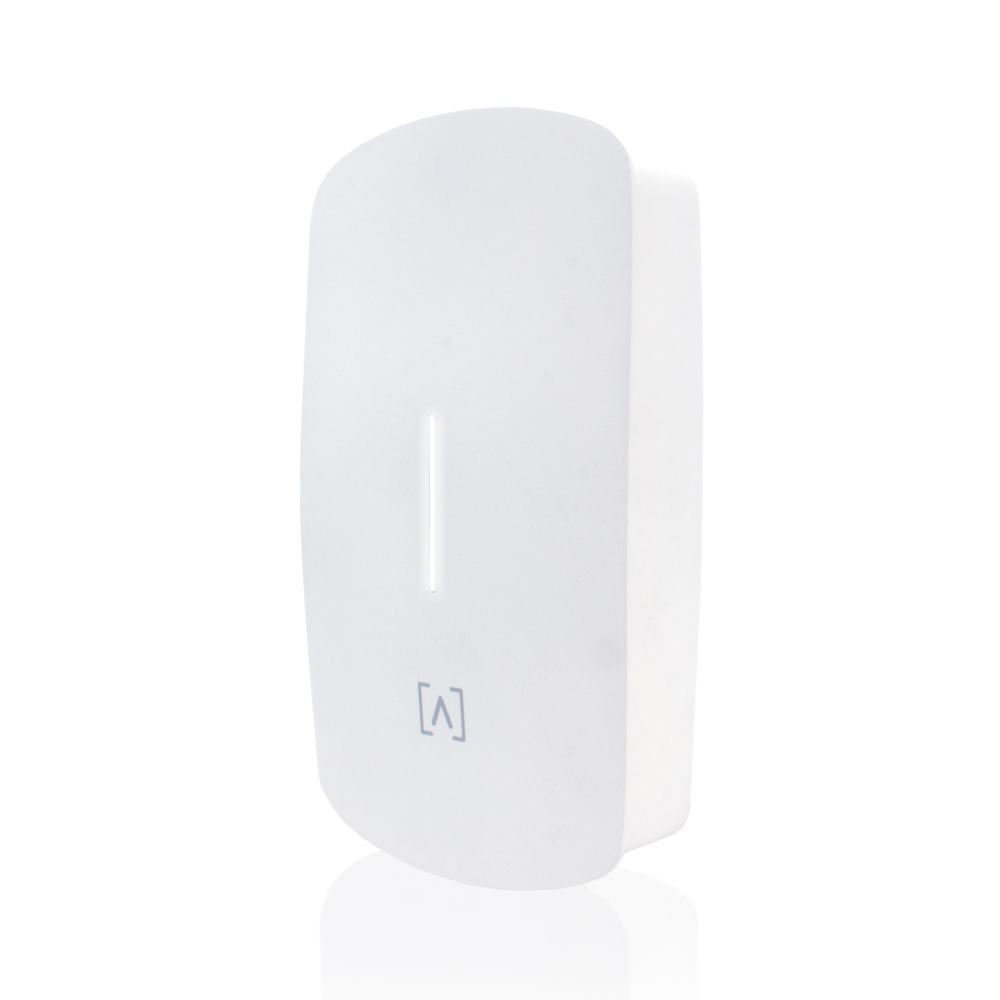

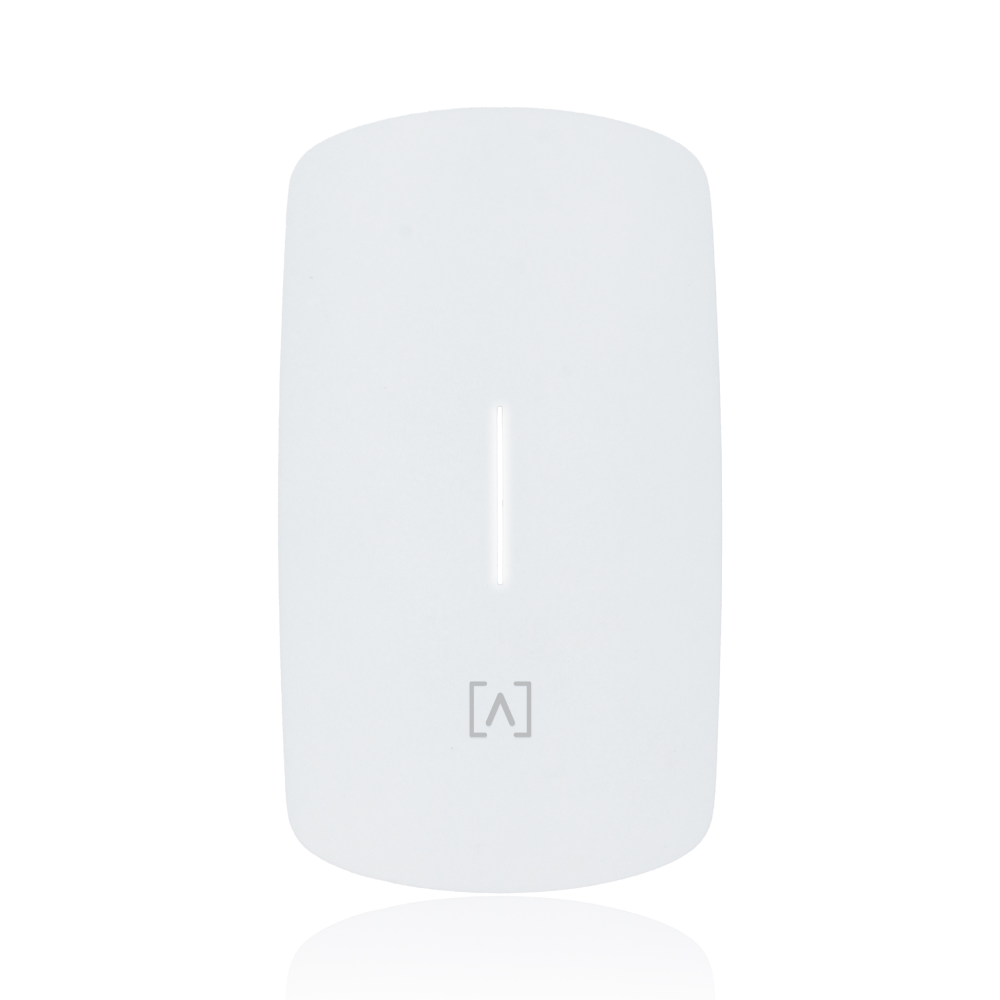

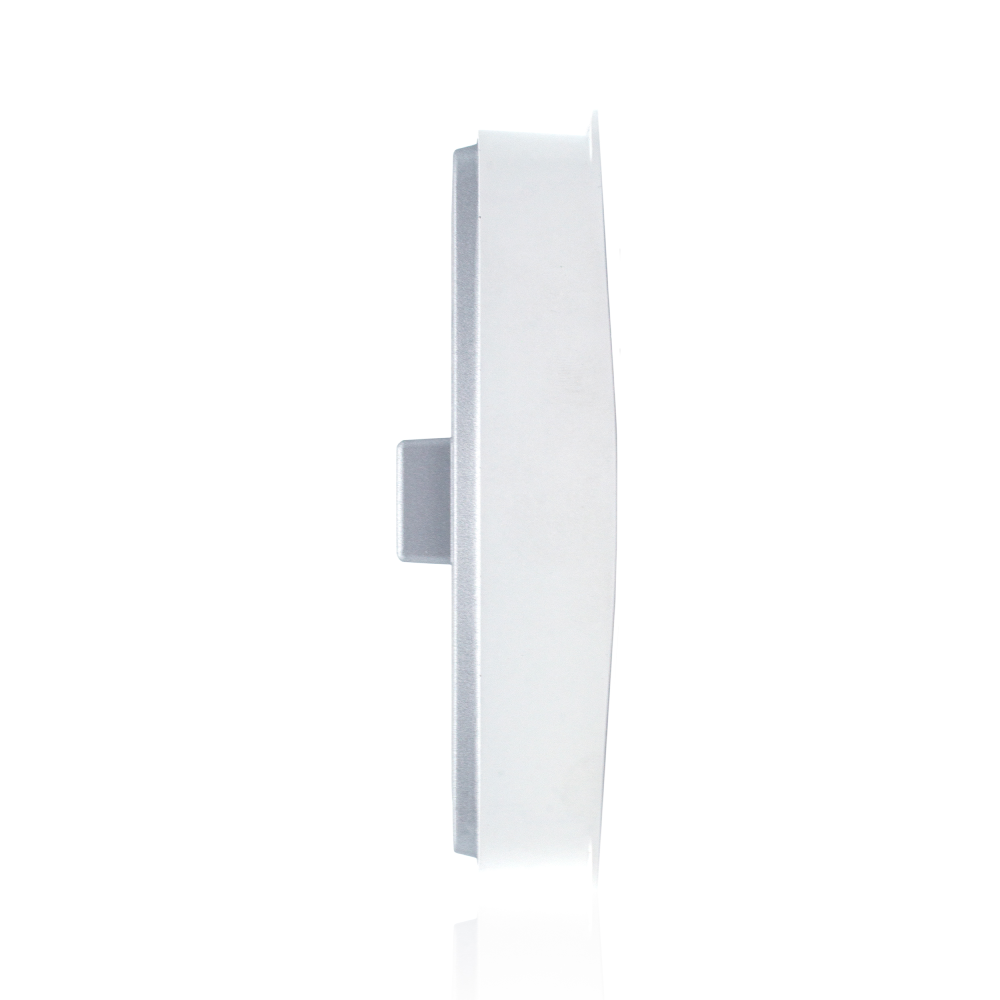

The Alta Labs AP6W 4-Stream Wall Mount Access Point has a compact size and a sleek, aesthetic design that allows it to integrate seamlessly into hospitality environments.
The Alta Labs AP6W 4-Stream Wall Mount Access Point has a compact size and sleek, aesthetic design that allows it to integrate seamlessly into hospitality environments such as hotels, restaurants, resorts, entertainment venues, MDUs (Multi-Dwelling Units), corporate, commercial and residential spaces. Combined with our patented AltaPass™ technology, which allows you to use multiple passwords with one wireless network SSID, you will find that the AP6W is truly the ideal access point for these types of applications.

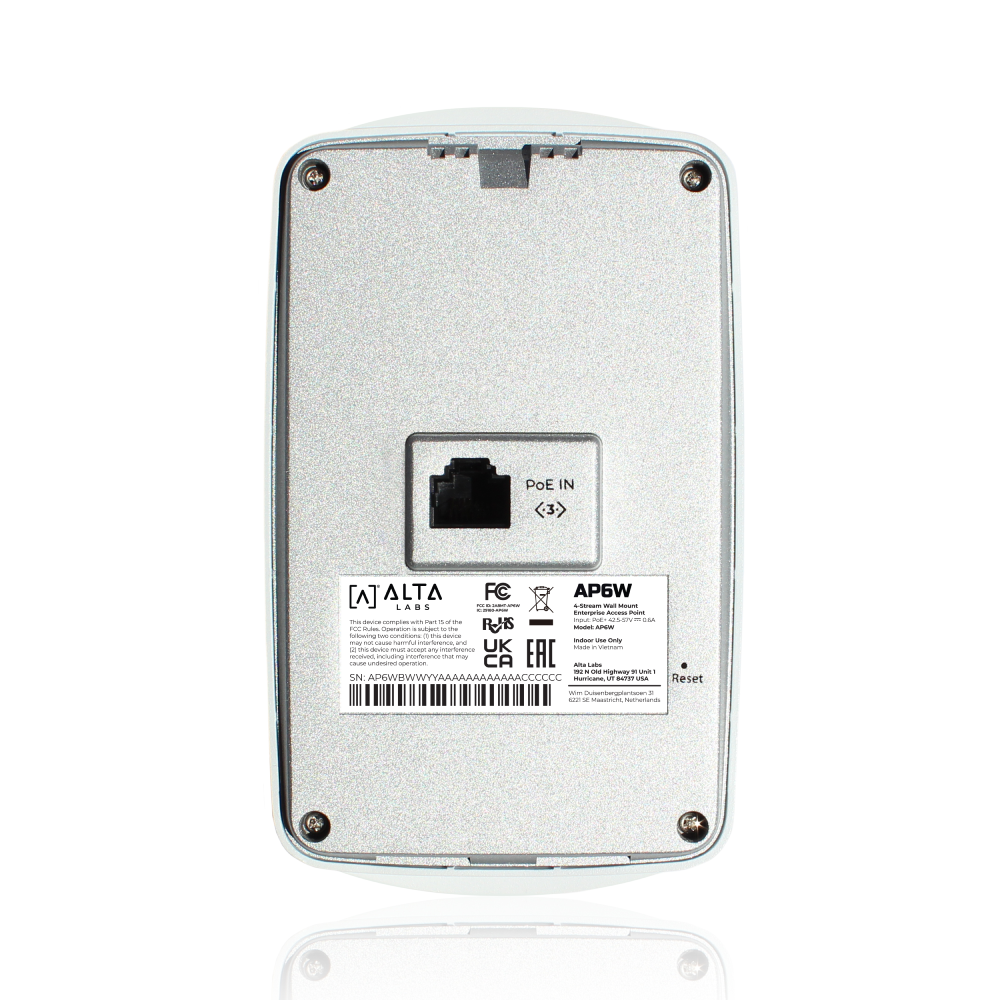

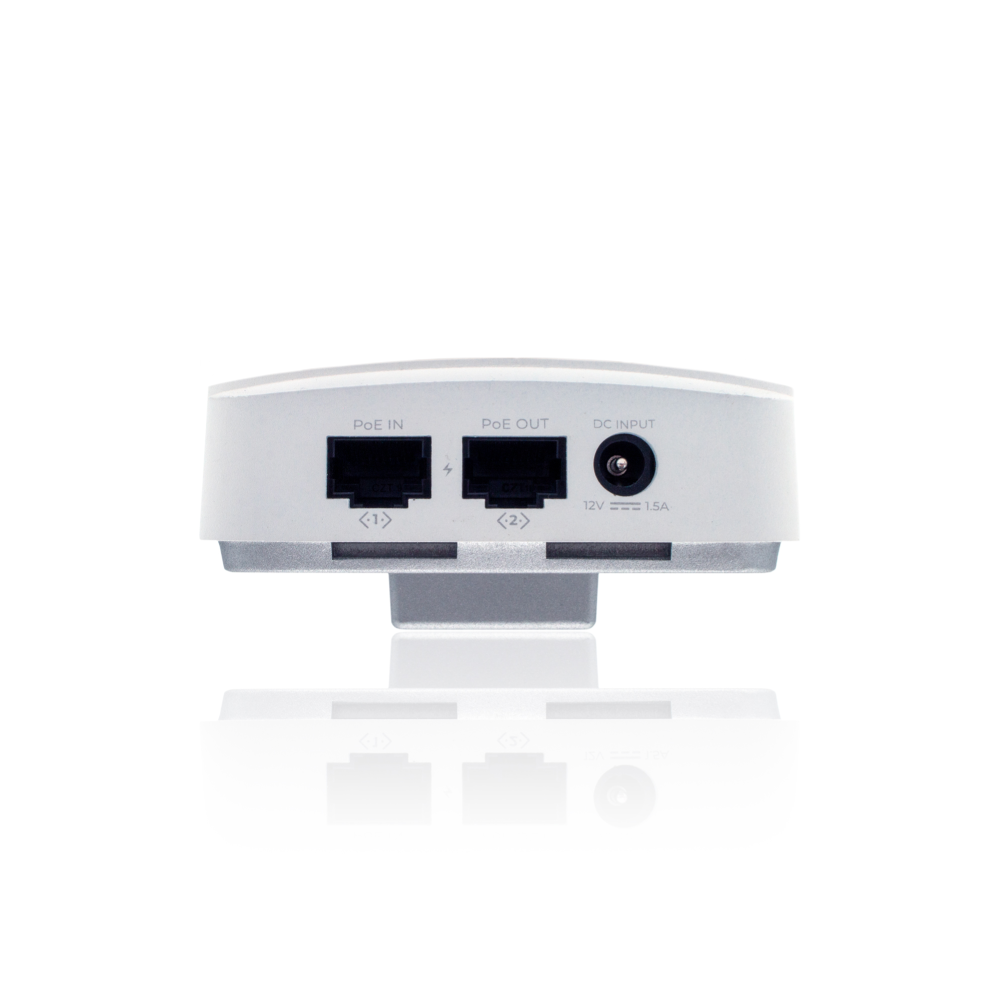

Versatile design - The AP6W can be powered via Ethernet via the PoE In Ethernet port on the back or on the bottom. Alternatively, it can be powered by a 12VDC, 1.5A power supply (not included).
- Versatile design
- Bluetooth installation
- Scalable cloud-based management
- Mobile app
- AltaPass™ technology for multiple passwords
- Advanced Filtering - DPI Engine
- Hotspot functionality
- On-the-fly changes and scanning
- Color coding for wireless networks
- Flexibility in broadcasting SSIDs.
- Customizable dashboard
- Status Statements
Specifications
| LAN Port | (3) GbE RJ45 Port |
| Power over Ethernet | PoE+ (PoE adapter optional) |
| Wi-Fi Standard | 801.11a/b/g/n/ac/ax, WiFi4/WiFi5/WiFi6 |
| 2.4 GHz Speed | 574 Mbps |
| 2.4 GHz Transmit Power | 20 dBm |
| 5 GHz Speed | 2.4 Gbps |
| 5 GHz Transmit Power | 20 dBm |
| 6.0 GHz Speed | N/A. |
| 6.0 GHz Transmit Power | N/A. |
| Antennas | 2.4 GHz 4.0 dBi, 5 GHz 4.1 dBi |
| Power consumption | 14.2 W |
| Dimensions (HxWxD) | 156.1 x 90 x 43.9 mm |
| Weight | 0.3 kg |
| Warranty | 2 years |
| Scope of delivery | AP6W, Mounting Accessories, Manual |
