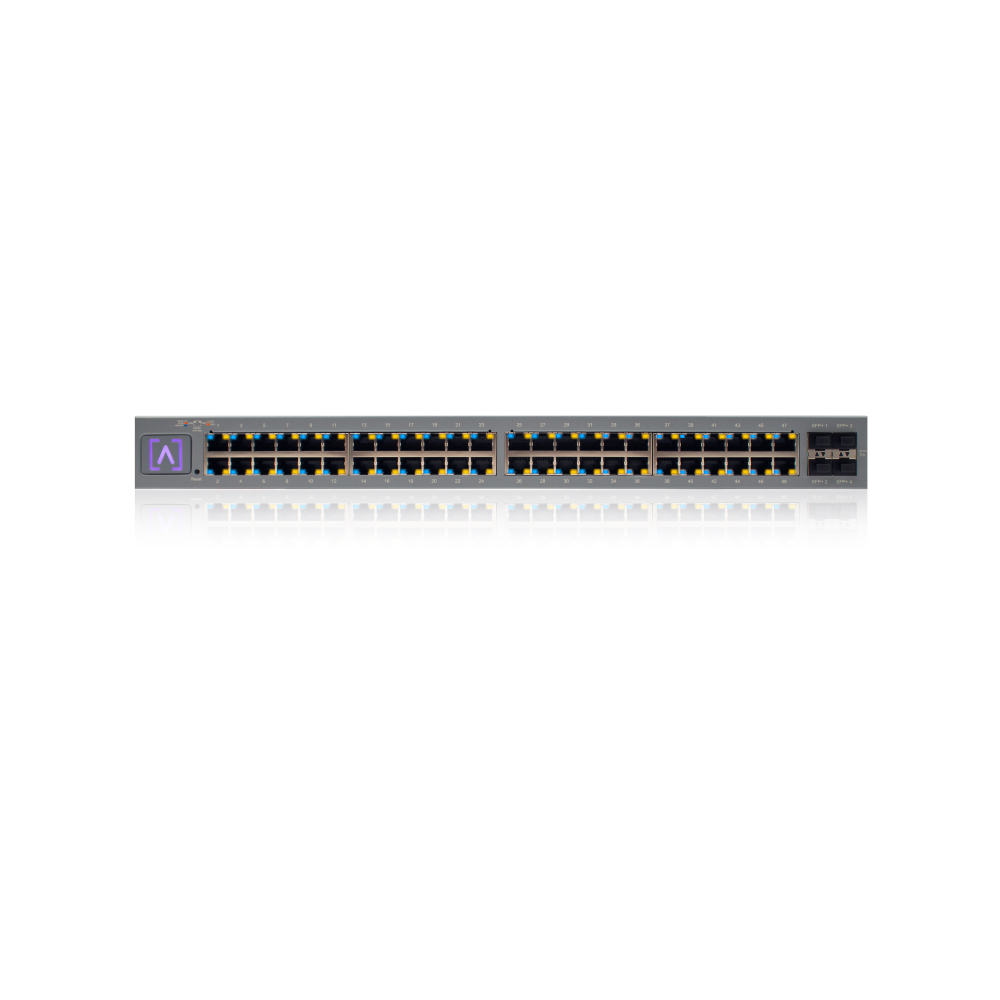

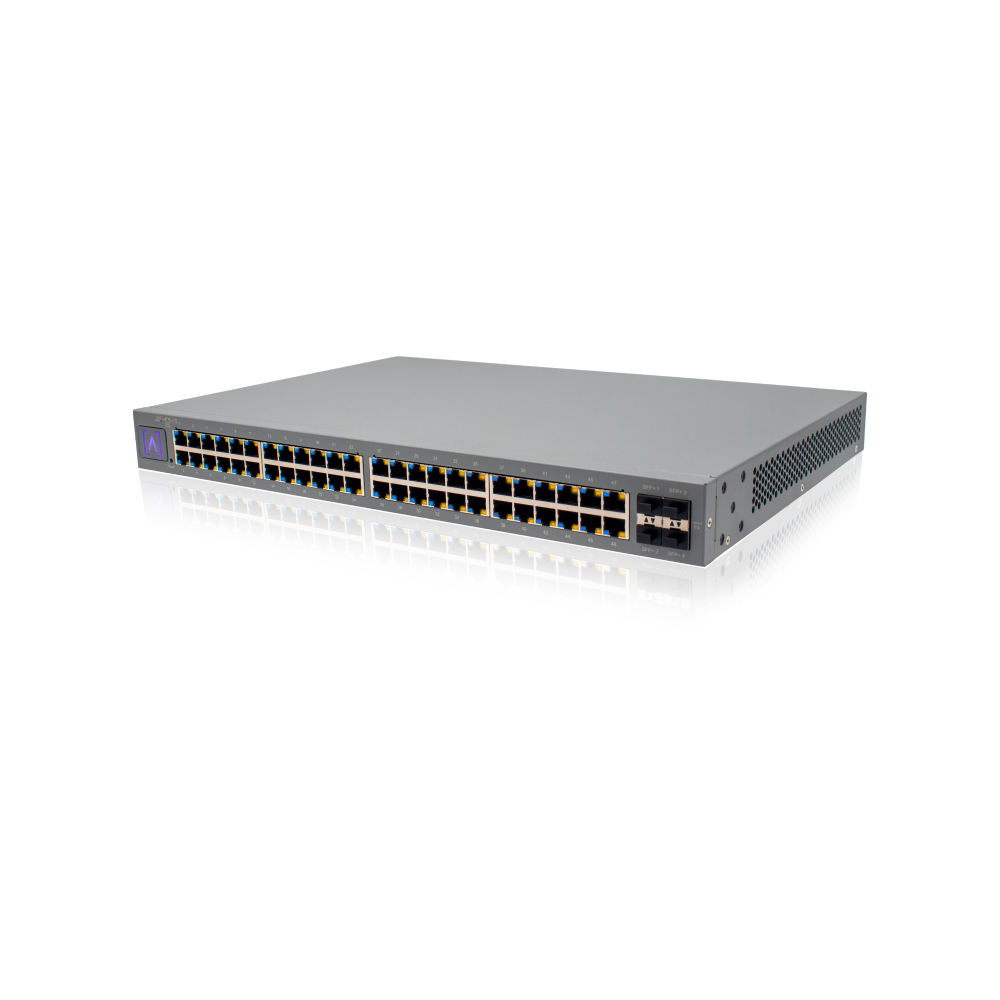

Alta Labs S48-APOE
The Alta Labs S48-APOE provides full PoE+ connectivity on all 48 ports. It has a PoE budget of 740 watts and delivers up to 30 watts of power per port.
The first 32 Ethernet ports support connections up to 1 Gbps, while the last 16 Ethernet ports support connections up to 2.5 Gbps.
Features
- Full Power Over Ethernet
- VLAN Stacking
- 740W PoE Budget
- Scalable Cloud-Based Management
- (4) 10 Gbps SFP+ Ports
- Mobile App
- (16) 2.5 Gbps Ethernet Ports
- Egress and Ingress Rate Limiting
- (32) 1 Gbps Ethernet Ports
- IGMP Snooping
- Bluetooth Setup
- 802.1X Authentication
4 SFP+ ports supporting speeds up to 10 Gbps
The S48-APOE switch provides four SFP+ ports for high-capacity fiber or copper connections of 1 Gbps, 2.5 Gbps, 5 Gbps or 10 Gbps.
Bluetooth installation
The Alta Labs switches feature Bluetooth functionality, allowing for seamless installation using the Alta Networks mobile app.
Versatile mounting

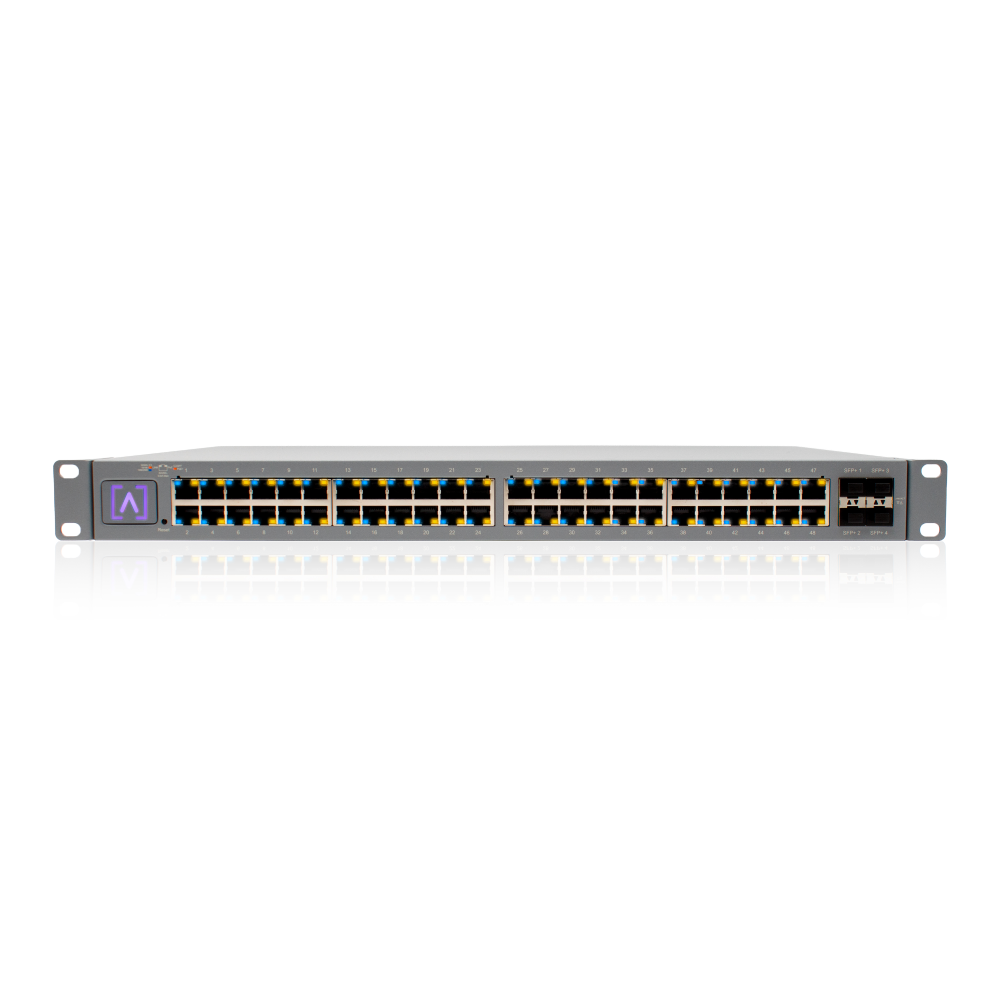

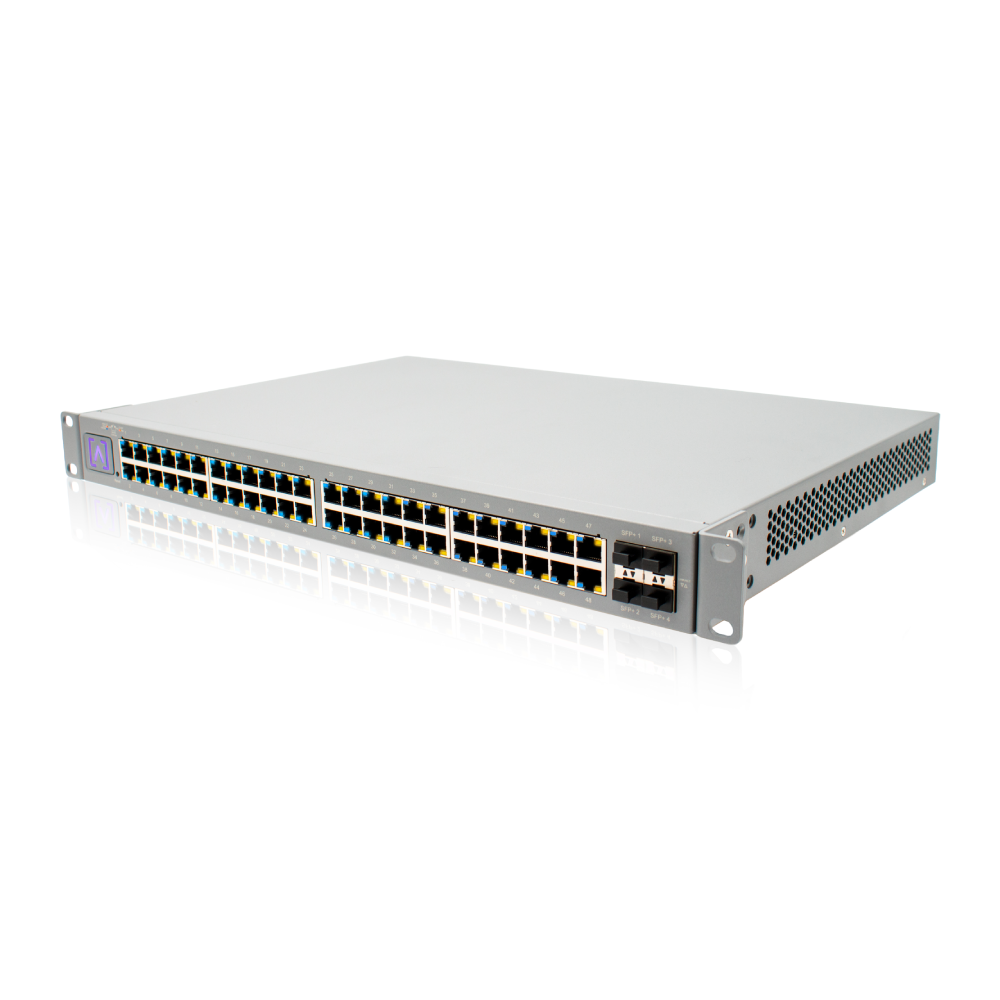

Alta Labs' switches come with rack brackets that can be positioned for use in a rack or for wall mounting.
Scalable cloud-based management
Alta Labs provides an intuitive and easy-to-use cloud-based management interface for managing Alta Labs devices. The platform is included with your purchase of Alta Labs hardware. Designed for optimal scalability using a high-availability architecture for ultimate convenience and global accessibility.
Specifications
| Network Interface | (48) 10/100/1000/2500 Mbps / (4) SFP+ |
| PoE Interface | (48) 802.3at PoE+ |
| PoE Power | 740 Watts |
| Managed/Smart | Scalable Cloud-Based Management |
| VLAN Support | VLAN Stacking |

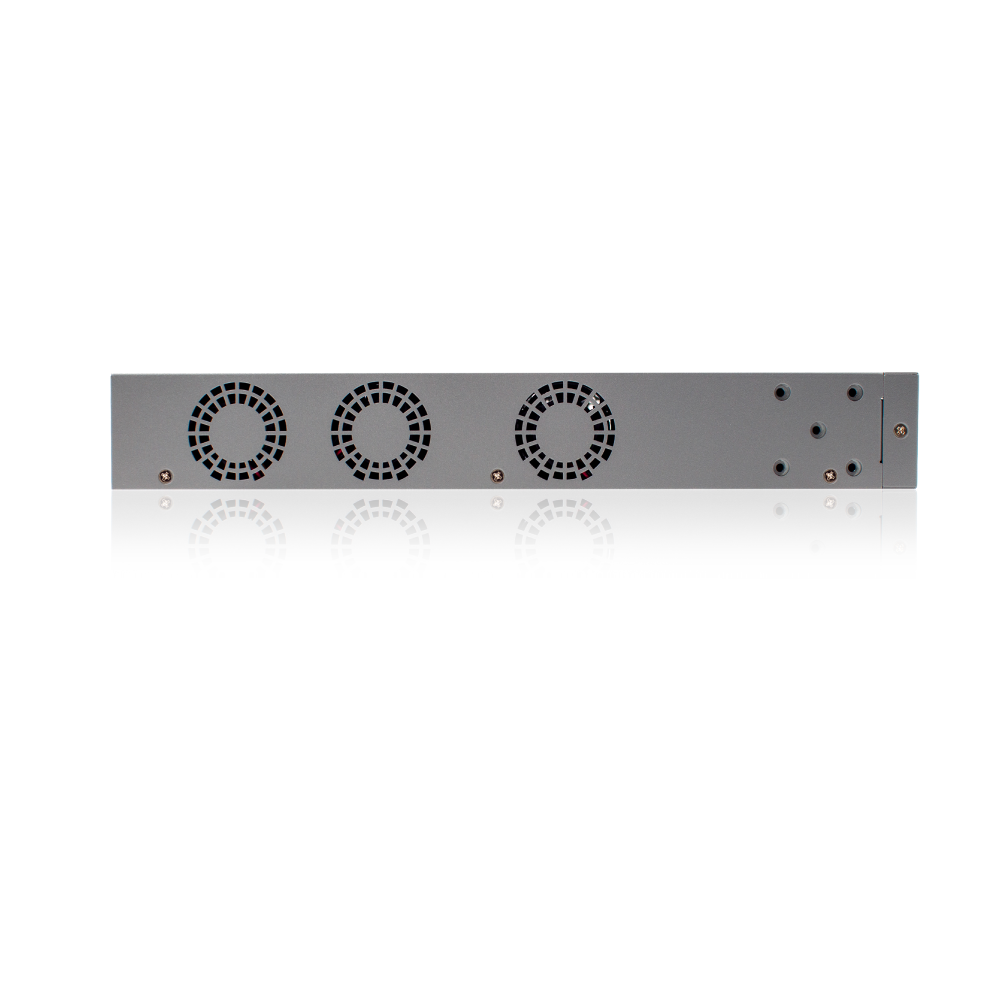

| Noise level | Yes (Cooling Fan) |
| Power consumption | Not available |
| Dimensions (HxWxD) | 44 x 440 x 310 mm |
| Weight | 4.99 kg |
| Warranty | 2 years |
| Scope of delivery | S48-APOE, Mounting accessories, Power cable, Manual |
