Alta Labs AP6

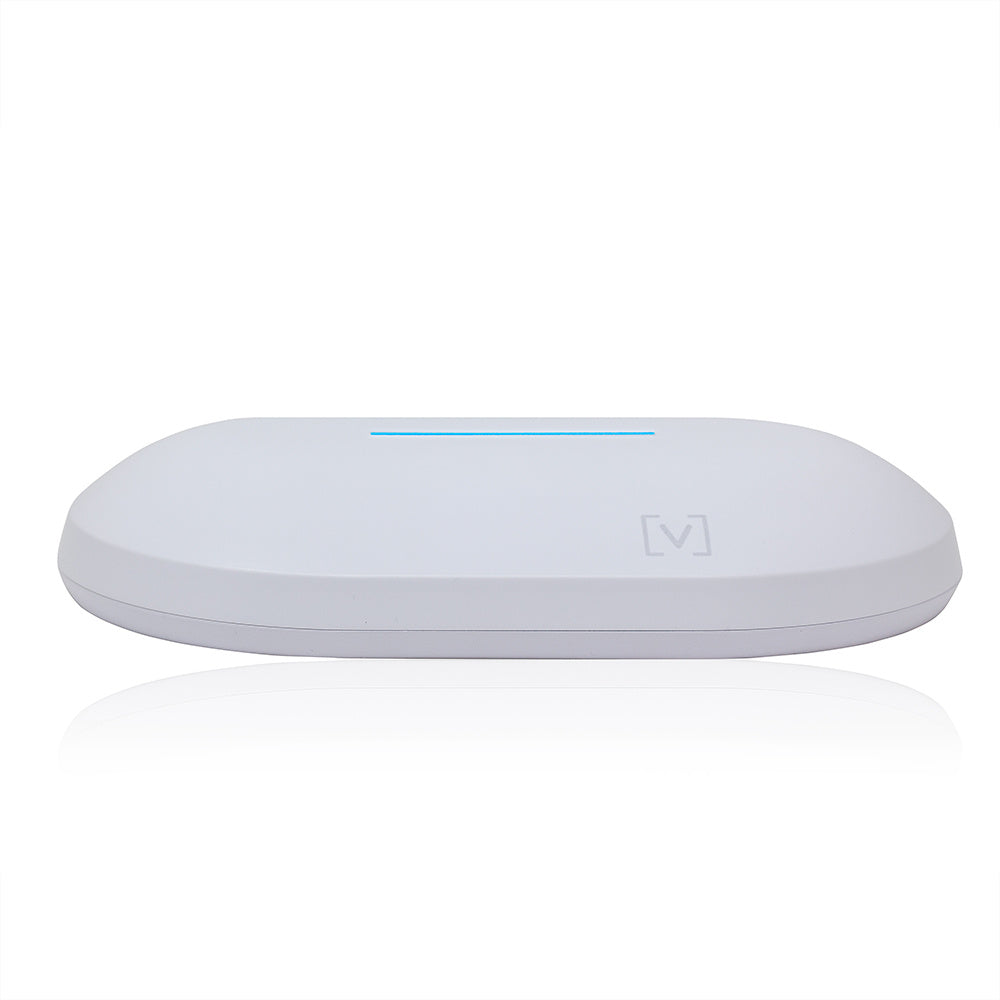

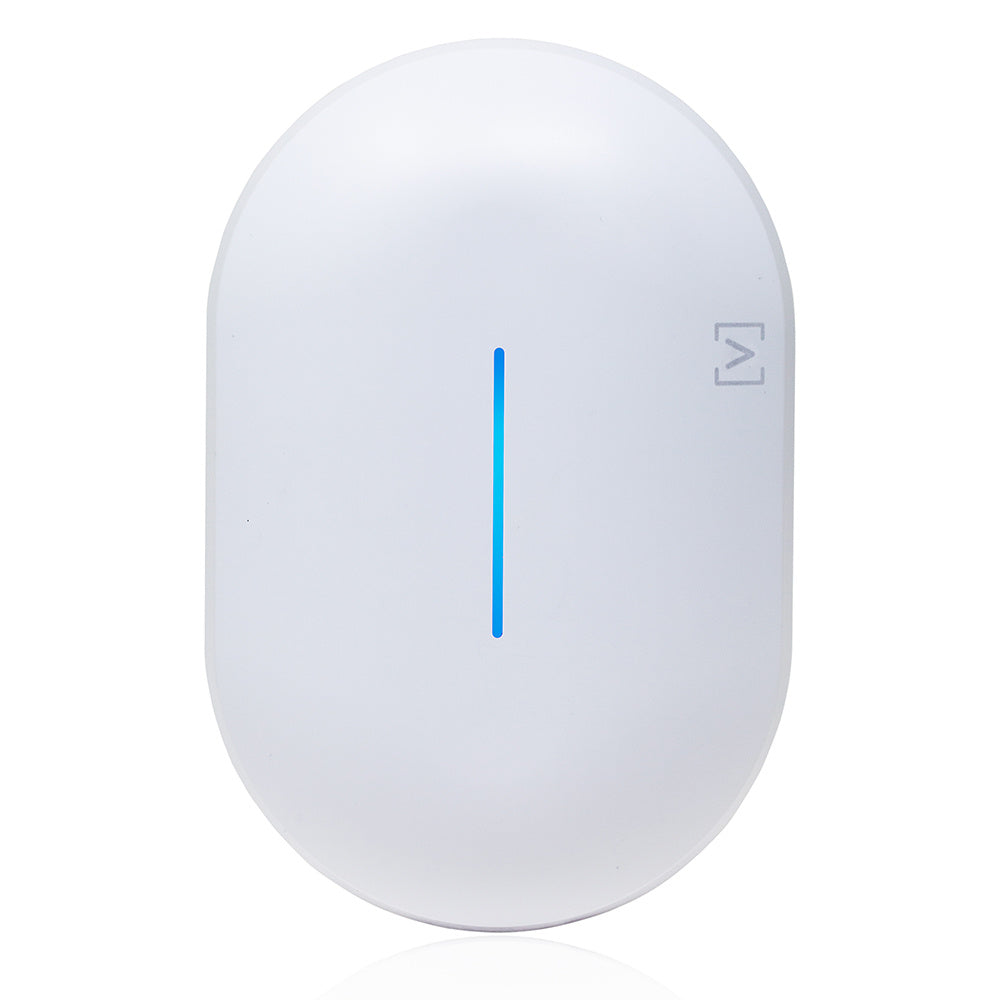

The Alta Labs AP6 Access Point features a compact form factor and slim aesthetic design that allows seamless integration into business, commercial and residential environments. The AP is powered via Power over Ethernet for easy, neat installation. Versatile mounting hardware is included with patented QuickMount™ technology for quick, easy installation.
Features
- Superior range and performance
- Scalable cloud-based management
- Application for mobile phone
- High quality WiFi 6
- Multi-Password Authentication
- DPI engine
- Hotspot functionality
- On-the-fly changes and scanning
- Wireless Network Color Coding
- Flexibility for SSID broadcasts
- Customizable dashboard
- Status Snapshots
- Device Cards
Note: A PoE injector is required to power the device, which can be purchased separately. Alternatively, you can use a switch with 802.3at PoE+ support.
Specifications
| Dimensions (HxWxD) | 190 x 125 x 32 mm |
| Weight | 0.4 kg |
| Warranty | 2 years |

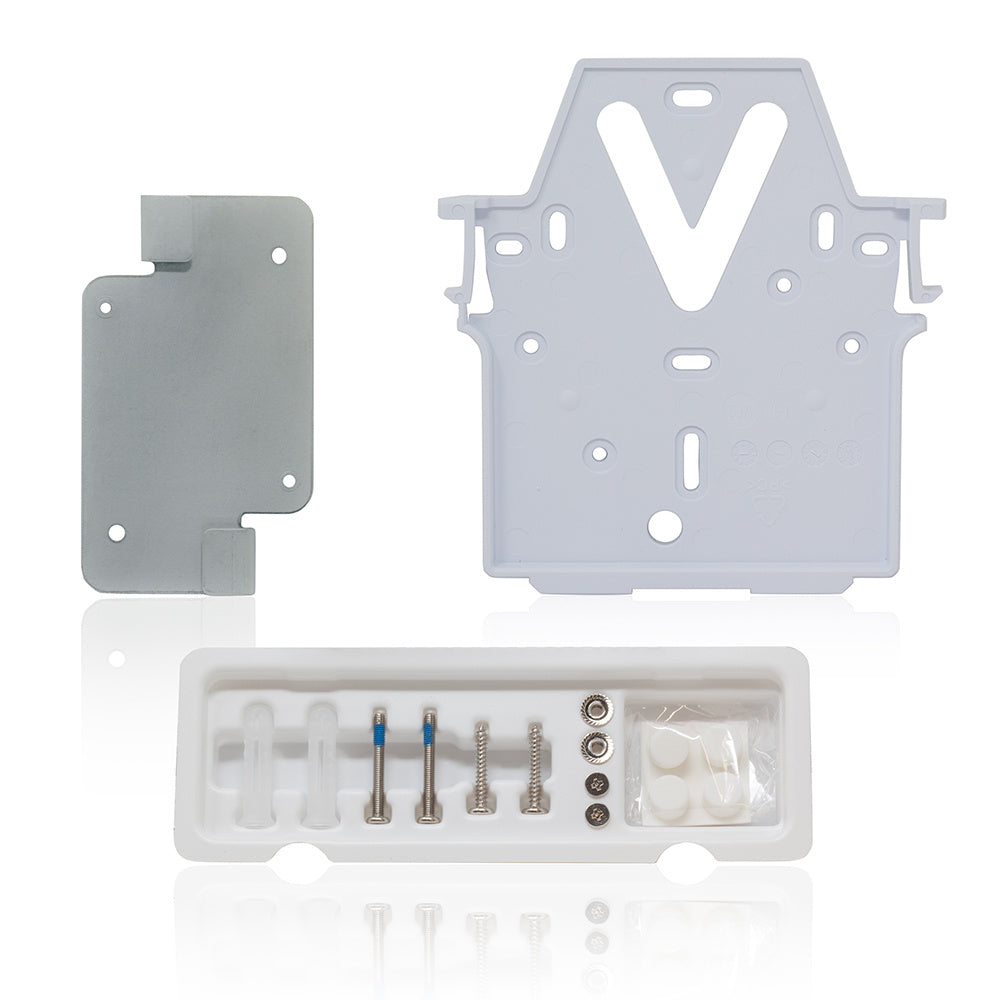

| Scope of delivery | AP6, Mounting plate, Ceiling mounting, Anchors (2), Wall mounting screws (2), Ceiling tile screws (2), T-bar screws, Nuts, Rubber feet |
| LAN Port | (1) GbE RJ45 Port |
| Wi-Fi Standard | 801.11a/b/g/n/ac/ax, WiFi4/WiFi5/WiFi6 |
| 2.4 GHz Speed | 573 Mbps |
| 5 GHz Speed | 2.4 Gbps |
| 2.4 GHz Transmit Power | 23 dBm |
| 5 GHz Transmit Power | 23 dBm |
| Antennas | 2.4 GHz 4 dBi, 5 GHz 4.1 dBi |
| Power consumption | max. 20W |
| Power over Ethernet | PoE+ (PoE adapter optional) |
| 6.0 GHz Speed | N/A. |
| 6.0 GHz Transmit Power | N/A. |
