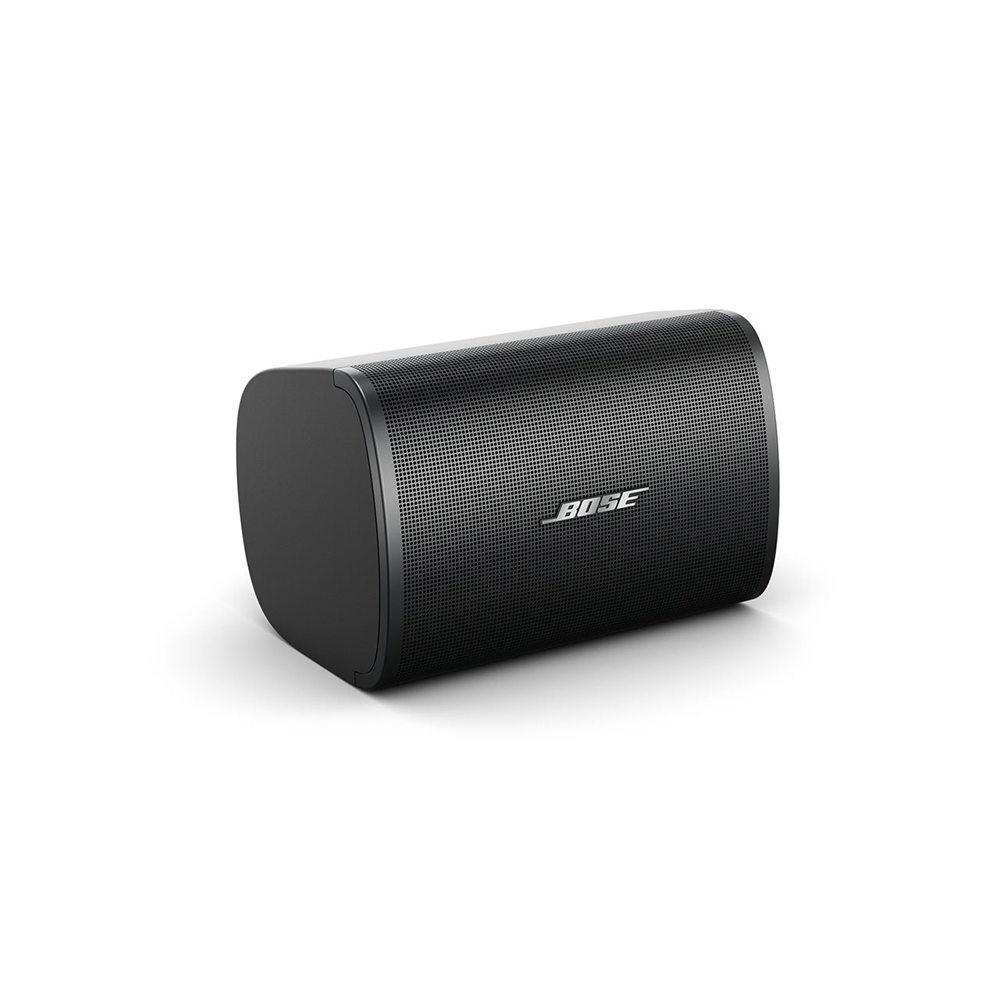

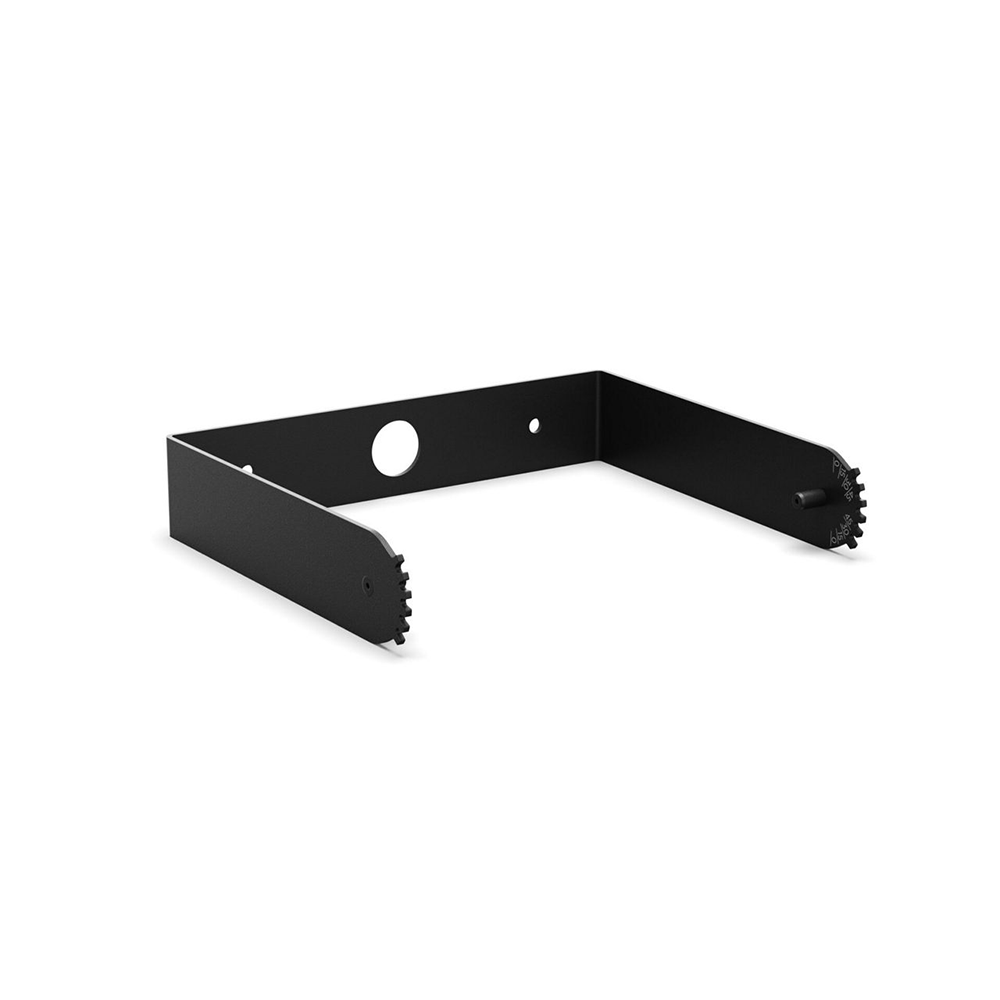

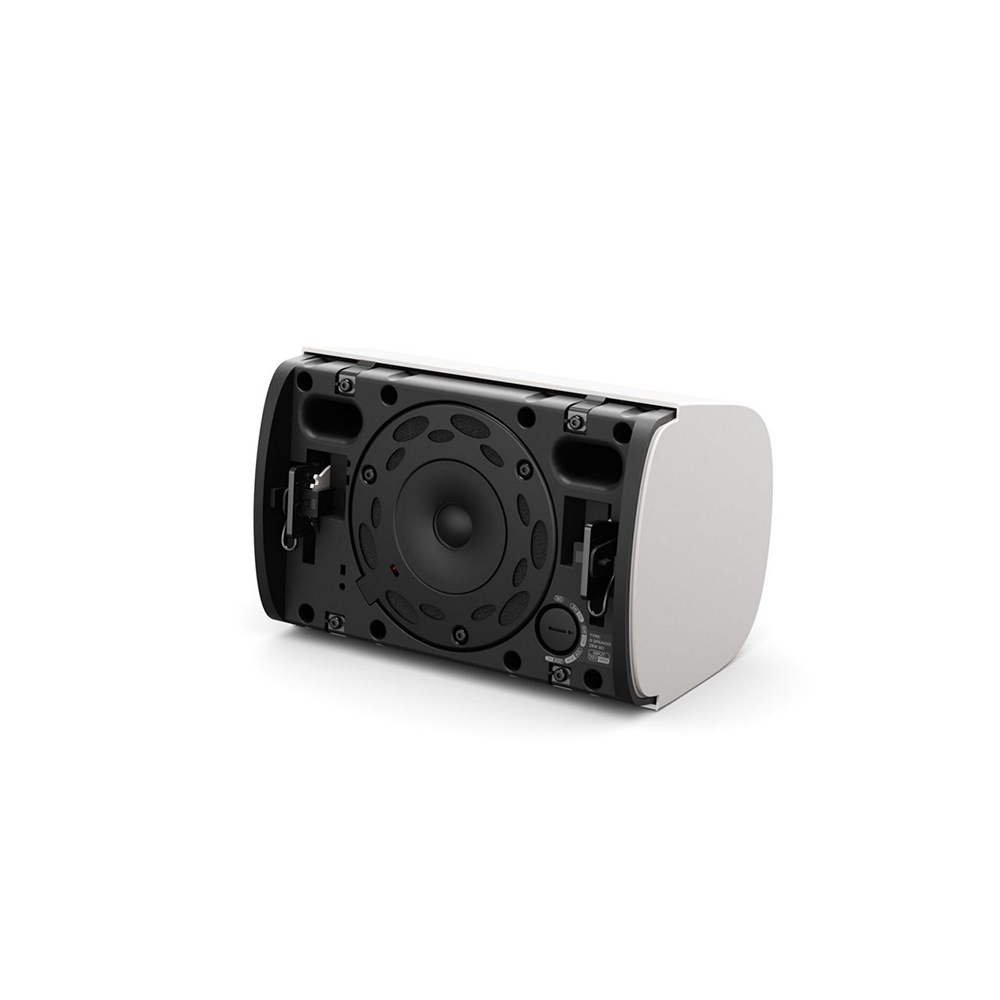

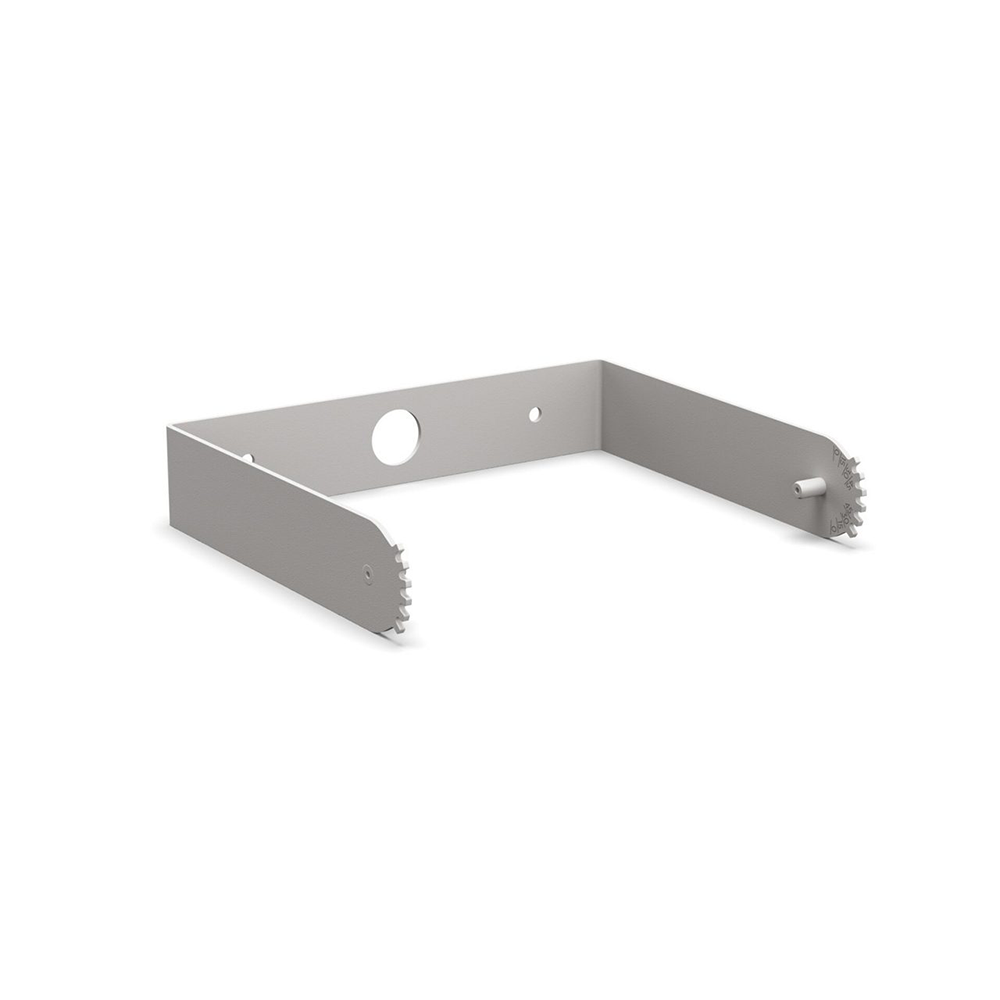

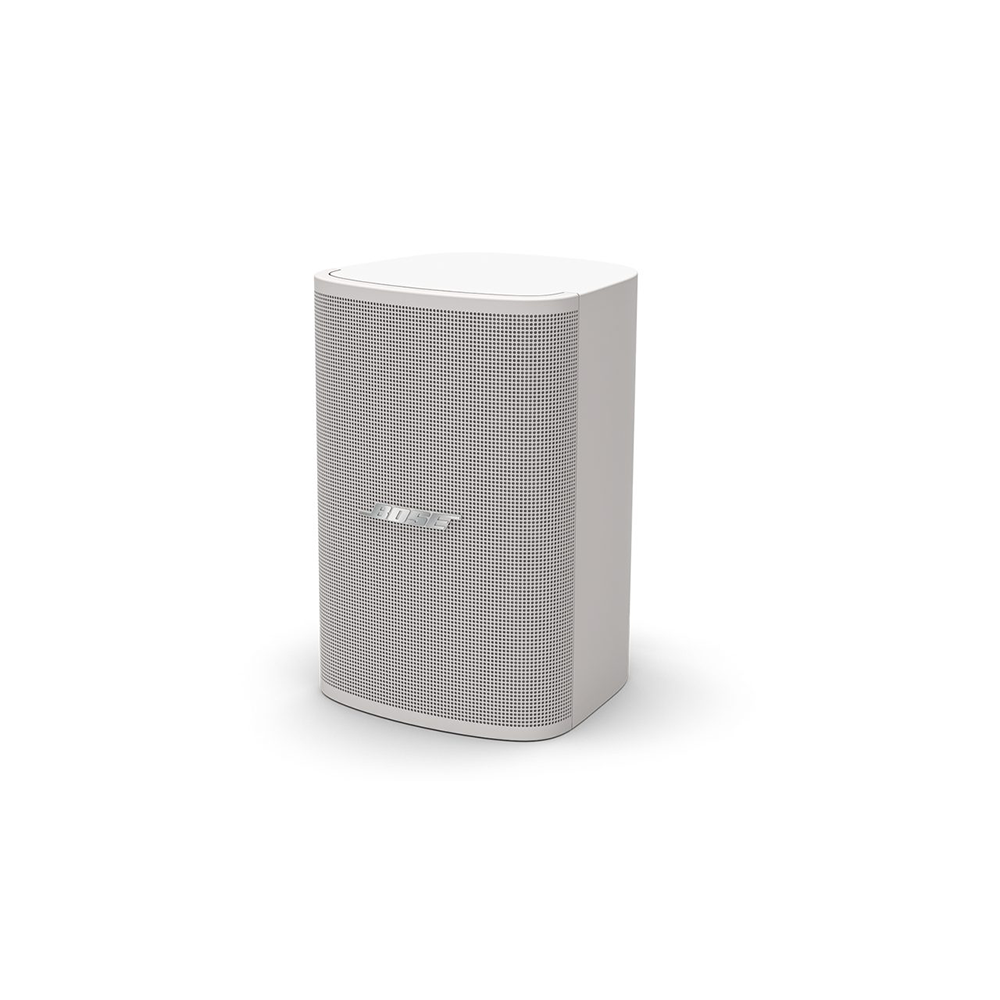

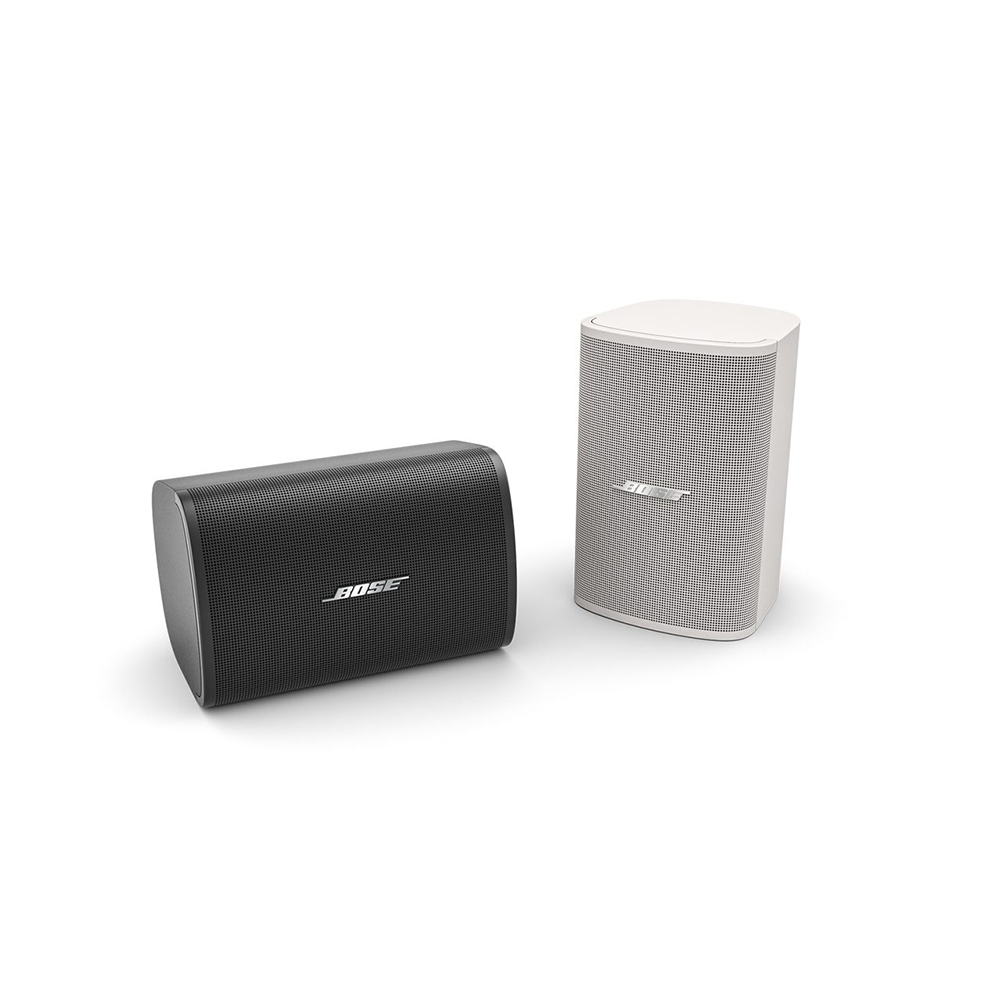

Featuring two-way coaxial drivers, the 30-watt DesignMax DM3SE loudspeaker delivers clear, intelligible highs and surprising bass for its size—along with a premium aesthetic that will complement any commercial sound system. The DM3SE features a 3.5-inch two-way woofer and a 0.75-inch coaxial tweeter mounted in the Dispersion Alignment system, for a frequency response of 75Hz–20kHz. The DM3SE is surface-mounted, IP55-rated outdoors, and locks to a concealed QuickHold U-bracket for quick and secure installation.
Sensitivity | 86dB |
Impedance | 8Ω |
Frequency Range | 85Hz - 20kHz |
Dimensions (HxWxD) | 232 × 154 × 155 mm | 232 × 154 × 171 mm (with bracket) |
Bass Reflex | N/A. |
Warranty | 24 Months |
Weight | 2.5 kg |
Tweeter | 1 × 20 mm (0.75 in) neodymium dome tweeter, coaxially mounted, weather resistant |
Woofer | 1 × 83 mm woofer (3.25 in), weather resistant |
Recommended Amplifier Power | 30 - 120 W |
