JDS Labs Synapse Max

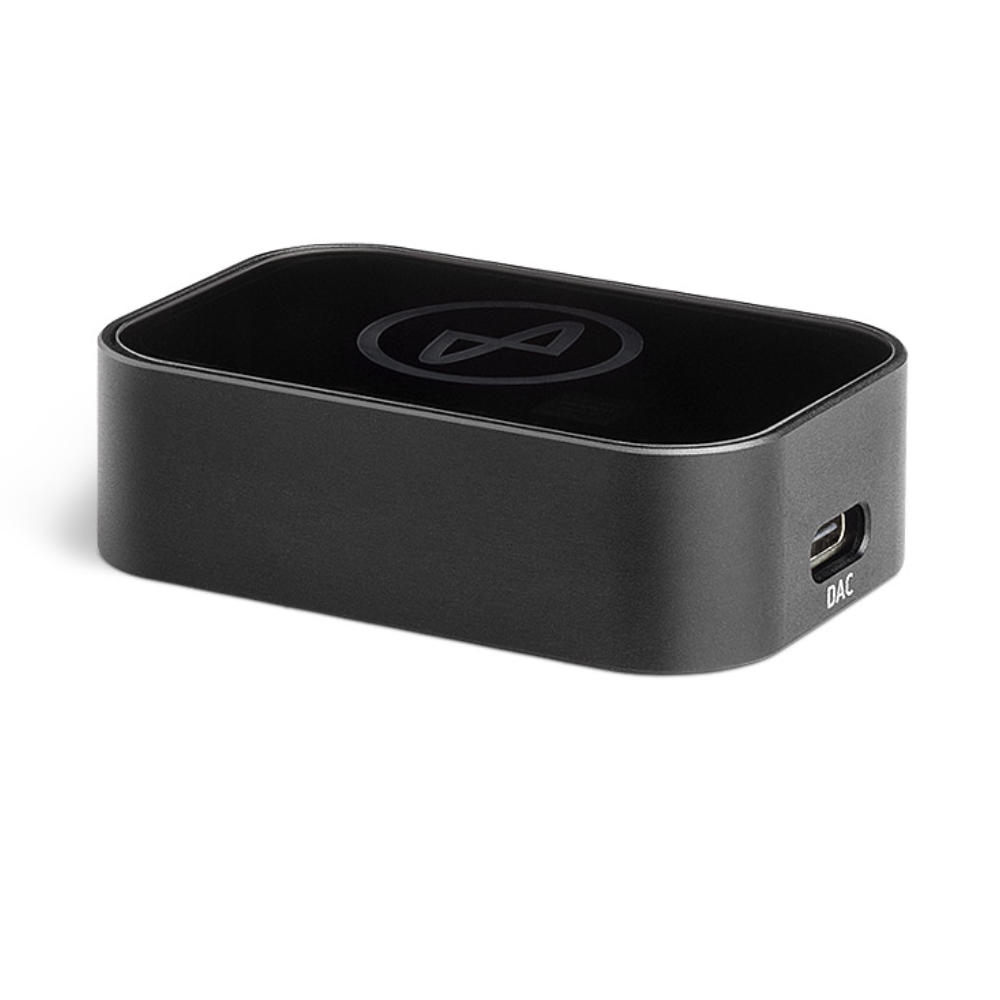

The JDS Synapse Max is a UAC2-compatible galvanic isolator with 10 times more output power than Synapse. It is designed to eliminate ground loop noise from bus-powered audio interfaces and DACs without compromising USB sampling frequencies. The ISOUSB211 improves performance by compensating for USB signal loss and optimizing the USB timing diagram, while delivering super-clean, transformer-isolated power to your DAC, mixer, interface, or other UAC2 device. The Synapse Max features USB C inputs and outputs and is housed in a sleek, CNC-machined aluminum enclosure with a glass top. For your convenience, Synapse Max comes with all the accessories you need to connect to standard USB ports.
480 Mbps USB speed
The Synapse Max transmits equalized, Hi-Speed USB data at 480 Mbps and fully supports UAC2 audio devices.
Galvanic isolation
The Synapse Max completely isolates your audio equipment from your PC and delivers up to 1000 mA of USB power via its low-noise, transformer-isolated LDO.
Eliminates earth loop
No optical input? No worries! Synapse Max effectively eliminates ground loop noise from peripheral devices such as active monitors, for a pure audio experience.
1A USB power
The Synapse Max delivers 10 times more power than Synapse, allowing you to isolate demanding, bus-powered audio interfaces, DACs, and DAPs.
