TP-Link TL-SG2210P

TP-LINK TL-SG2210P

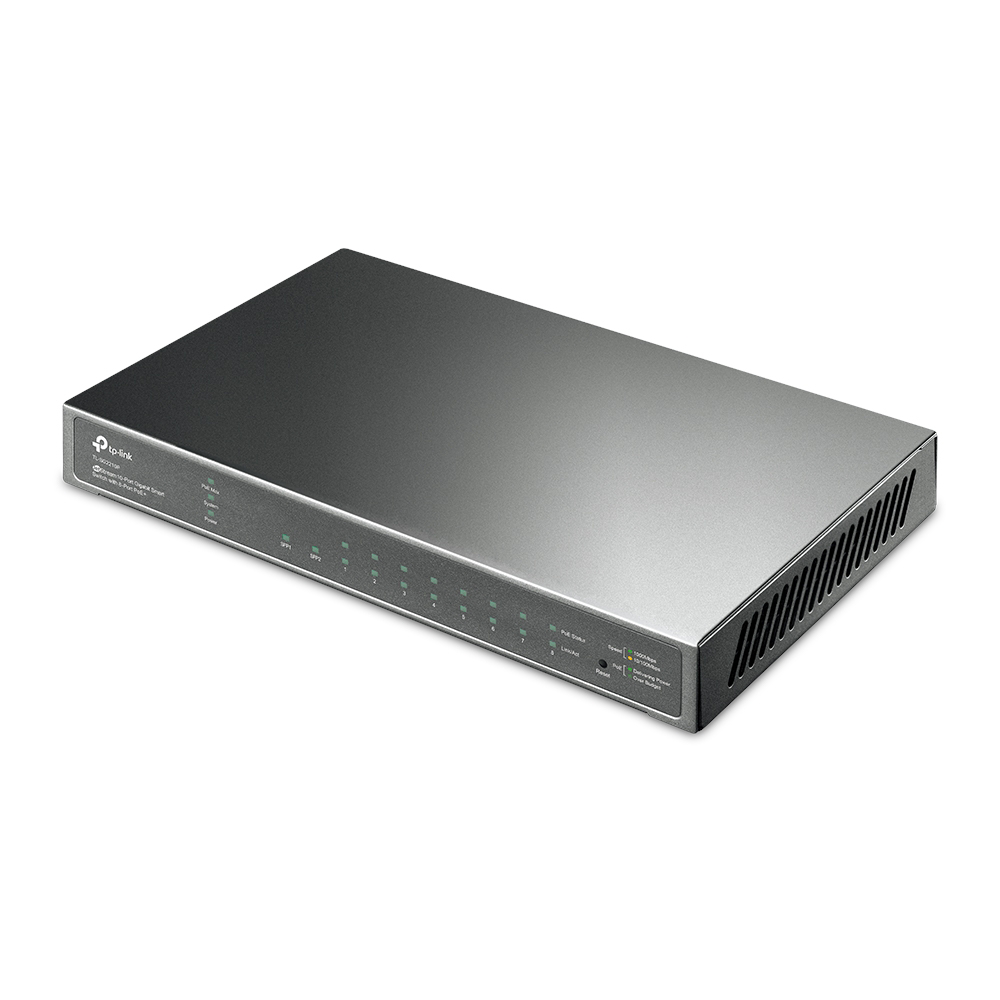

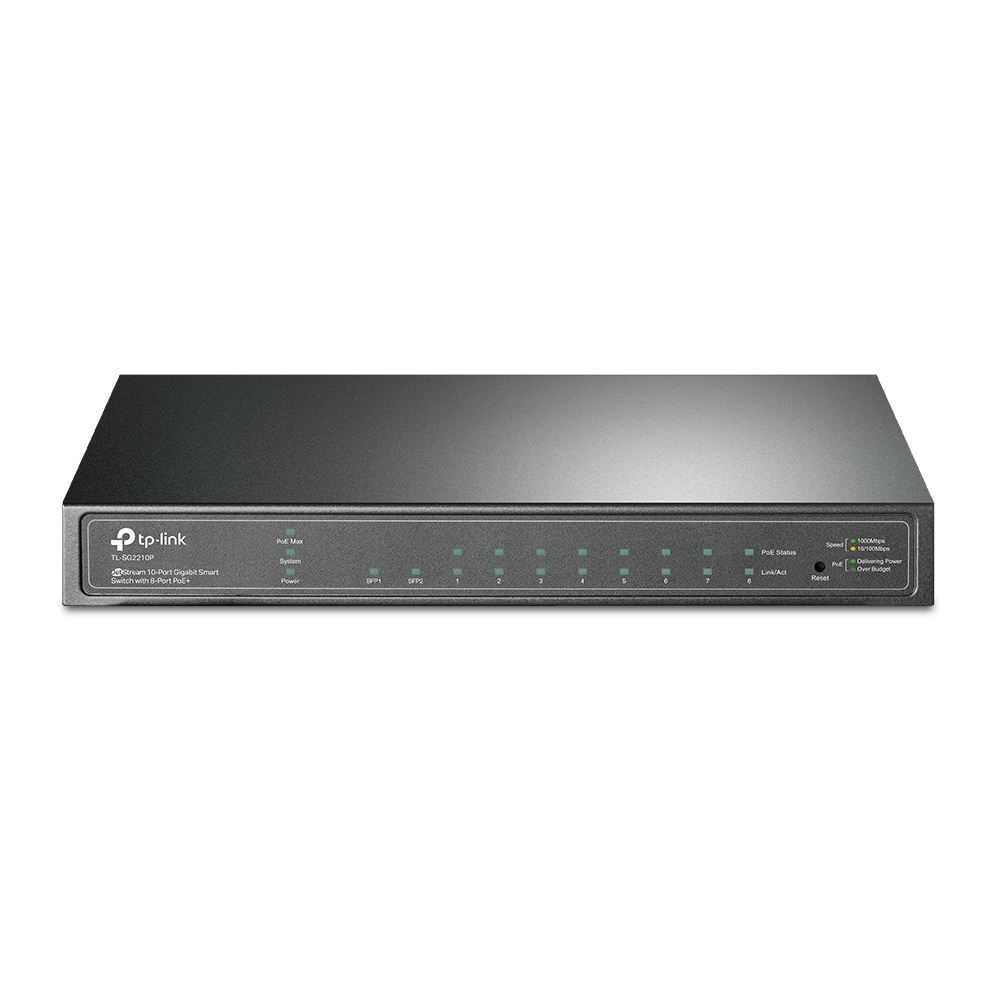

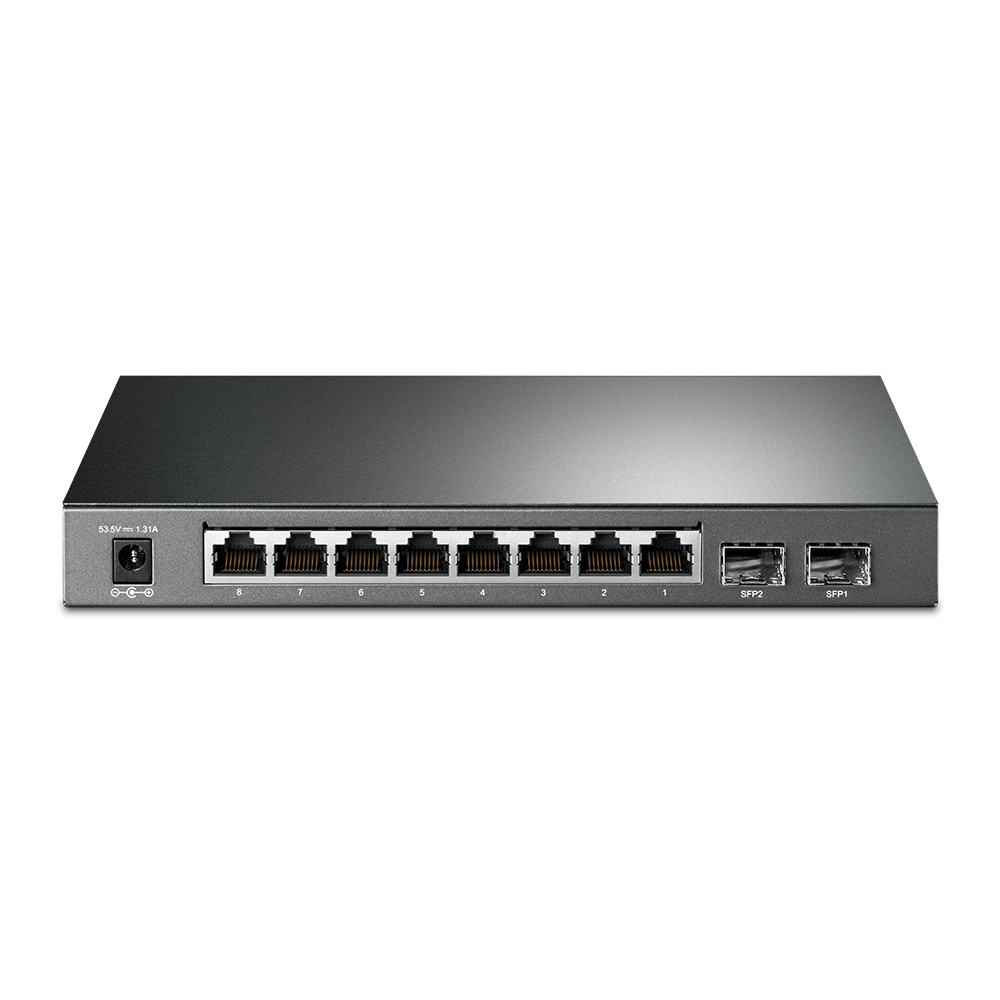

TP-LINK's Gigabit Smart Switch TL-SG2210P is equipped with 8 gigabit RJ45 connections and 2 SFP slots. All RJ45 connections support the PoE standard with a total PoE power budget of 53 W and practical PoE power management features. The switch delivers high performance, enterprise-level QoS, practical security strategies and comprehensive layer 2 management features. TP-LINK's Gigabit Smart Switch TL-SG2210P is specifically designed for SMB networks that need efficient network management. The TL-SG2210P boasts a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service (QoS L2 through L4), Storm Control and IGMP Snooping, so the SMB can have a network that is ready for growth while ensuring performance and reliability. In addition, the easy-to-use Web management interface means that setup and configuration can be done faster, providing you with the ideal solution for your business network.

IEEE 802.3af compliant Power over Ethernet

The TL-SG2210P supports 8 ports with IEEE 802.3af-compliant PoE and provides a total power supply of 53 W for 802.3af-compliant devices. It is an efficient and economical choice for the use of wireless access points, surveillance cameras, IP phones and other PoE-compliant devices, eliminating the need for mains cables or additional cabling. The TL-SG2210P is flexible and ideal for PoE deployment for wireless access points or IP-based network surveillance cameras for projects or smaller enterprise networks.

Advanced QoS features

To integrate voice, data and video services into a single network, the switch uses comprehensive QoS policies. The administrator can assign traffic priority using various means, including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always transmitted razor sharp, smoothly and without interference. Combined with Voice VLAN, the switch ensures that voice applications run much more smoothly.

Extended Layer 2 features

For more extensive application of layer 2 switches, the TL-SG2210P supports a complete set of layer 2 features, such as 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. In addition, the switch offers advanced network maintenance features. For example, Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures that the switch intelligently forwards the multicast stream only to the appropriate subscribers, while IGMP throttling and filtering restrict each subscriber at the port level, preventing unauthorized multicast access.

Enterprise-level management functions

The TL-SG2210P is easy to use and manage. It supports several user-friendly standard management features, such as the intuitive Web-based Graphical User Interface (GUI) or the industry-standard Command Line Interface (CLI). With support for SNMP (v1/2/3) and RMON, valuable status information can be retrieved from the switch and traps can be sent in case of abnormal events.

• 8 PoE connections, with total PoE power budget of 53 W and practical functions for PoE power supply management
• Gigabit Ethernet connections on all ports for high-speed data transfer
• Integrated security strategies such as 802.1Q VLAN, ACL, Port Security and Storm control protect the LAN environment
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
• WEB/CLI managed modes, SNMP, RMON provide comprehensive management functions
• Innovative, energy-saving technology saves up to 50% energy
