Ubiquiti UniFi 6 In-Wall
The UniFi 6 In-Wall (U6 IW) is a dual-band, wall-mounted access point with (4) GbE RJ45 ports that brings plug-and-play WiFi 6 to your home or office. One of the U6 IW's ports also supports PoE output, so you can connect and power an Ethernet device. With its 2.4 and 5 GHz WiFi 6 bands, the U6 IW offers a total, over-the-air throughput of 5.3 Gbps, capable of supporting more than 300 clients. The U6 IW is also Bluetooth compatible, so it can be set up in minutes and managed from anywhere via the UniFi Network web application or mobile app.
Features:
- High-efficiency, four-stream WiFi 6 technology
- 5 GHz WiFi 6-band (4x4 MU-MIMO and OFDMA)
- 2.4 GHz WiFi 6 band (2x2 MU-MIMO)

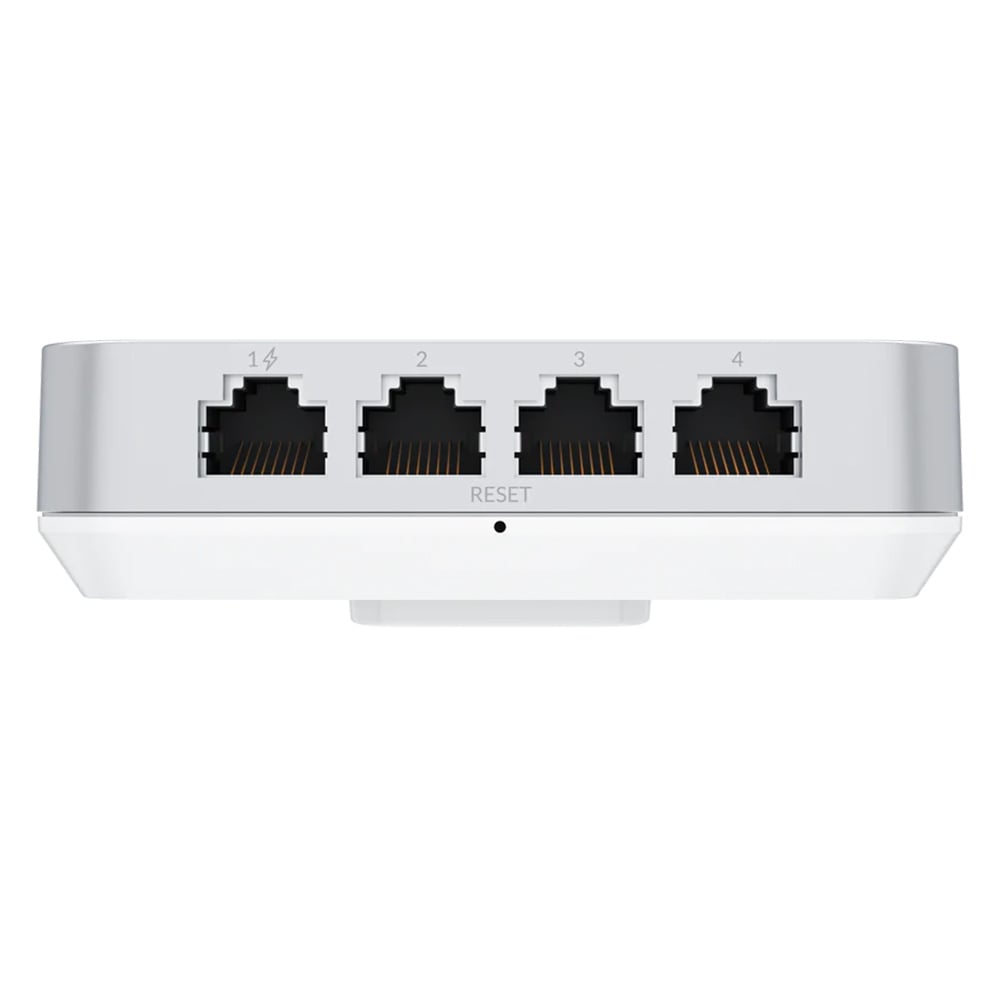

- (4) GbE RJ45 ports, including one supporting PoE output
- 300+ client capacity
- Easy, Bluetooth-enabled setup via the UniFi Network web application or mobile app
Specifications
| Dimensions (HxWxD) | 139.66 x 96 x 31.19mm |
| Weight | 460g |
| Warranty | 24 Months |
| Scope of delivery | Ubiquiti UniFi 6 In-Wall, Mounting hardware, Quick start guide |
| LAN Port | (1) Data-in: 1GbE RJ45 port | (4) Data-out: 1GbE RJ45 ports |
| Wi-Fi Standard | 802.11a/b/g, Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
| 2.4 GHz Speed | 573.5 Mbps |
| 5 GHz Speed | 4.8 Gbps |
| 2.4 GHz Transmit Power | 22 dBm |
| 5 GHz Transmit Power | 26 dBm |
| Antennas | 2.4 GHz 5 dBi, 5 GHz 5.9 dBi |
| Power consumption | Excluding PoE power: 13.5W |
| Power over Ethernet | 1x PoE in (PoE output not used), 1x PoE out (requires a PoE+ switch) |
| 6.0 GHz Speed | N/A. |
| 6.0 GHz Transmit Power | N/A. |
