The AM-1 Architectural Monitor delivers a unique combination of high-quality sound and ultimate flexibility. Versatile weatherproof monitors often produce inferior sound. If not the sleek, exciting, powerful AM-1: it delivers the signature sound quality of Bowers & Wilkins speakers.

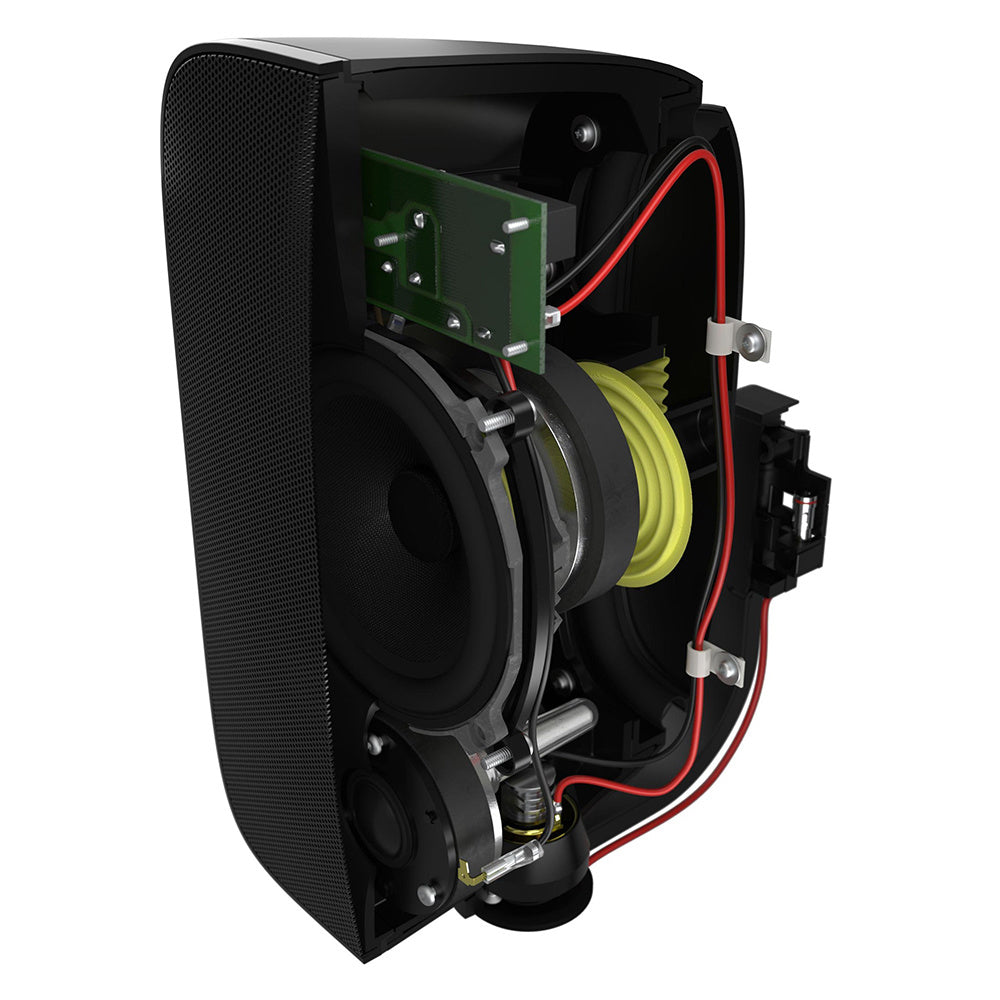

The AM-1's two-way design features an inverted driver unit where a 25mm aluminum dome tweeter is mounted below a fiberglass bass/midrange driver rather than above it. This ensures optimal sound dispersion when the speaker is mounted high on the wall. Bass reproduction is enhanced by a rear-mounted ABR. Thanks to this ABR instead of a regular bass reflex port, the AM-1's bass response is exceptional for a speaker of this size. Furthermore, this makes the AM-1's enclosure weatherproof under all conditions. This combination of advanced driver units, unique configuration and classically simple crossover components results in a speaker that is as musical as it is flexible.

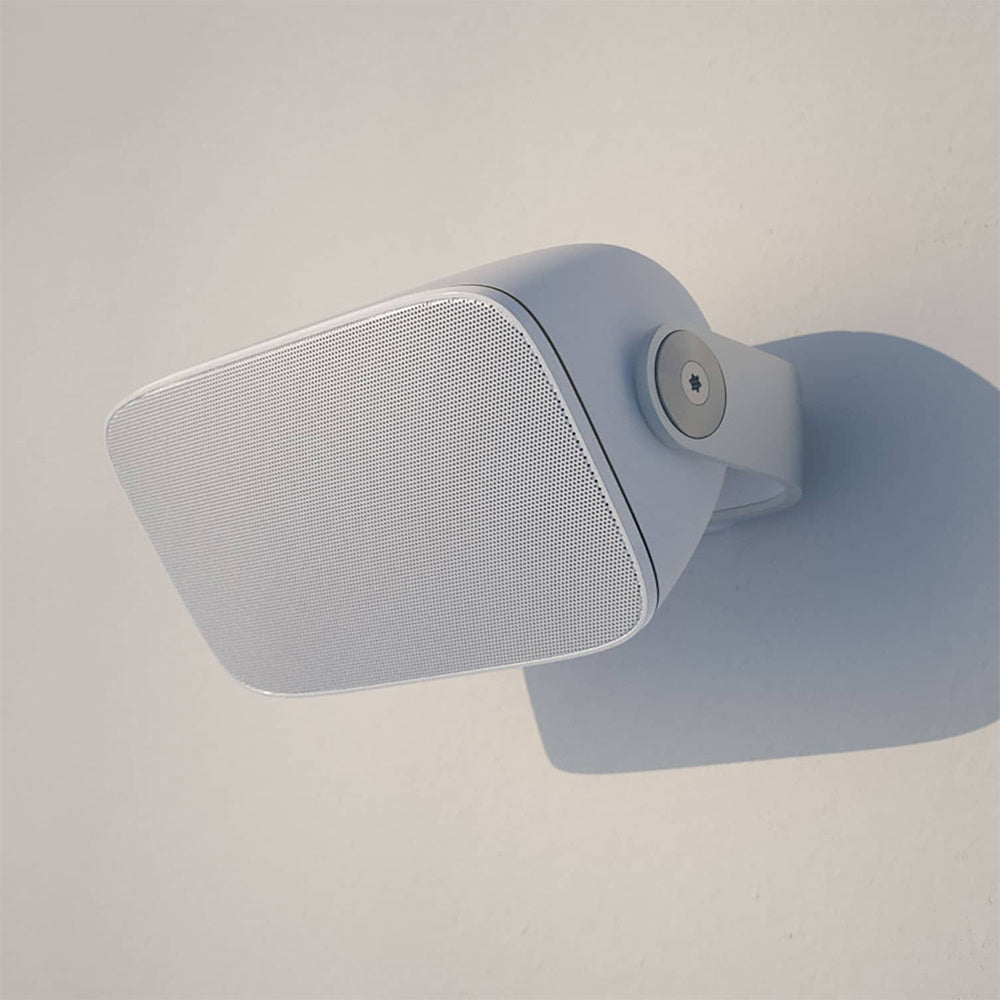

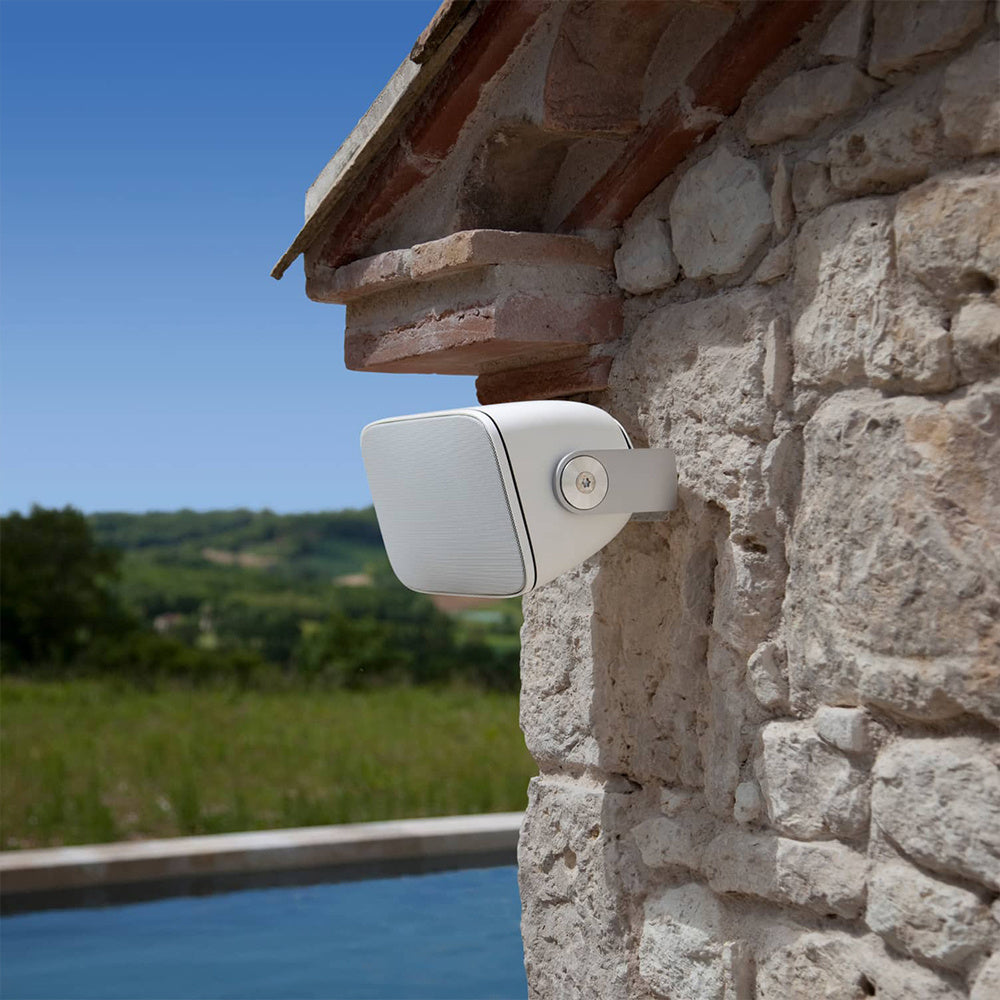

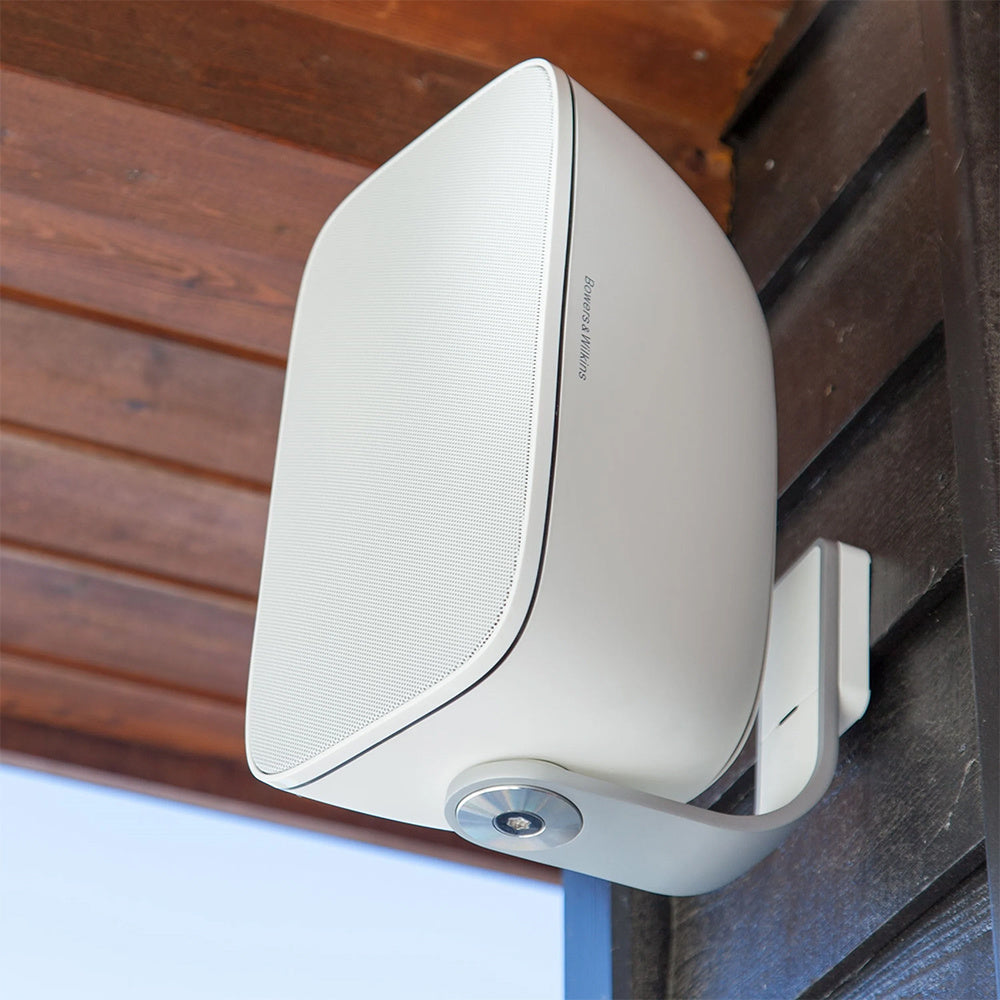

The AM-1 is specially designed and therefore easy to install and exceptionally flexible. It can be placed horizontally or vertically. With a grill made of rust-resistant aluminum and a rigid enclosure made of glass-filled plastic, the AM-1 can withstand extreme exposure to dust, moisture and UV radiation. While clearly particularly suited for outdoor use, the AM-1 is also excellent for placement in shared indoor spaces thanks to its discreet design and impressive performance.
Sensitivity | 86dB (2.83V, 1m) |
Impedance | 8 Ohm |
Frequency Range | 51 Hz - 22 kHz |
Dimensions (HxWxD) | 310 x 180 x 210 mm |
Bass Reflex | Auxiliary Bass Radiator (ABR). |
Warranty | 60 Months |
Weight | 4 kg |
Tweeter | 25mm (1in) aluminum dome high-frequency |
Woofer | 130mm (5in) glass fiber cone bass/midrange |
Recommended Amplifier Power | 20W - 100W |
