iBasso DC07PRO

iBasso DC07PRO

The DC07Pro is an advanced dongle that combines iBasso's expertise in audio design and technology to deliver exceptional performance. With an unprecedented low THD+N of 0.000098%, this device has pushed the boundaries of what is possible in audio processing. The DC07Pro features advanced dynamic range and power output, making it a standout in its class.

At its core, the DC07Pro features iBasso's proprietary FPGA technology, which integrates audio algorithms and system control. The FPGA plays a crucial role in signal regeneration and clock synchronization, generating ultra-low jitter clocks for the DAC and USB receiver to reduce clock jitter caused by the USB bus.

The unit features four Cirrus Logic CS43131 DAC chips, combined with iBasso’s exclusive FPGA technology, resulting in a major leap forward in audio measurement. AP-measured THD+N is an impressive -120.2dB, while the FPGA supports DSD512 and PCM 32bit/768kHz.

The DC07Pro features a highly efficient synchronous DC-DC converter with a power conversion efficiency of up to 94%. With a current consumption of only 80mA, it is 40% more energy efficient than its predecessor, DC04Pro, and offers an increased output power of 82%. The dedicated analog circuit LDO has a PSRR of up to 100dB, ensuring clean power supply.

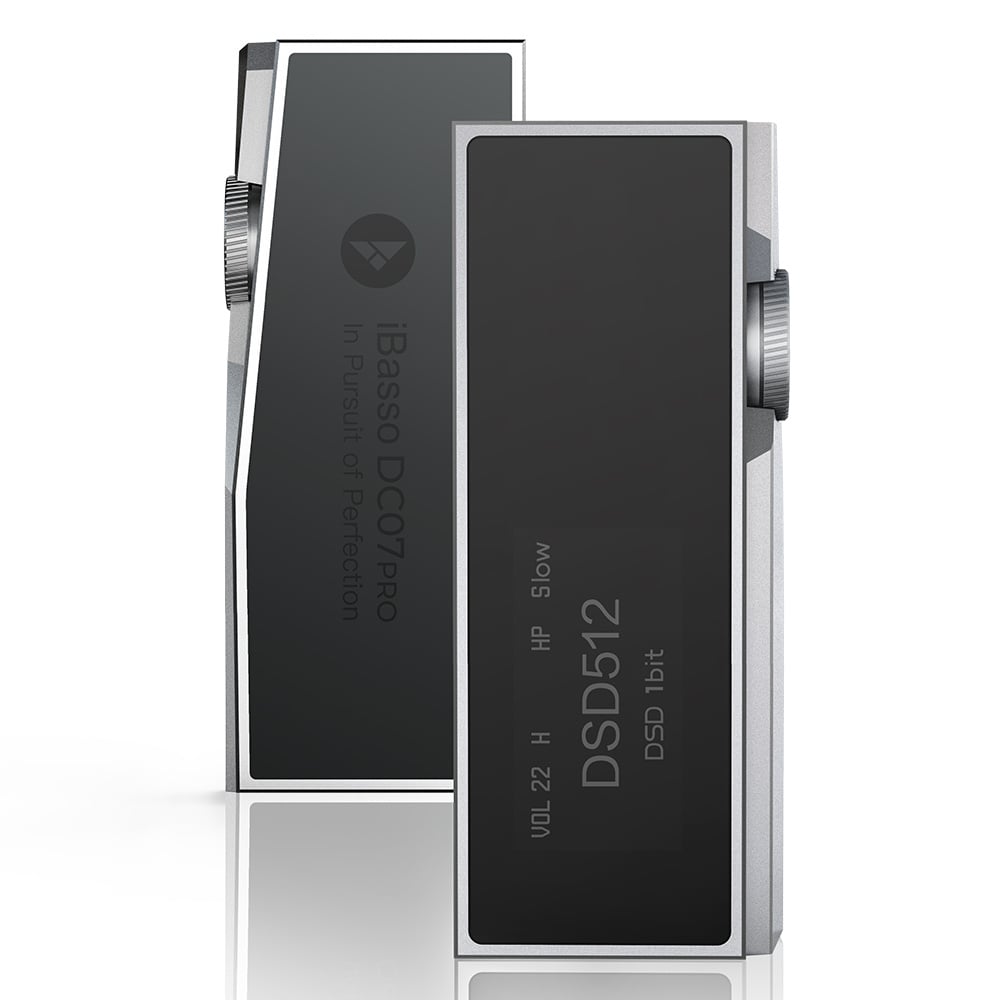

The device features a 0.96” OLED display and an ALPS encoder, allowing users to browse and adjust settings using the multifunction knob. The app-driven Android APK also allows users to remotely manage settings using their smartphone.

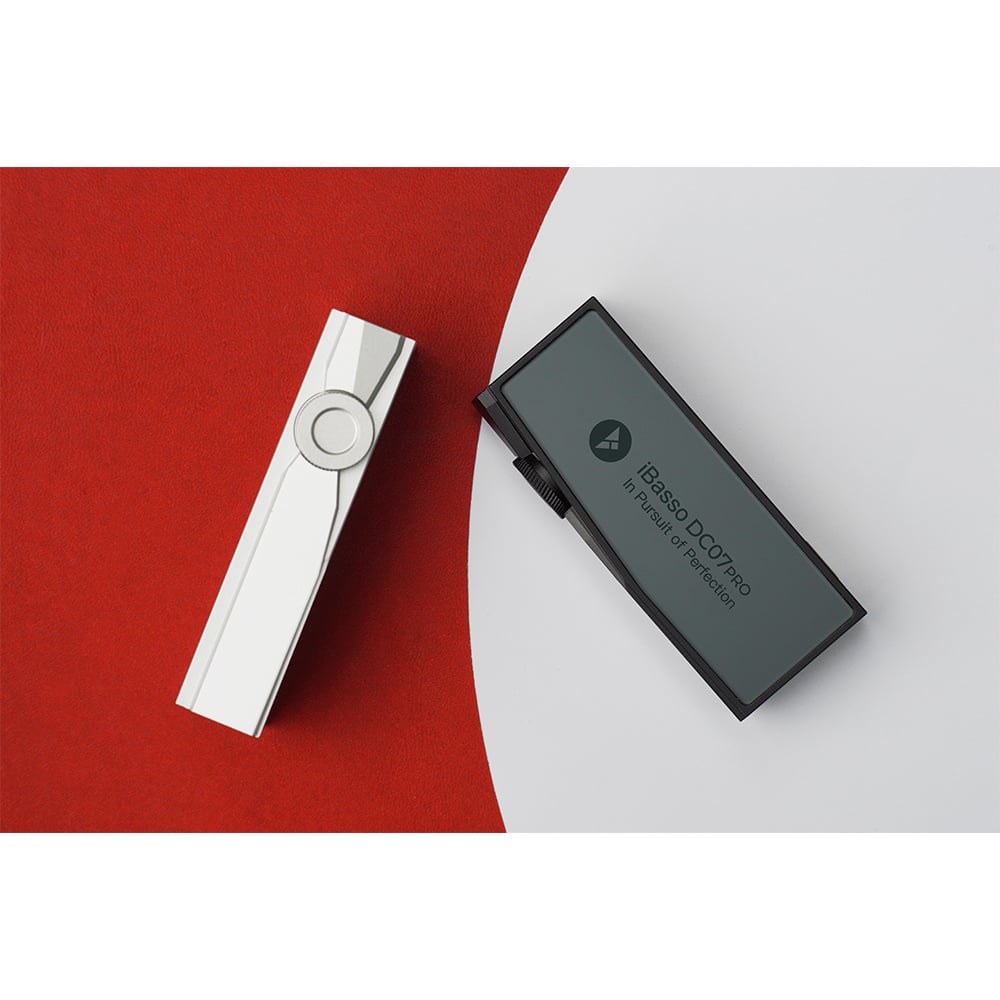

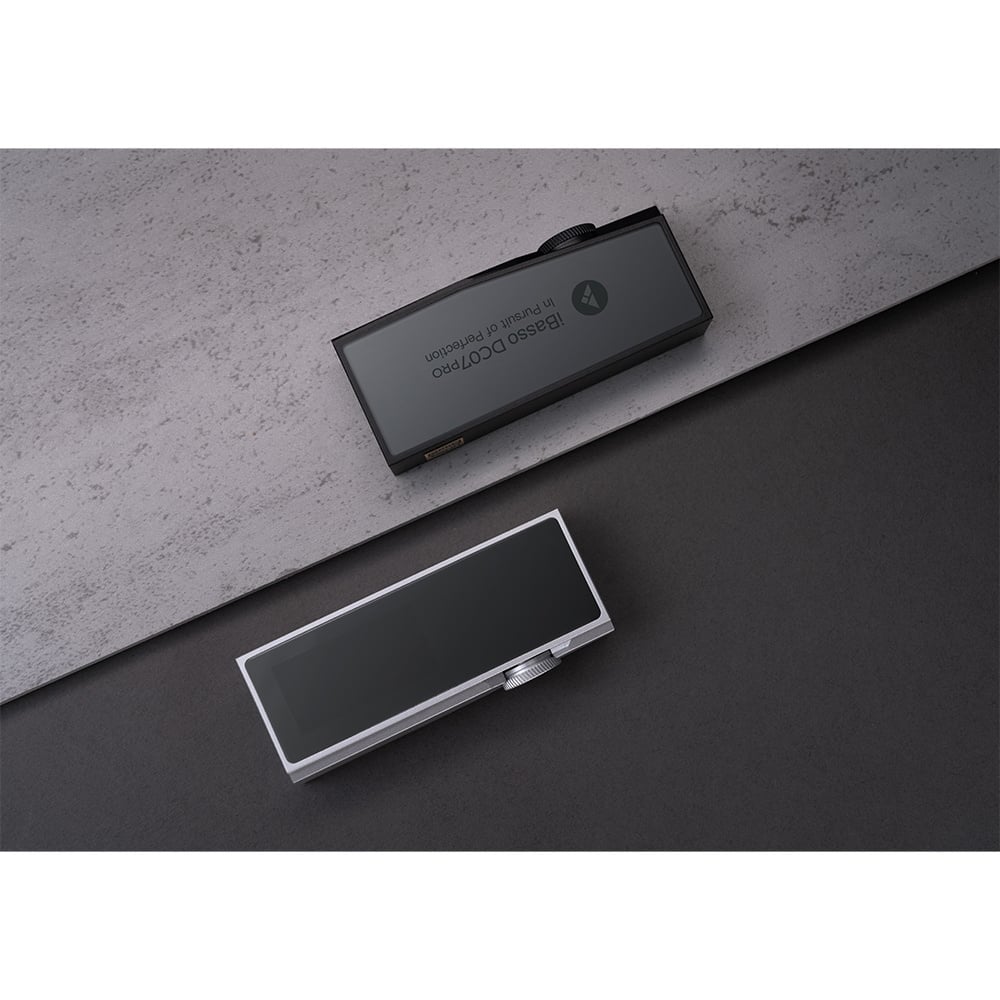

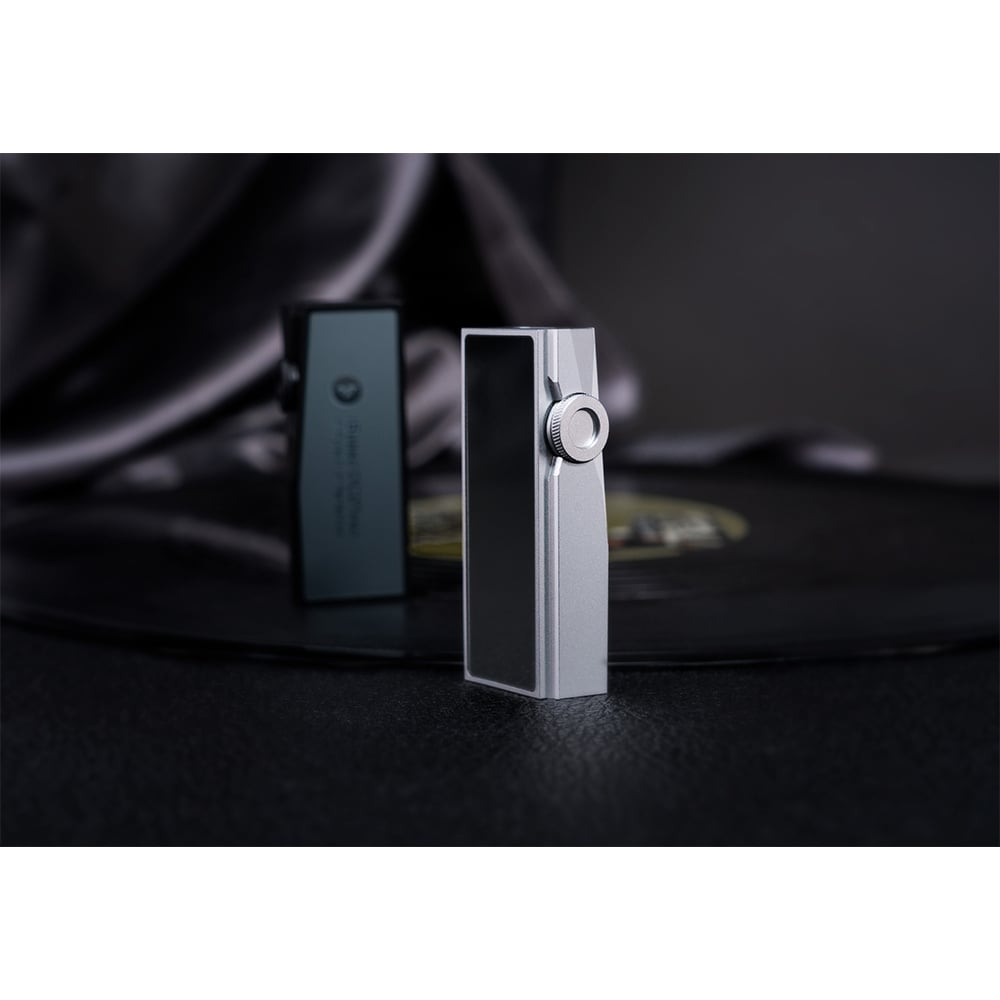

The DC07Pro's chassis is made of CNC machined aluminum, with a tempered glass back and a strategically placed button on the side. The sleek design exudes luxury and refinement, reminiscent of high-end DAPs.

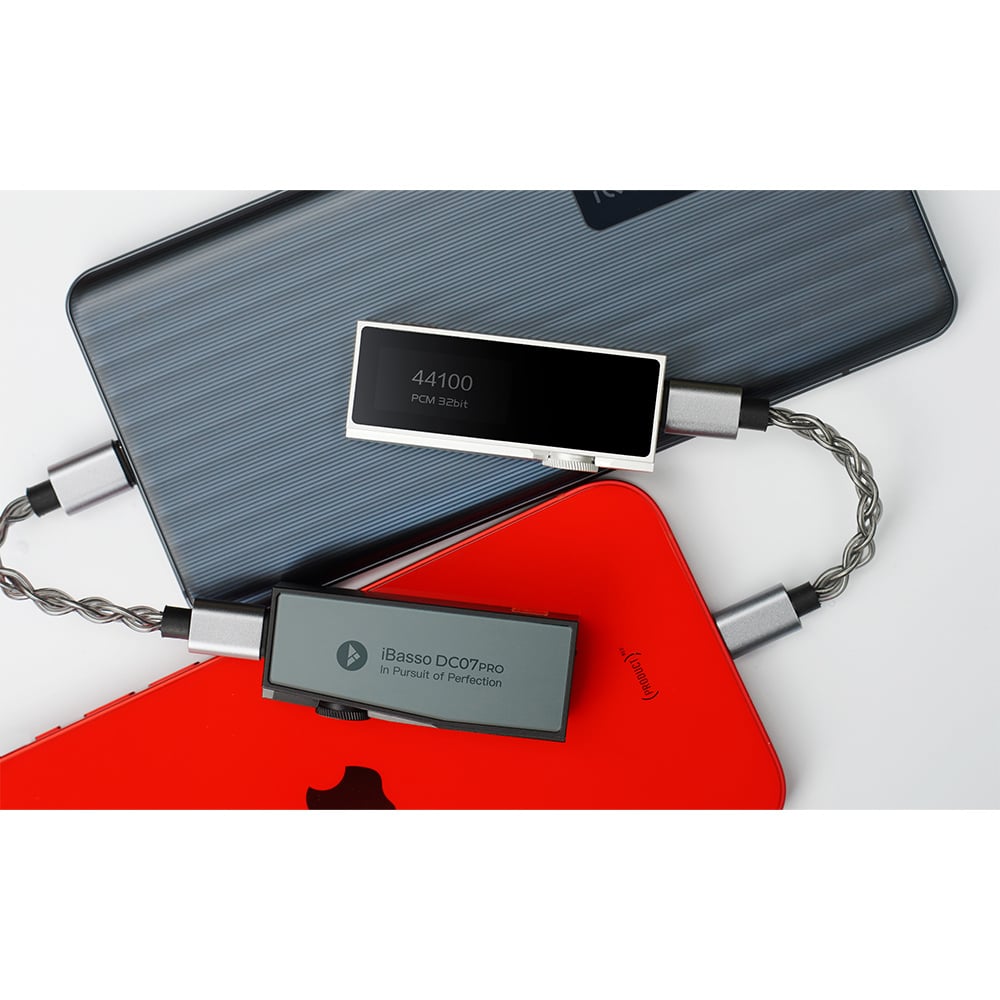

The DC07Pro also supports SPDIF output up to 32bit/768kHz, allowing users to transform their smartphone into a top-tier SPDIF transport device. With its advanced technology and premium design, the DC07Pro is poised to revolutionize the world of audio playback.
