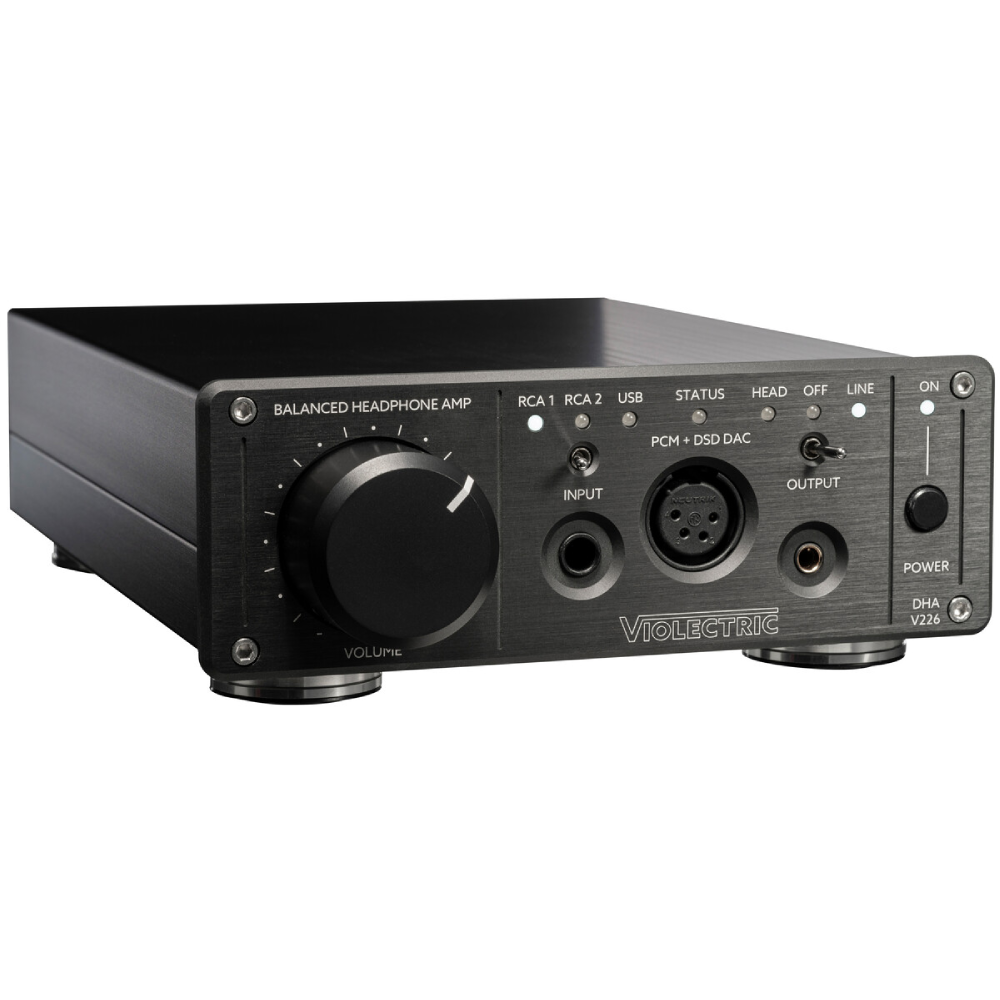

Violectric DHA V226

Violettric DHA V226

The Violectric DHA V226 is a new product in the Violectric lineup. It offers a competitive DAC, a balanced headphone amplifier and a preamplifier function. The DAC is based on Cirrus CS 43131 with a typical dynamic range of 130 dB and THD as low as -115 dB. It comes with a USB-C input and supports PCM signals up to 32 bits and a sampling rate of 384 kHz, as well as DSD up to 256.

The roots of the headphone amplifier circuit can be found in the acclaimed and award-winning predecessors V200, V280 and V281. Inside DHA V226 is provided with the similar natural yet smooth and pleasant sound.

With its unparalleled technology, the DHA V226 not only offers a powerful headphone amplifier, but also:

• Lowest noise - due to a very small amount of internal gain. This makes the self-generated noise of the amplifier inaudible.
• High output voltage - via 50 V internal operating voltage. Therefore ideally suited for headphones with high impedance that deserve a high output voltage swing.
• High output power - thanks to powerful amplifiers that provide much more power, even the most demanding headphones would need. So best suited for headphones with low impedances and magnetostatic headphones!
• High damping factor - due to the lowest output impedance. Therefore the ideal match for difficult to drive headphones without negative side effects and with the guarantee of an uncompromising frequency response.

It's up to you:

DAC? Headphone amplifier? Preamplifier? Any combination? The headphone outputs or line outputs on the back can be activated/deactivated by a switch on the front. Connect not only your headphones to the DHA V226 but also your power amplifier or your active speakers and enjoy a compact and great sounding headphone amplifier with a first-class DAC and a first-class preamplifier.

Features

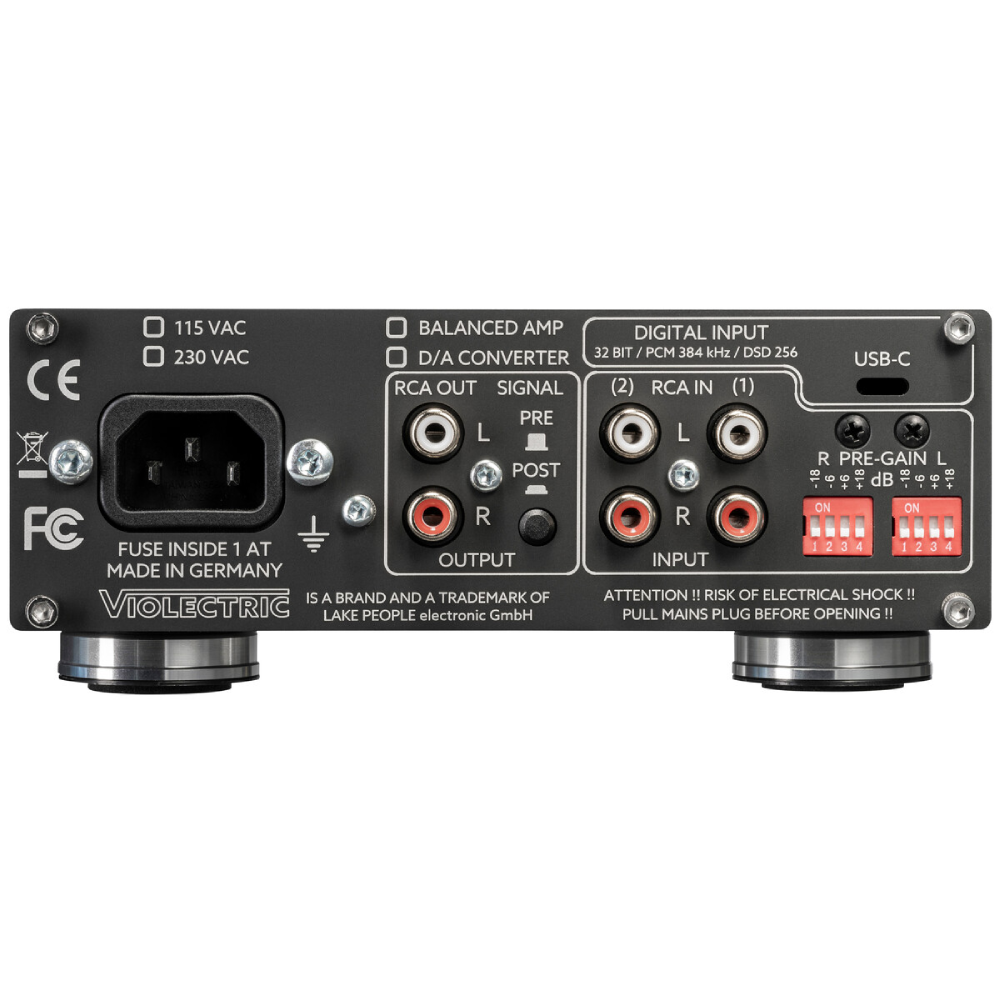

• analog stereo inputs, unbalanced via RCA
• 1 digital input, USB-C with up to 32 bit and up to 384 kHz for PCM signals, DSD256
• 32 bit DAC with typical 130 dB dynamic range and -115 dB THD+N
• +/- 18 dB Pre-Gain for perfect matching of the DHA V226 between source and headphones
• Volume control with Alps RK 27 attenuator, large 38 mm solid aluminum knob
• 4 powerful amplifiers with 3500 mW Pmax at 100 Ohm and 23 V RMS at 600 Ohm
• Delayed pairing of headphones to amplifier after switching on

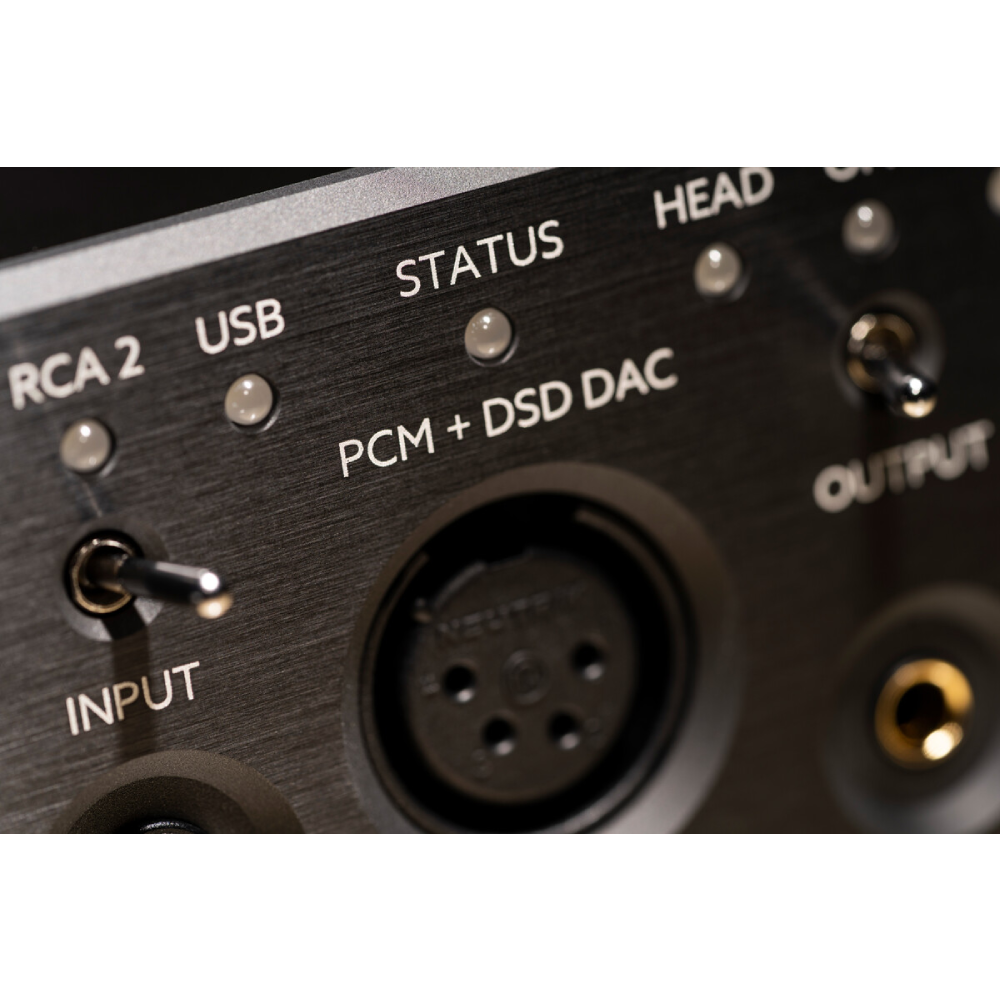

• Headphone and line output can be switched separately
• Headphone outputs: 1 x 4-pin XLR, ball. / 1 x Pentaconn, ball. / 1 x ¼” jack, unbal.
• Line Stereo Outputs: Unbalanced via RCA
• 1 toroidal transformer, > 22,000 uF filter capacity
