Violectric DHA V380²

Violectric DHA V380²

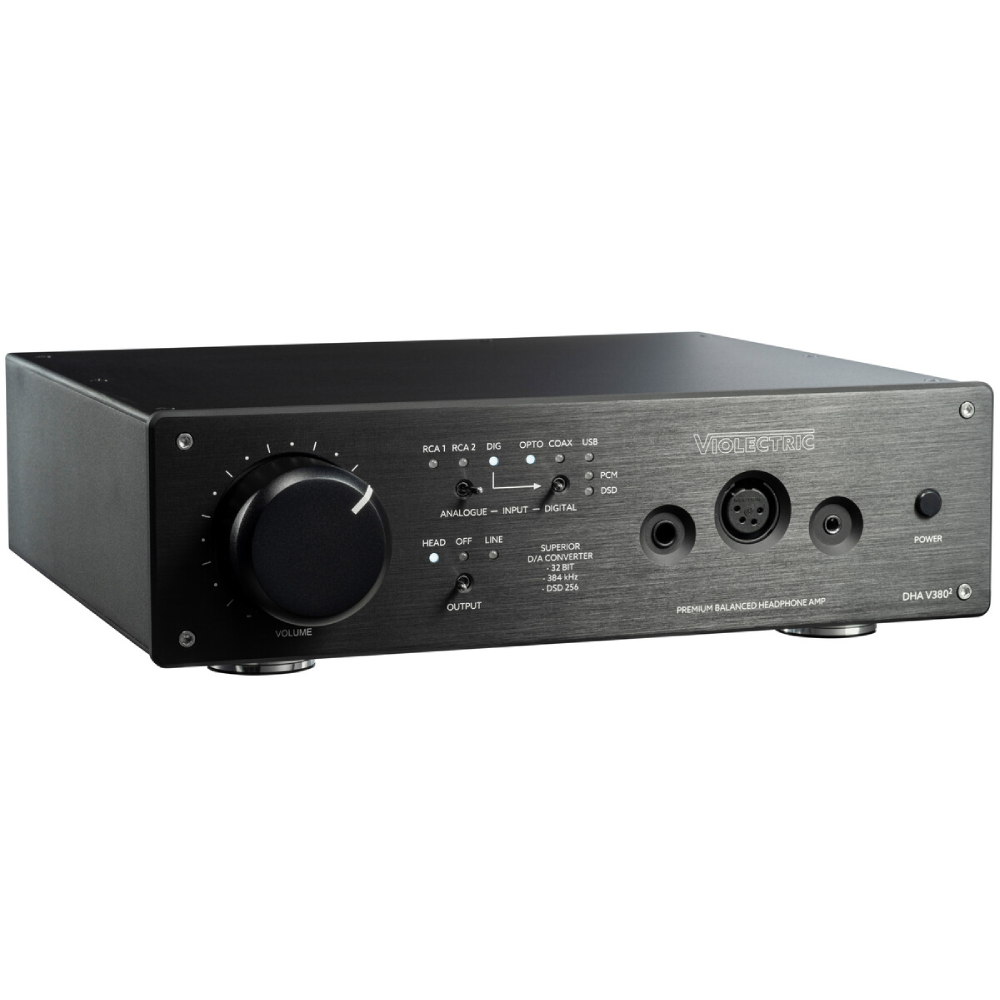

The Violectric DHA V380 is a new top device in the Violectric lineup. It offers a state-of-the-art DAC and a balanced headphone amplifier as well as a preamp function.

The DAC is a new development and includes a 32-bit resampler/reclocker and two 32-bit DACs per channel.

The latest findings from multiple test winners Lake People, Violectric and Niimbus were implemented in the headphone amplifier.

Violetctric DHA V380 offers not only a powerful headphone amplifier, but also:

• Lowest noise - due to a very small amount of internal gain. This makes the self-generated noise of the amplifier inaudible.
• High output voltage - via 50 V internal operating voltage. Therefore ideally suited for headphones with high impedance that deserve a high output voltage swing.
• High output power - thanks to powerful amplifiers that provide much more power, even the most demanding headphones would need. So best suited for headphones with low impedances and magnetostatic headphones!
• High damping factor - due to the lowest output impedance. Therefore the ideal match for difficult to drive headphones without negative side effects and with the guarantee of an uncompromising frequency response.

It's up to you:

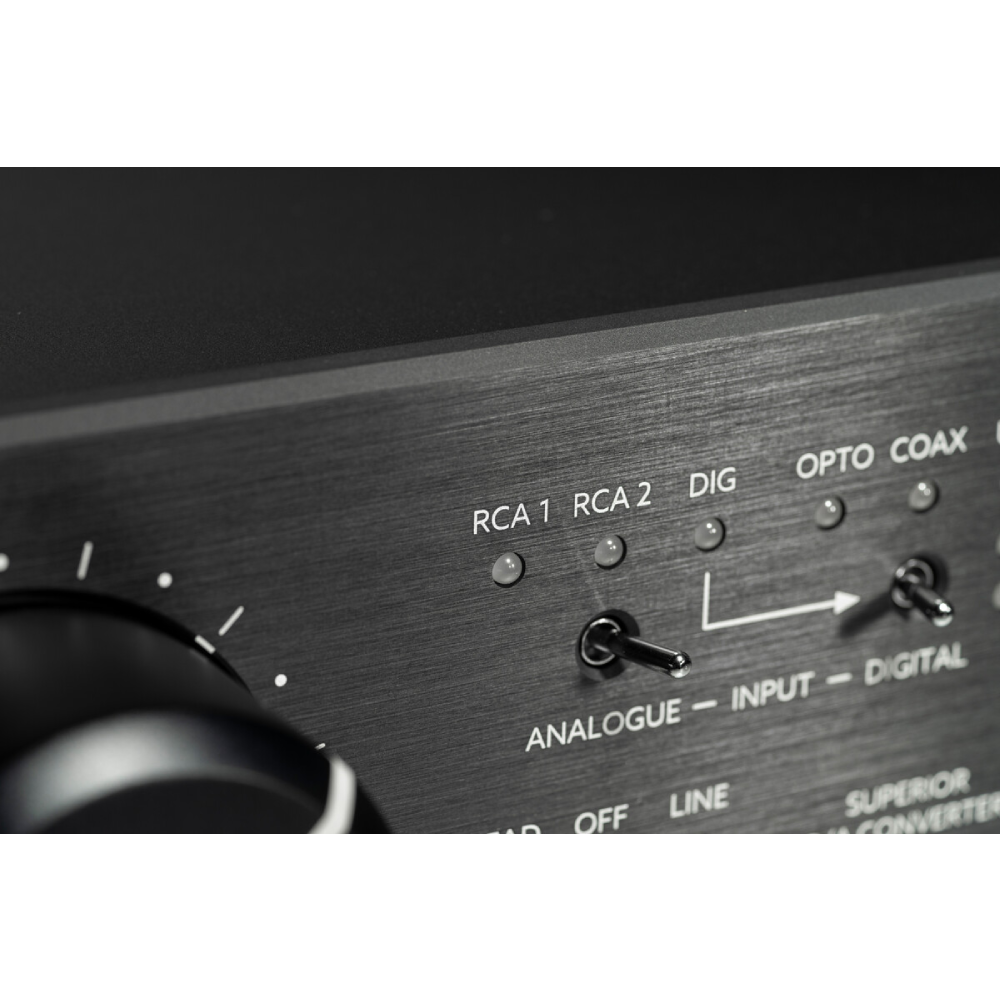

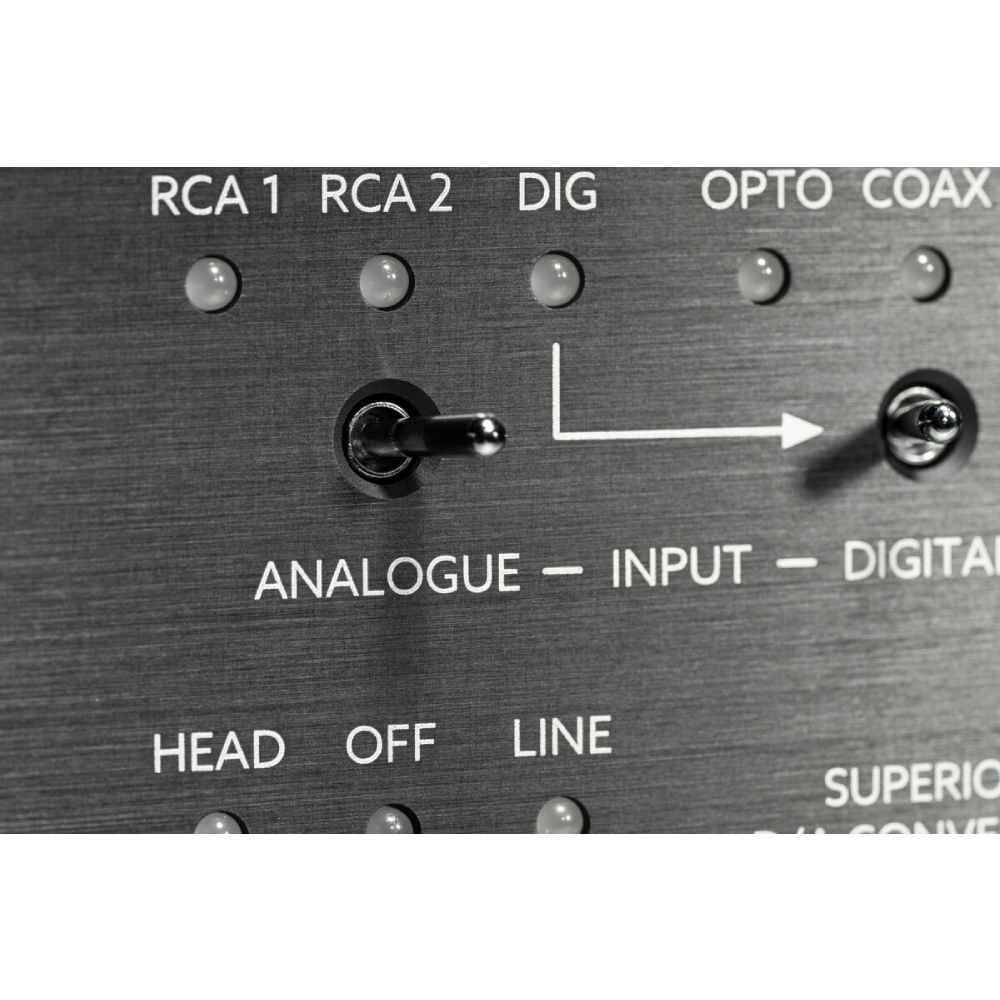

DAC? Headphone amplifier? Preamplifier? Any combination? The headphone outputs or the line outputs on the back can be activated/deactivated by a switch on the front. Connect not only your headphones to the Violectric DHA V380 but also your power amplifier or your active speakers and enjoy a compact and great sounding headphone amplifier with a State-of-the-art DAC and a premium preamp!

Features

• 2 analog stereo inputs, unbalanced via RCA
• 3 digital inputs, opto and coax with up to 24 bit and up to 192 kHz capability, USB with up to 32 bit and up to 384 kHz for PCM signals, DSD 64 - 256
• 32 bit Resampling / Reclocking with 180 dB dynamic range, modes: On / Off / Best
• 2 x 32-bit DAC per channel with -112 dB THD+N and 123 dB dynamic range
• +/- 18 dB Pre-Gain for perfect matching of the DHA V380 between source and headphones
• 4 powerful amplifiers with 5000 mW Pmax at 50 Ohms and 21 V RMS at 600 Ohms
• Headphone and line output can be switched separately
• Headphone outputs: 1 x 4-pin XLR, ball. / 1 x Pentaconn, ball. / 1 x ¼” jack, unbal.

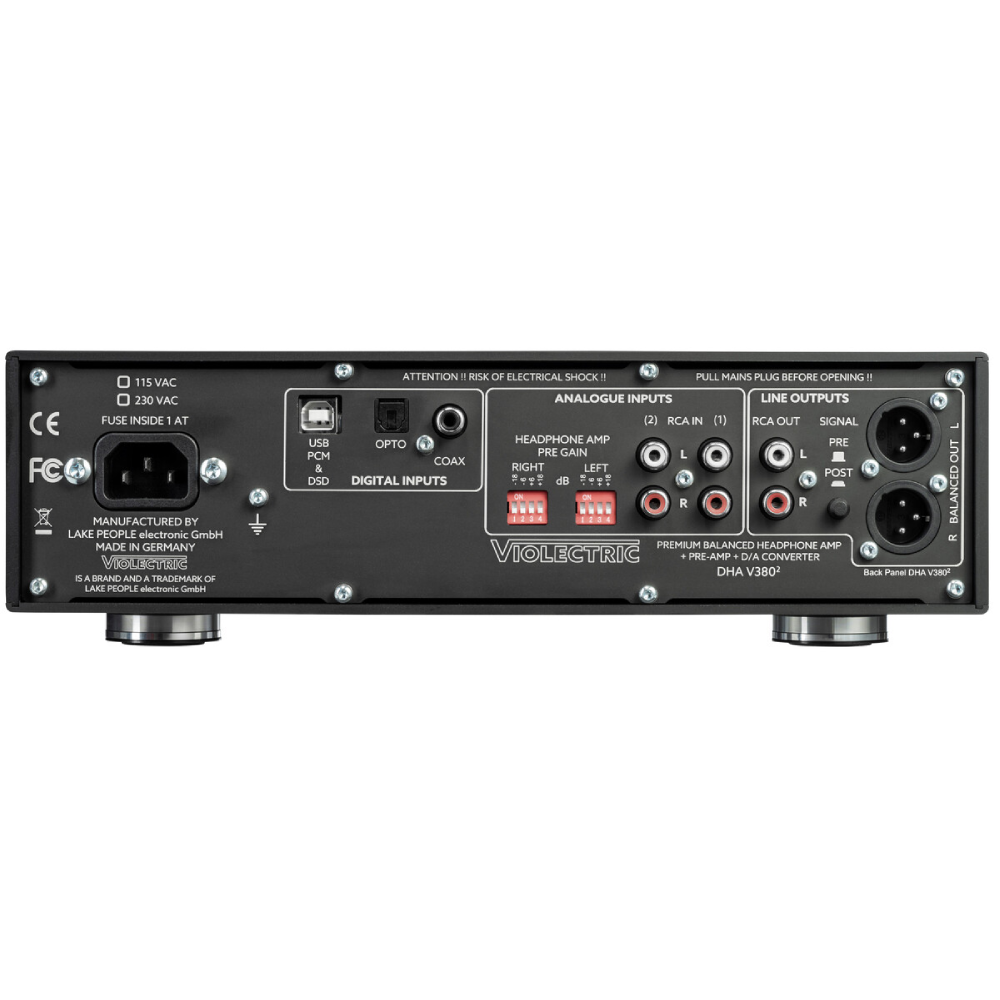

• Line-out, stereo, 1 x unbalanced via RCA, 1 x balanced via XLR
• 1 toroidal transformer, > 26,500 uF filter capacity
