TEAC PD-301DAB-X

TEAC PD-301DAB-X

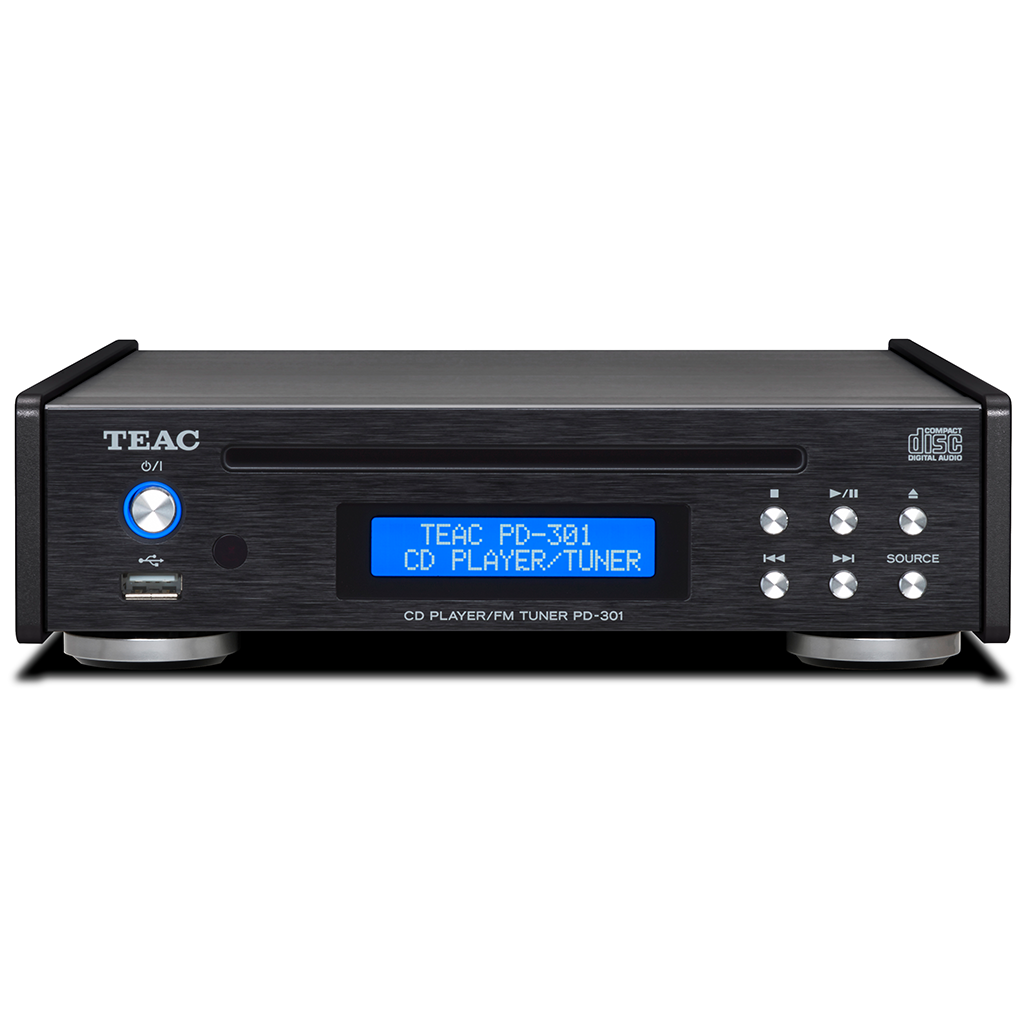

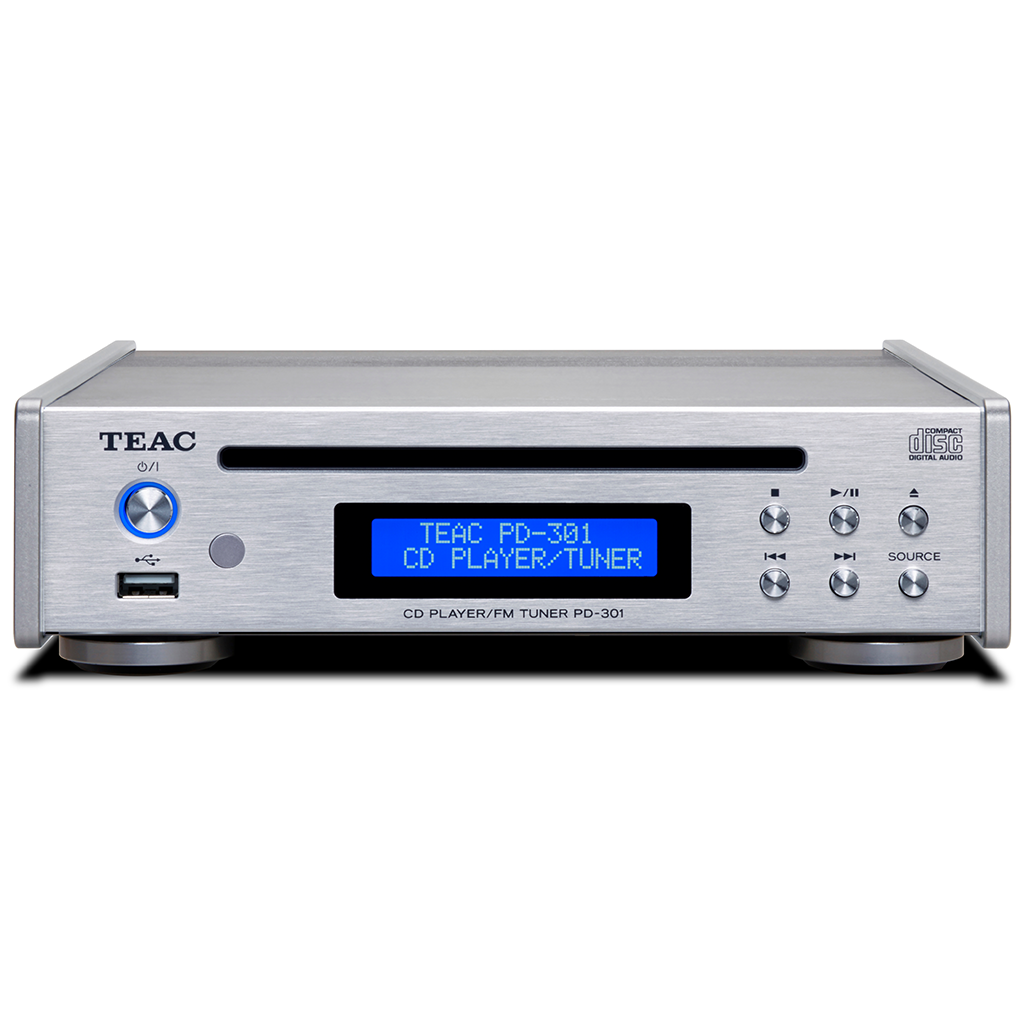

A Reference 301 Series combination product consisting of a CD player, USB memory player and FM tuner, the PD-301DAB-X provides a versatile digital media hub for your existing desktop audio system.

Mechanism for CD drive with loading slot that supports fast loading and automatic playback

The PD-301DAB-X features a compact, high-precision slot-loading CD drive mechanism designed exclusively for professional audio applications. With fast load times and an automatic playback feature, users can enjoy their music almost immediately after inserting a CD into the slot.

Supports MP3, WMA, AAC and WAV formats

Conventional digital audio formats such as MP3 and WMA can be played back from CD-ROM/CD-R/CD-RW discs. In addition, music files in AAC and WAV formats are also played from a USB flash drive inserted into the front USB port. Usefully, the player can display ID3 tag, song title and artist name information in MP3, WMA and AAC files on the LC display.

High-performance 32-bit DAC

The PD-301DAB-X uses a high-quality DAC (digital to analog converter), the PCM5142 from BurrBrown, for silky smooth sound reproduction.

Rugged, all-metal housing with a small footprint

The use of aluminum panels for the front, side and top of the player means that the PD-301DAB-X offers unusual rigidity, minimizing the negative effect of unwanted vibration on sound quality. And all this in an enclosure with a small footprint that covers just 215 mm x 232 mm (8.5 inches x 9.1 inches), allowing users to place the unit on the smallest of desktops.

Built-in DAB+/FM Tuner

Unlike most other CD players, the PD-301DAB-X also features a DAB/FM tuner module in its compact housing.

Digital audio outputs for all sources, including DAB+/FM

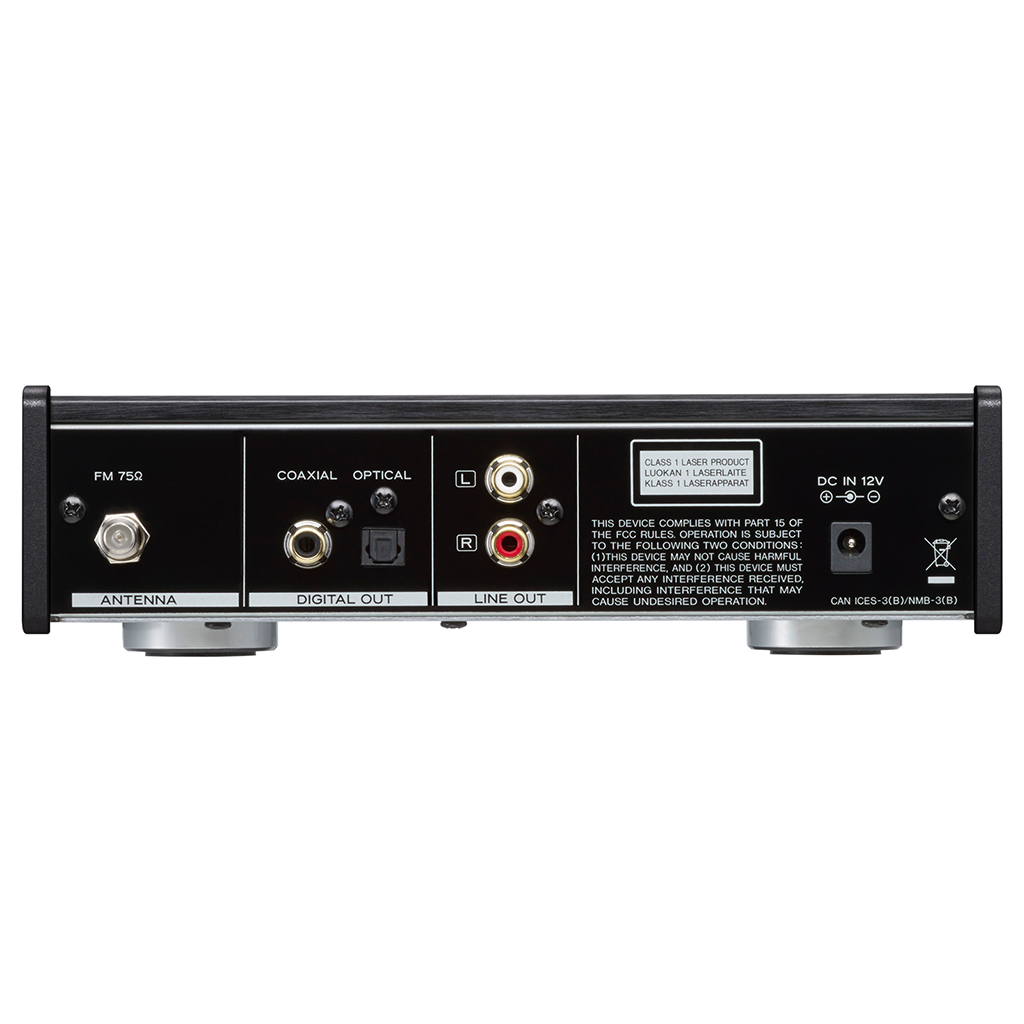

In addition to conventional analog audio outputs, audio signals from the PD-301DAB-X's built-in DAB+/FM tuner are also delivered via the digital audio outputs, via both the coaxial and optical jacks (these jacks, of course, also deliver digital audio from the CD).

The format for digital audio output is PCM 44.1 kHz/16-bit, regardless of the resolution of the original source.

Remote control with 10 keys

The PD-301DAB-X. comes standard with a compact card-shaped remote control
