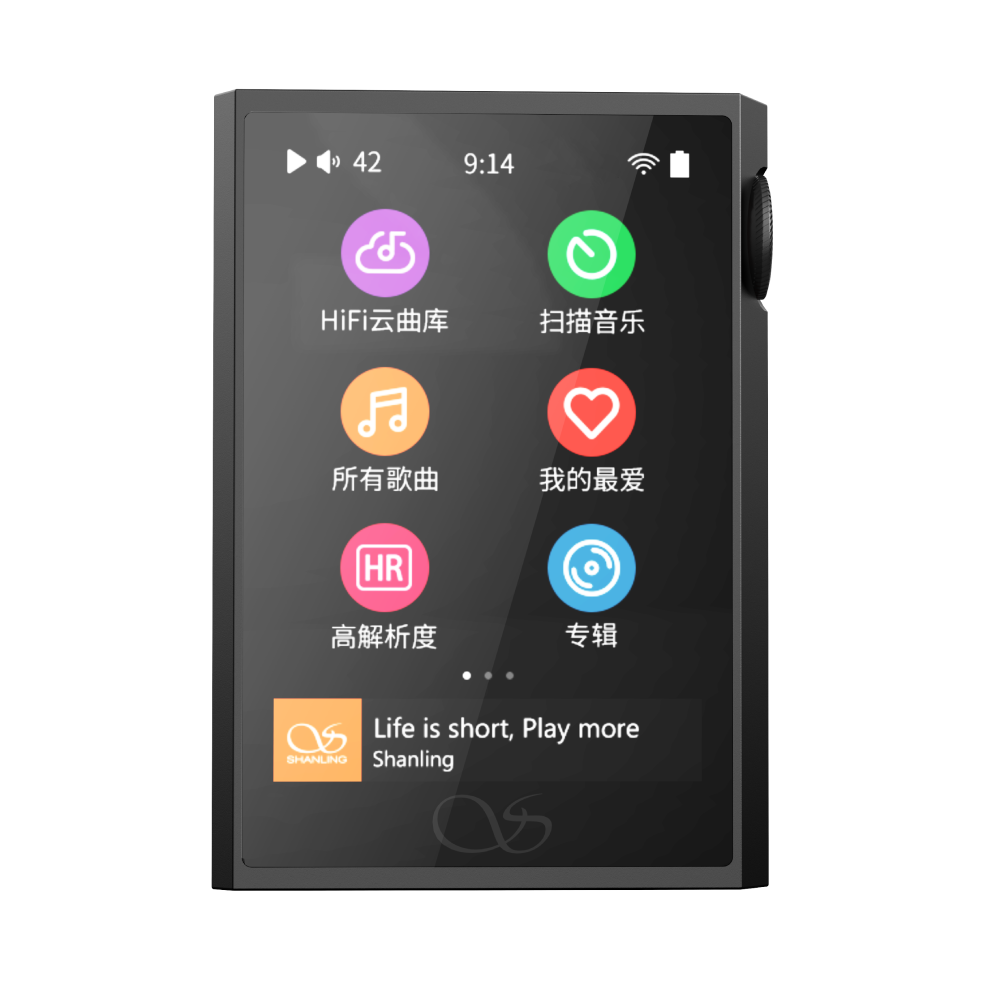

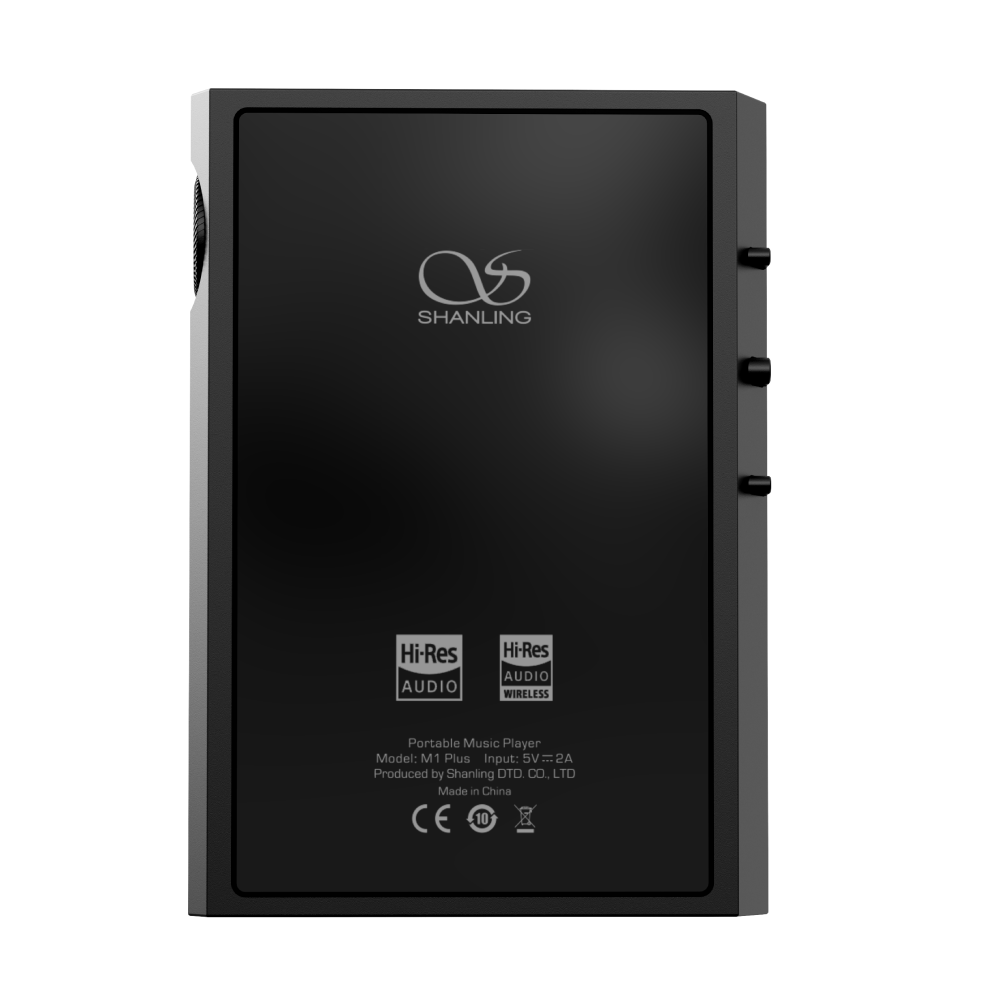

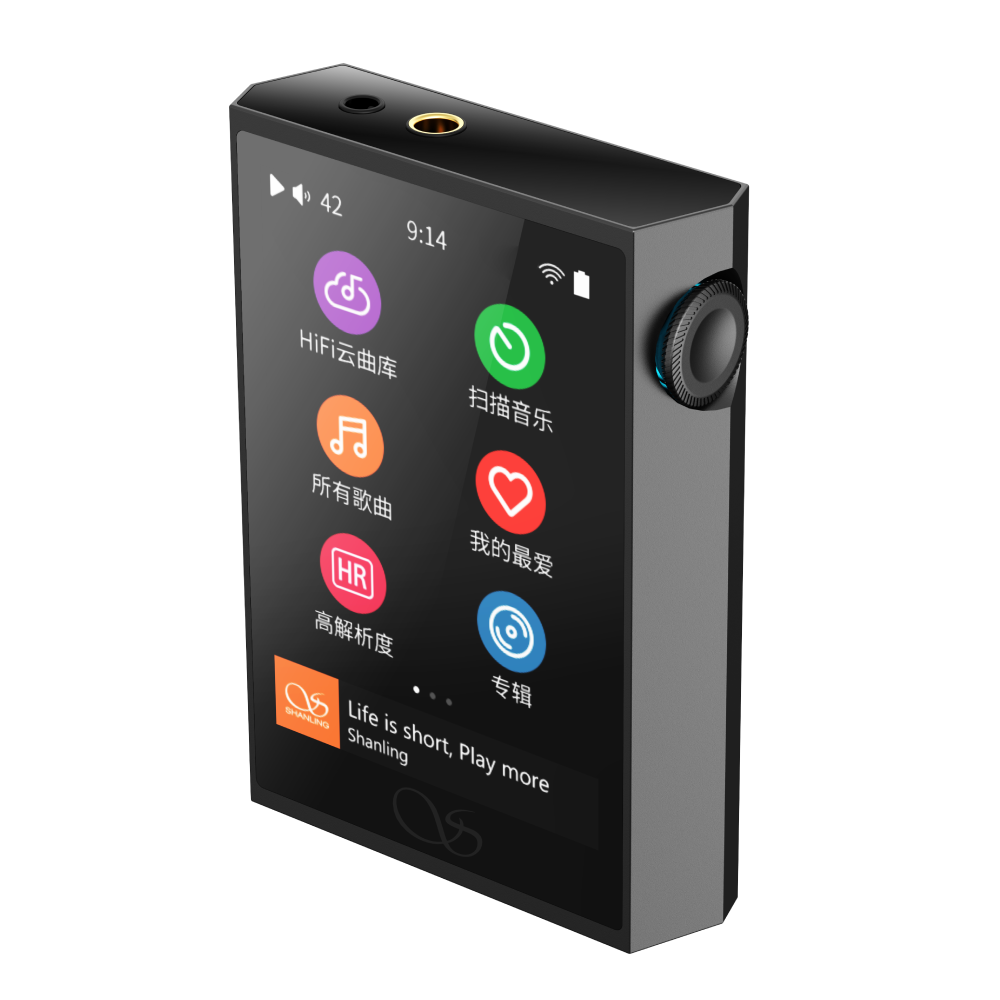

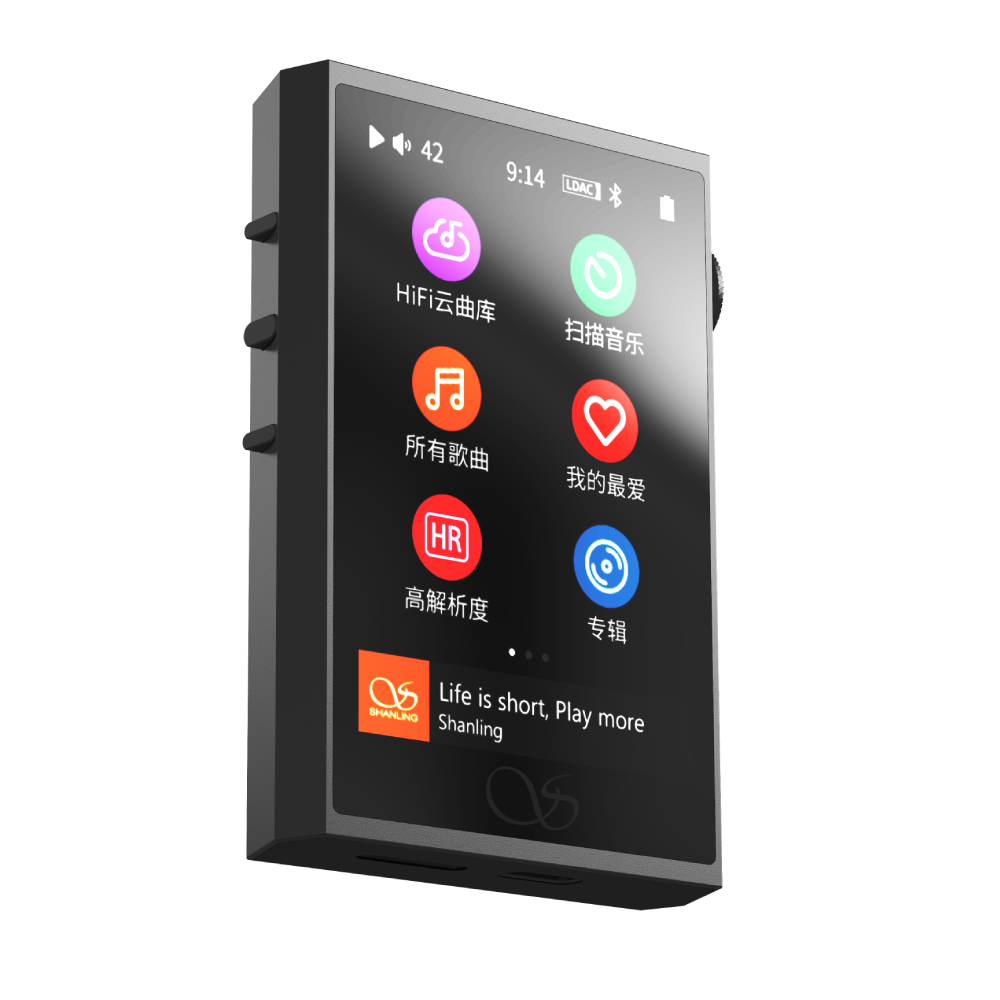

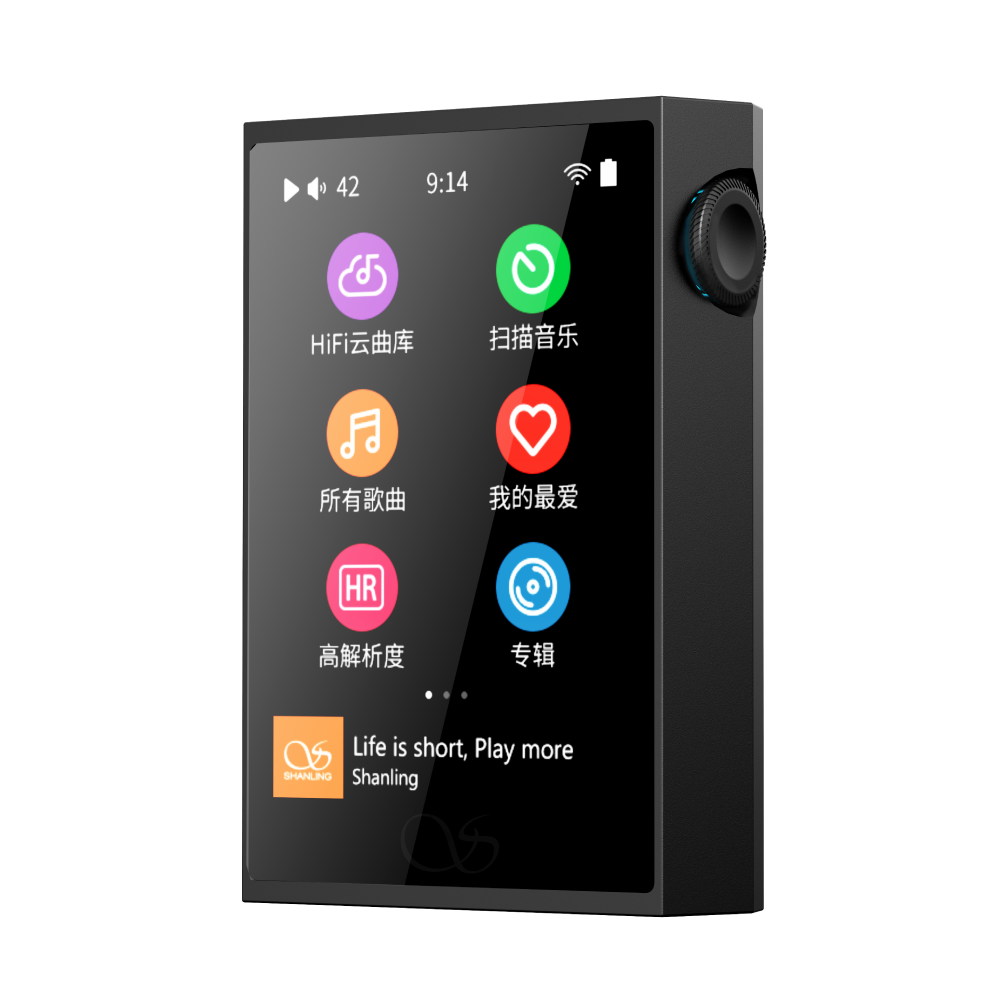

Shanling M1 Plus
Using the latest MTouch system on the Ingenic X2000 processor, the M1 Plus offers a rich set of features. These include two-way Bluetooth V5.2, two-way USB connectivity, 3.5mm coaxial SPDIF output, Wi-Fi connectivity for DLNA/AirPlay and smooth local playback with the ability to expand memory via MicroSD cards.
Made of aluminum and glass, the compact design follows the bold, modern style previously introduced with the M5 Ultra. Measuring just 86 x 61 x 17 mm and weighing only 116 grams, the player fits comfortably in the hand. The 3.2-inch screen offers the ideal balance of touchscreen operation and portability for everyday use.
For sound quality, the M1 Plus relies on an ESS ES9069Q DAC for dynamic and detailed sound, supported by a pair of SGM8262 amplifiers that deliver up to 660 mW @ 32 Ohm output power. Thus, it can drive even larger audiophile headphones effortlessly. Thanks to its 4.4 mm balanced output and standard 3.5 mm jack, the player is easy to combine with virtually all headphones and earbuds on the market.
Specifications
| Supported File Formats | DSD, ISO, DXD, APE, FLAC, WAV, AIFF, AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, M3U, M3U8, OPUS |
| Streaming Services | Spotify, TIDAL, Qobuz, Deezer, Roon, AirPlay, DLNA, etc. |
| DAC | ESS ES9069Q |
| Amp | Dual SGM8262 |
| Output power | Single-ended 195mW (32Ω) | Balanced 660mW (32Ω) |
| Entries | 1 x USB-C |
| Outputs | 3.5mm (Headphone/Line out), 4.4mm (Balanced headphone/Line out) |
| Internal Memory | N/A. |
| SD card slot | microSD (max. 2TB) |
| Display | 3.2 inch / 320x480 |
| Battery | Playing time: 12.5 h (SE) / 10 h (BAL) |
| Bluetooth | 5.2 (LDAC, aptX HD, aptX, AAC, SBC) |
| Wi-Fi | 2.4/5GHz |
| Dimensions (HxWxD) | 86 x 61 x 17 mm |
| Weight | 116 g |
| Warranty | 2 years |
| Scope of delivery | M1 Plus, Screen protector, USB-A to USB-C cable, Warranty card, Manual |
