Shanling UA7
The Shanling UA7 is the latest addition to the popular UA series, bringing tube output technology to Shanling's compact USB-DAC line for the first time. Designed as an alternative to the ONIX Beta XI2, the UA7 offers a unique combination of warm tube sound and modern digital precision - ideal for discerning music lovers who don't want to compromise on sound quality on the go.
High-End Design and Performance
The UA7 is equipped with an ESS ES9069 DAC chip and dual JAN6418 vacuum tubes, resulting in a rich, natural and analog-sounding sound. The amplifier assembly - with 2x 1662 + 4x BUF634A - delivers powerful and dynamic playback with up to 577 mW of output power through the balanced 4.4 mm jack.
With support for up to 768 kHz / 32-bit PCM and DSD512, the UA7 is capable of the highest resolutions in modern hi-res audio formats.
User Experience and Design

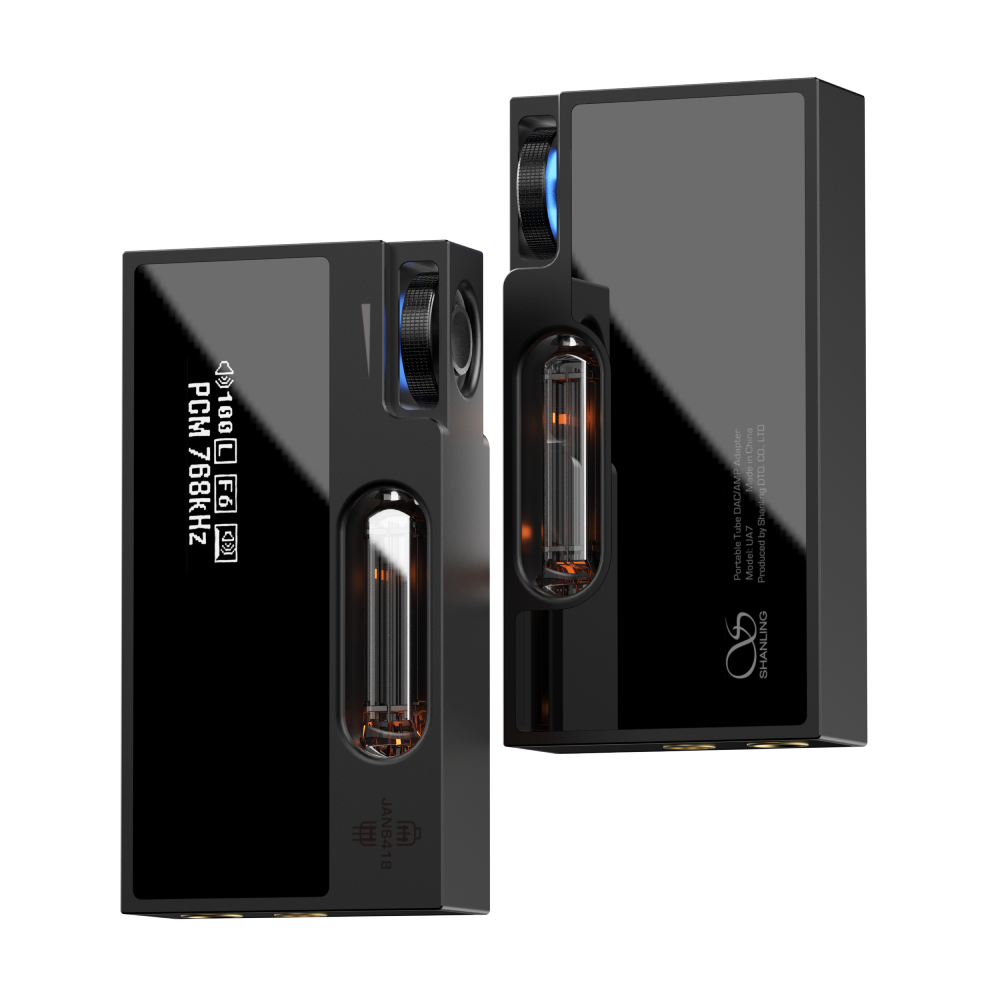

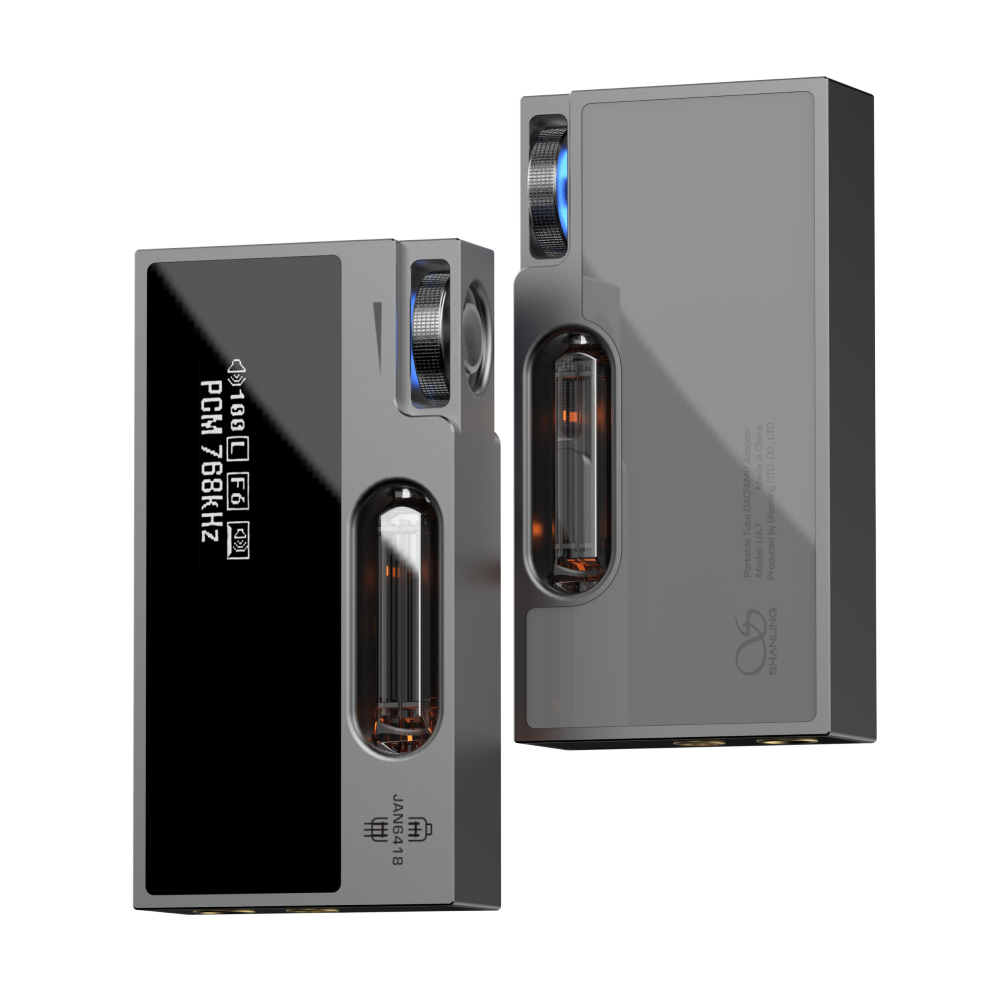

The 0.87-inch OLED display shows all important information and settings directly on the device. The new volume knob with push function provides intuitive operation. Unique to the design is the open display of the tubes - visible and touchable for an authentic audio experience.
Specifications
| DAC | ESS ES9069 |
| DSD | DSD512 |
| Battery | N/A. |
| Bluetooth | No |
| Entries | 1 x USB-C |
| Outputs | 1 x 3.5mm, 1 x 4.4mm |
| Headphone output | 1 x 3.5mm Single-ended, 1 x 4.4mm Balanced |
| Dimensions (HxWxD) | 70 x 36 x 15 mm |
| Weight | 48.5 g |
| Warranty | 2 years |
| Scope of delivery | UA7, USB-C to USB-C cable, USB-A to USB-C adapter, Manual |
