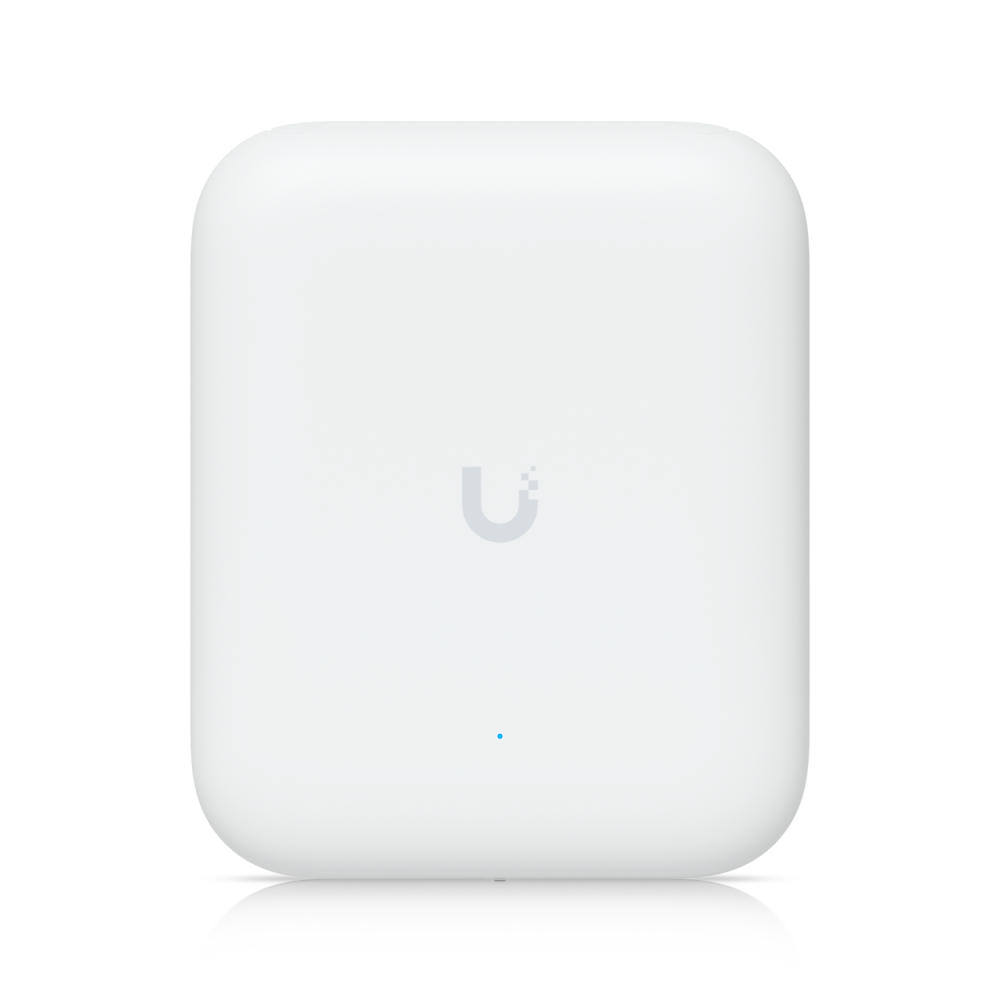

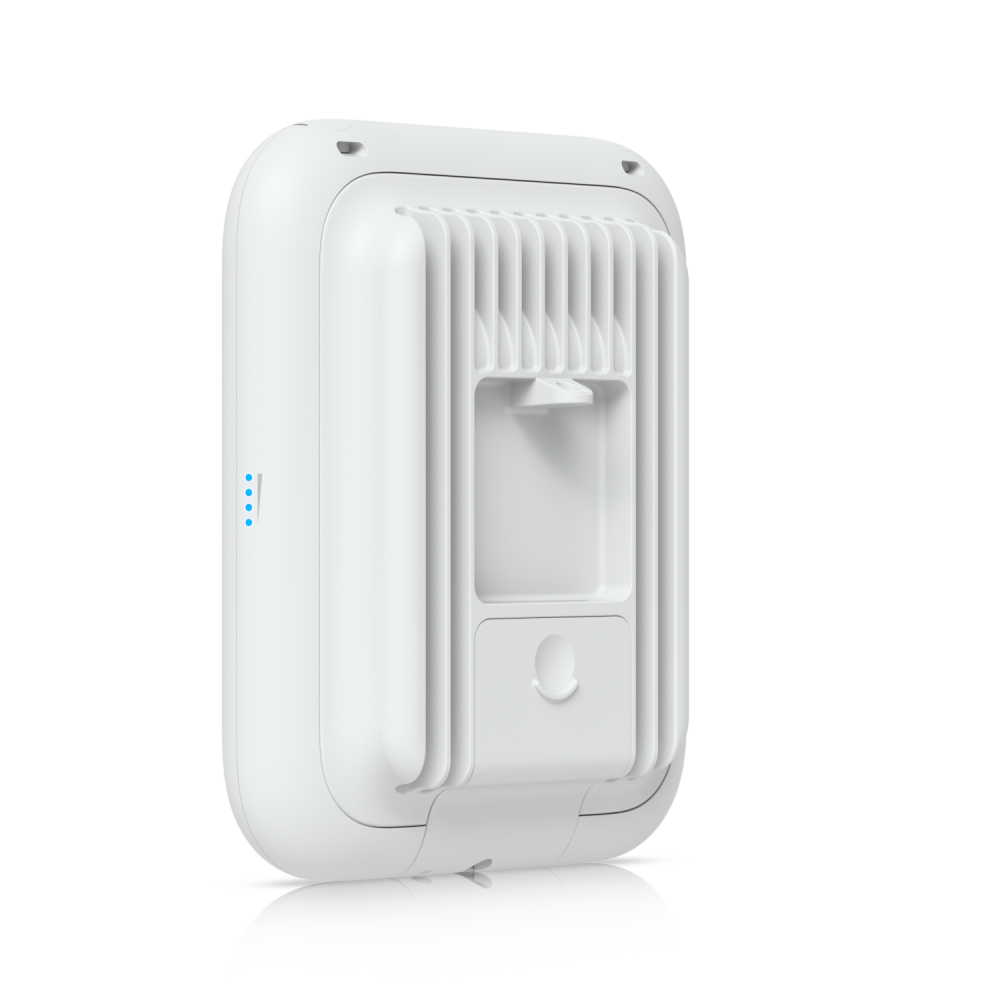

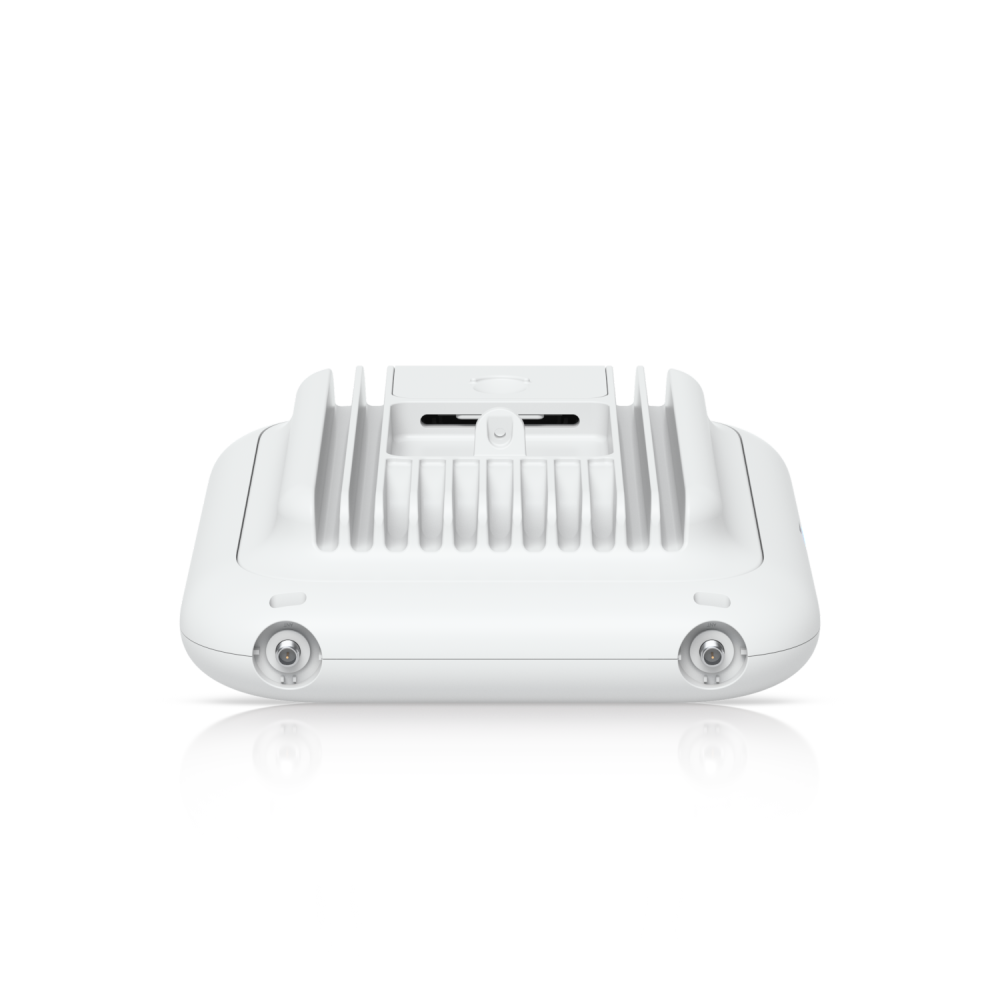

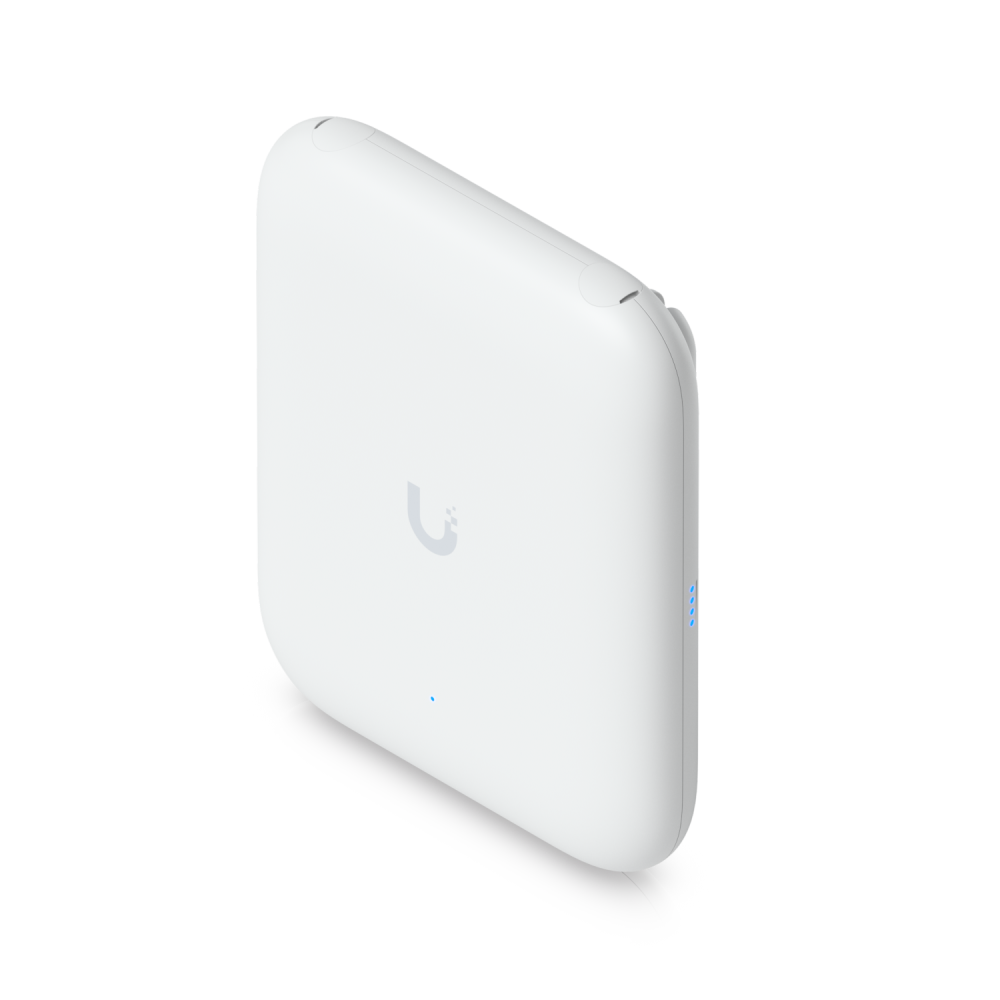

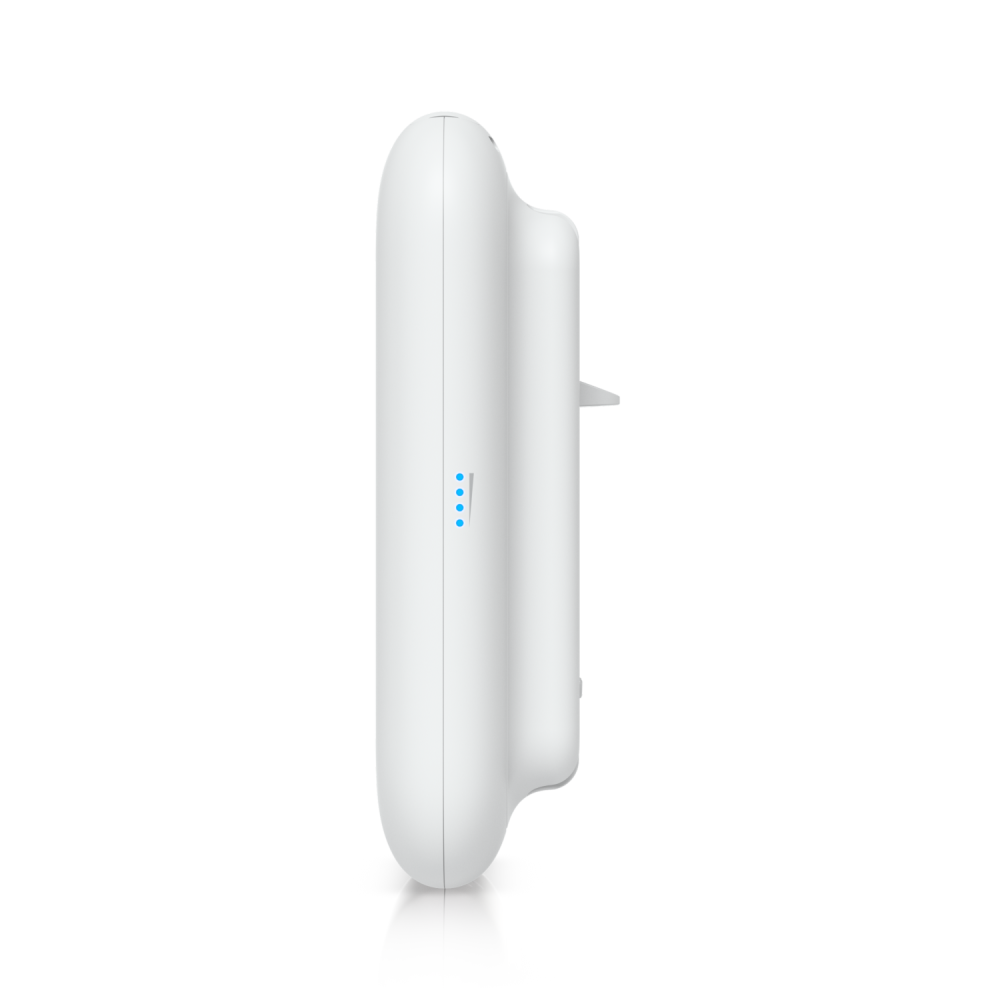

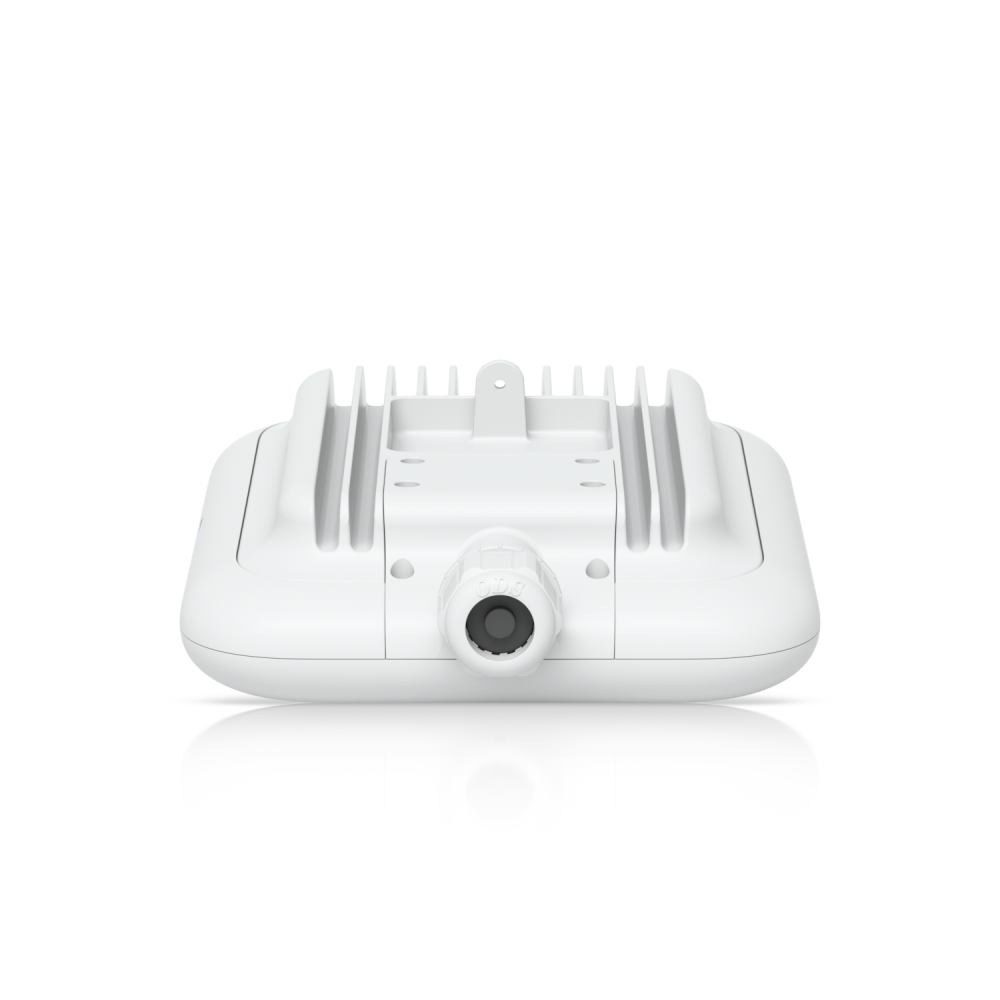

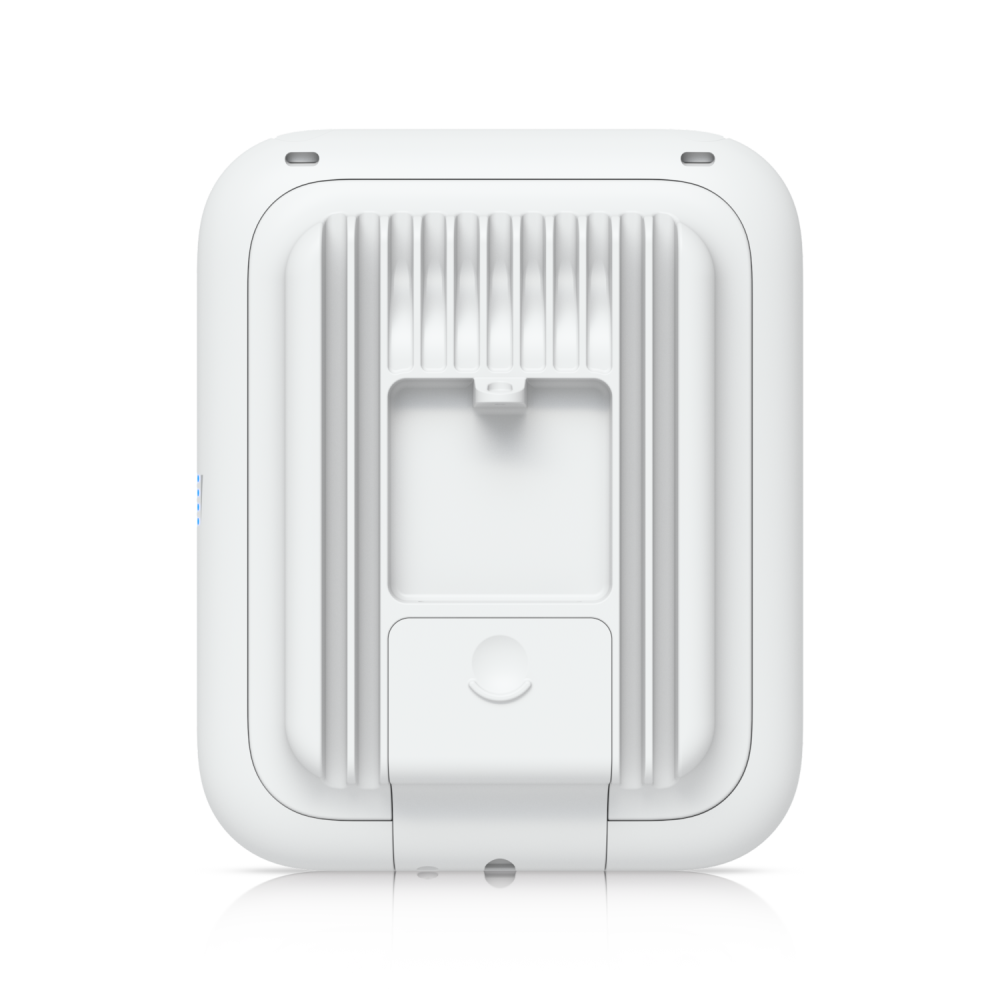

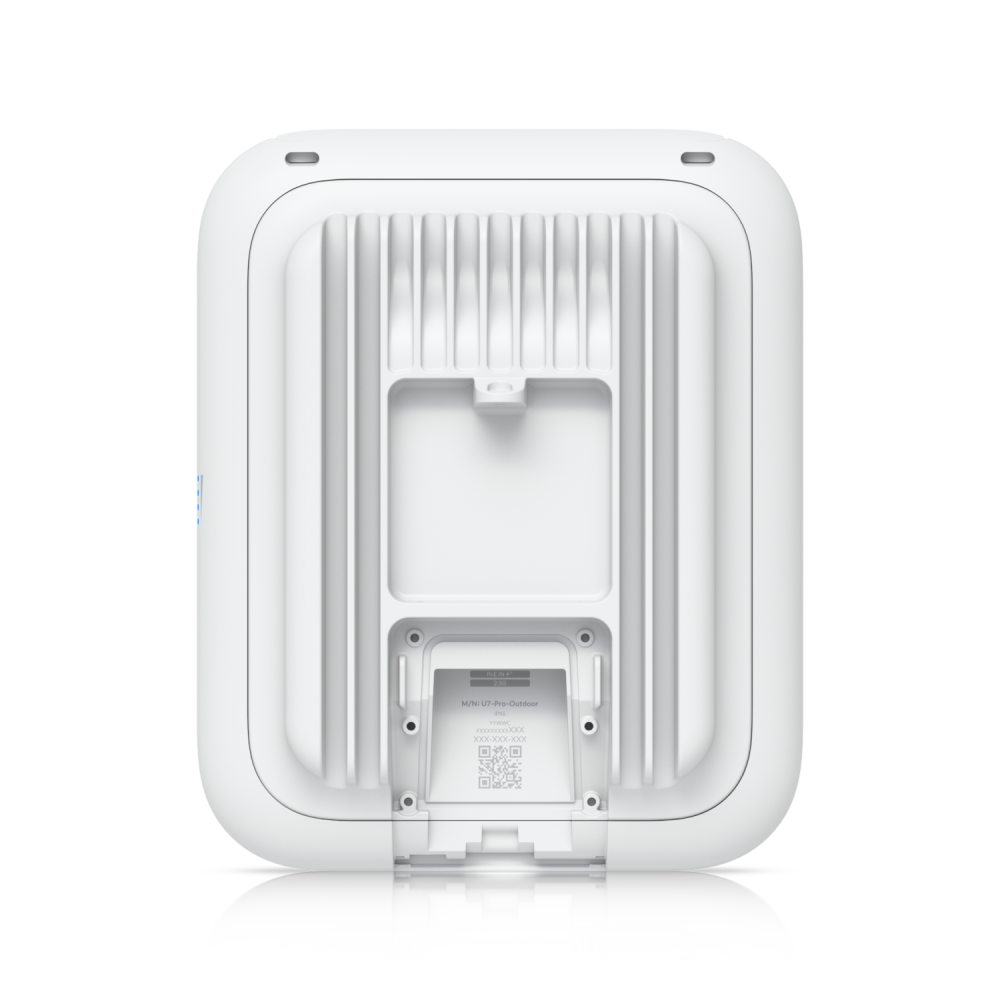

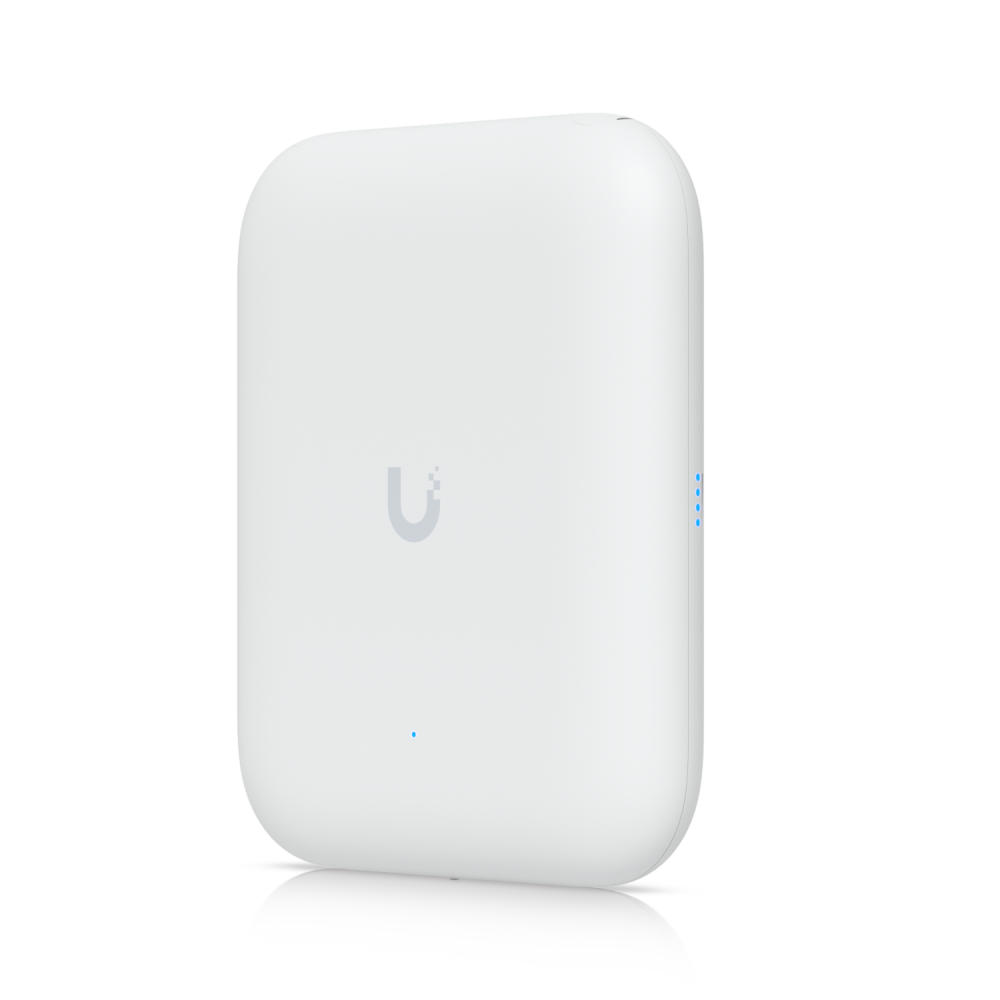

Ubiquiti UniFi 7 Pro Outdoor

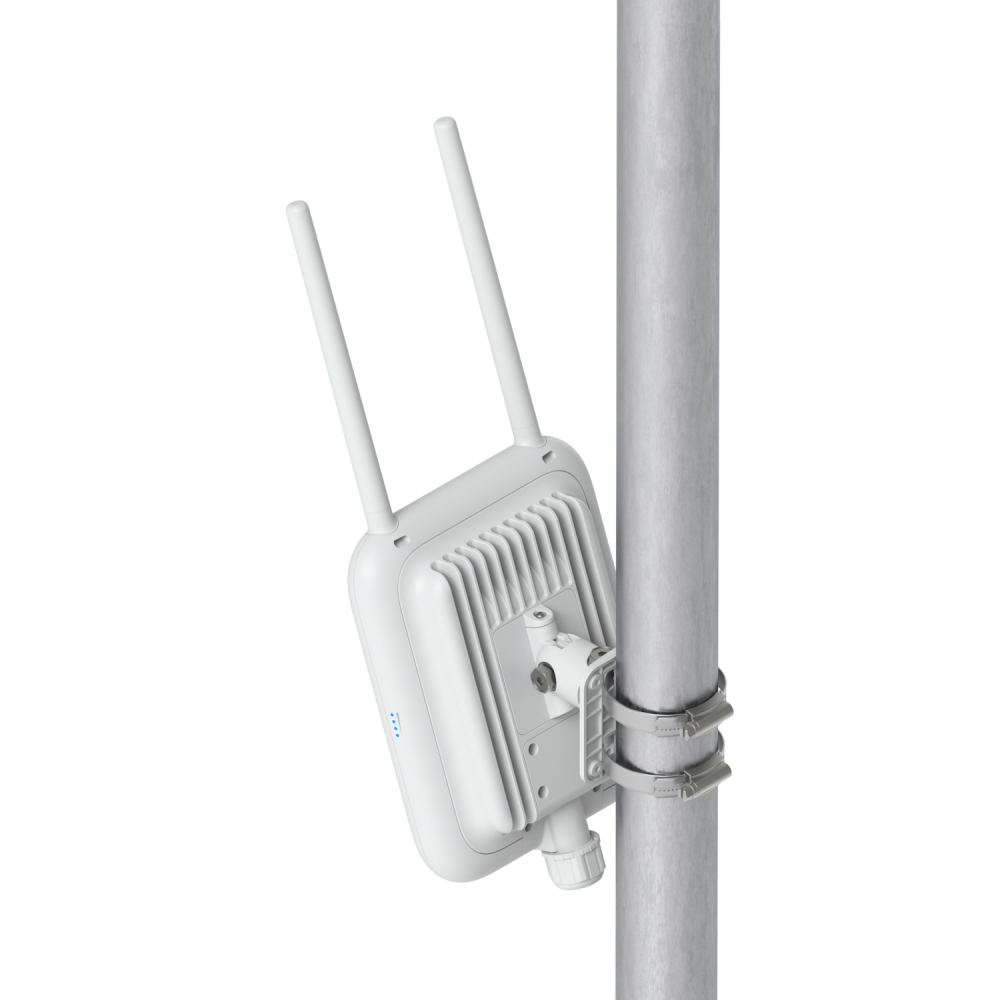

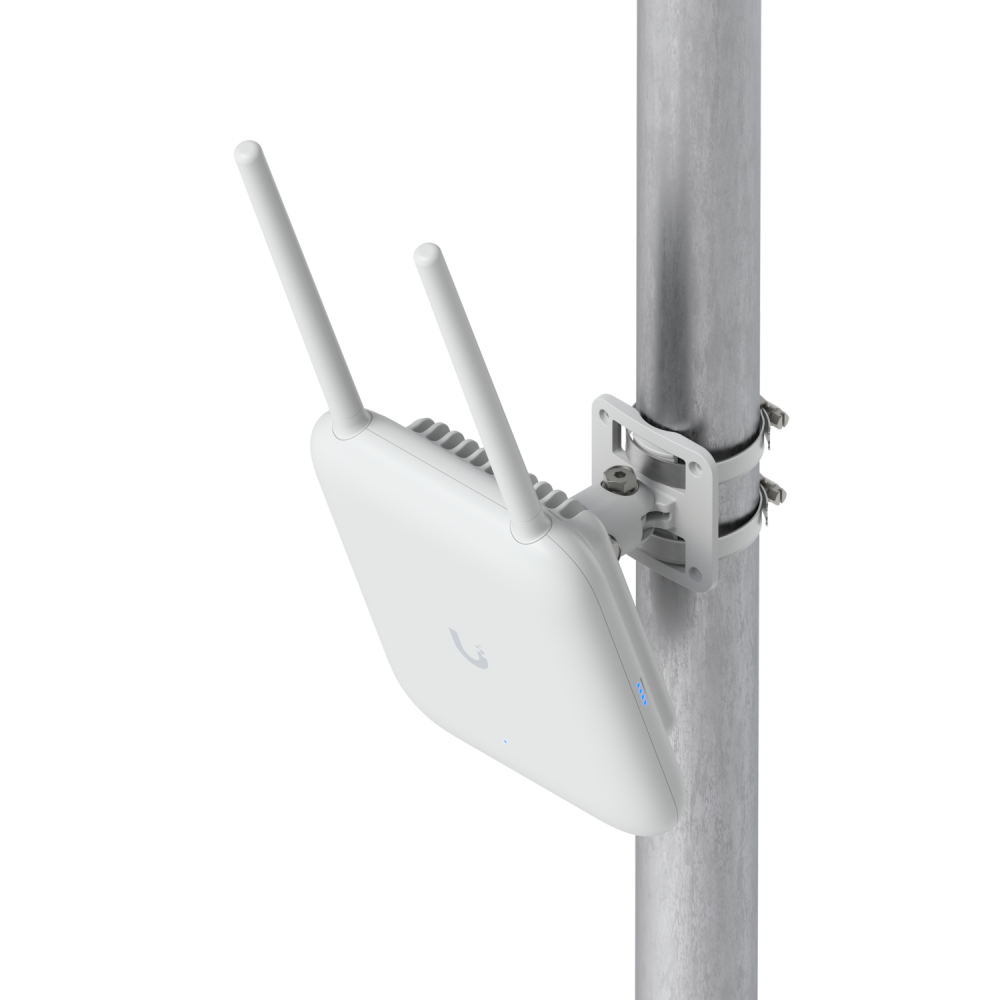

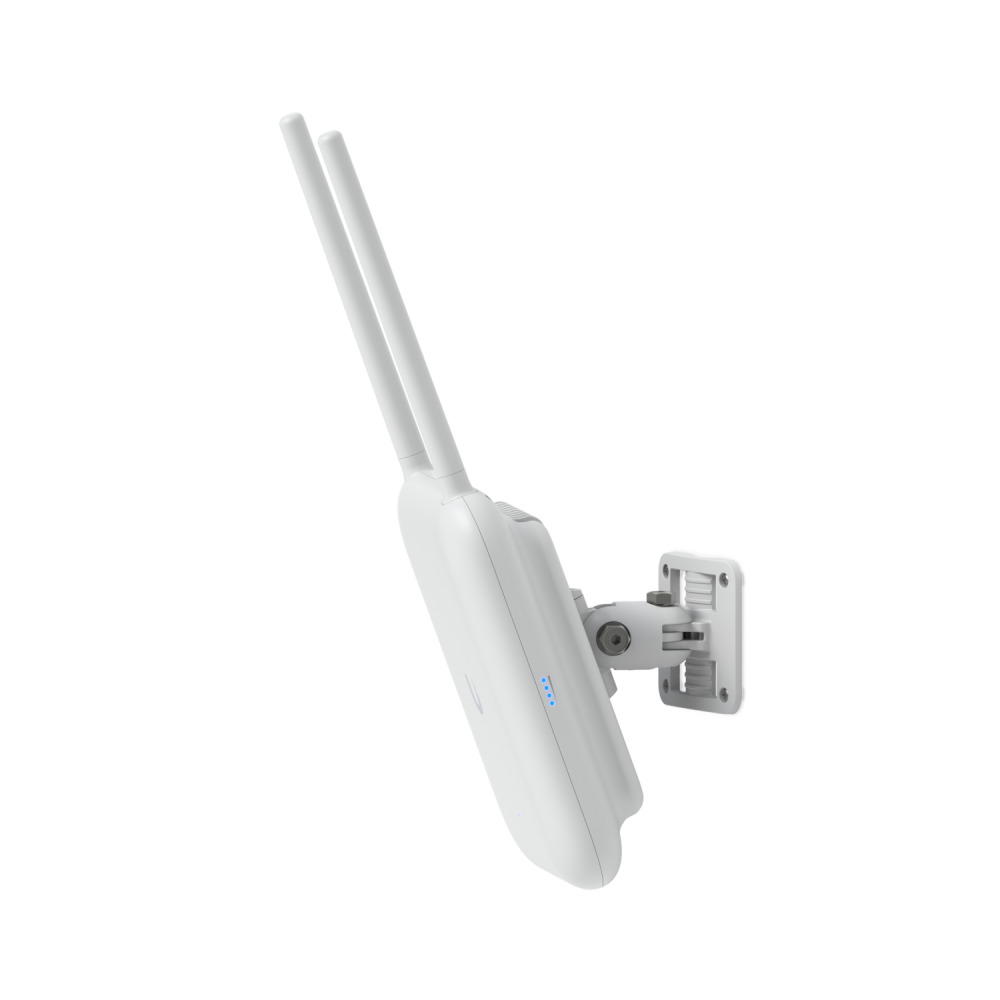

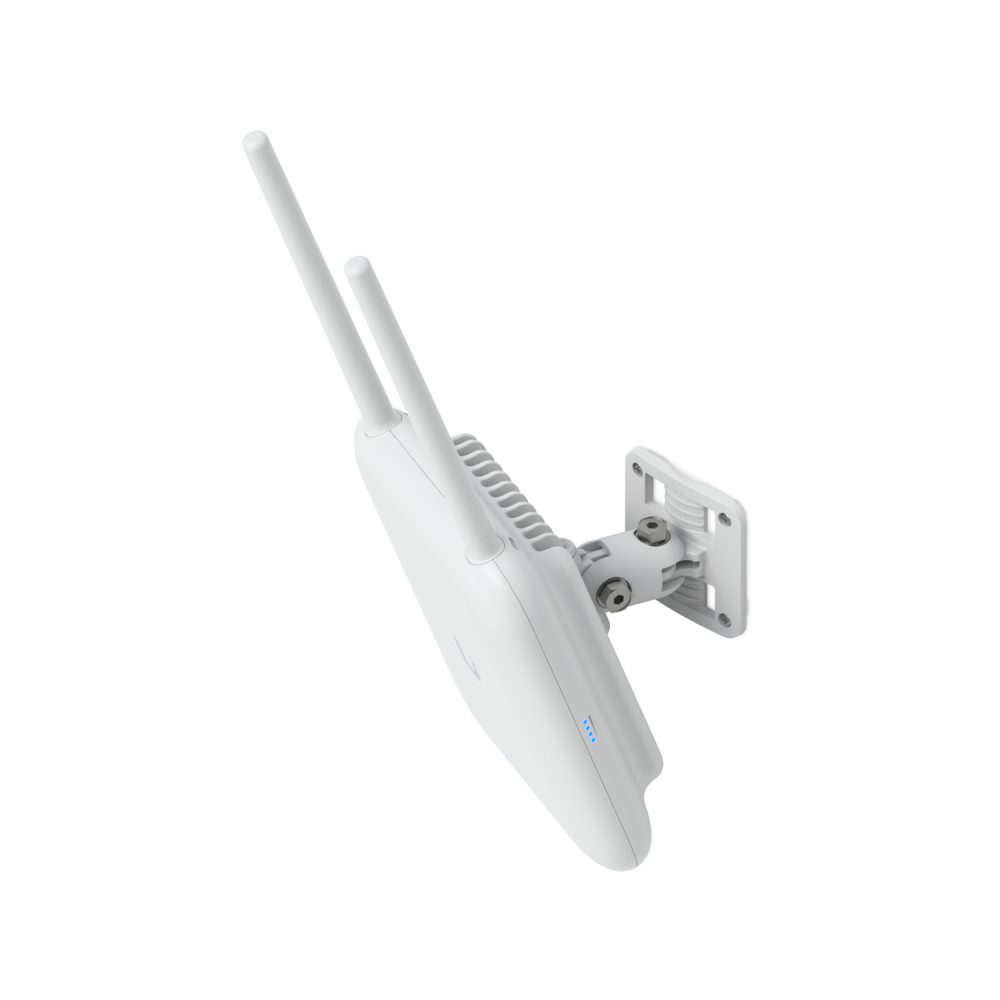

Weatherproof WiFi 7 access point with IP67 rating, specially designed for powerful wireless performance in demanding outdoor environments. Equipped with 6 spatial streams and an integrated directional "super antenna" for targeted coverage and enhanced range. The included adjustable mounting bracket makes flexible and stable installation easy. Ideal for campuses, business parks and other large-scale outdoor locations.
Specifications

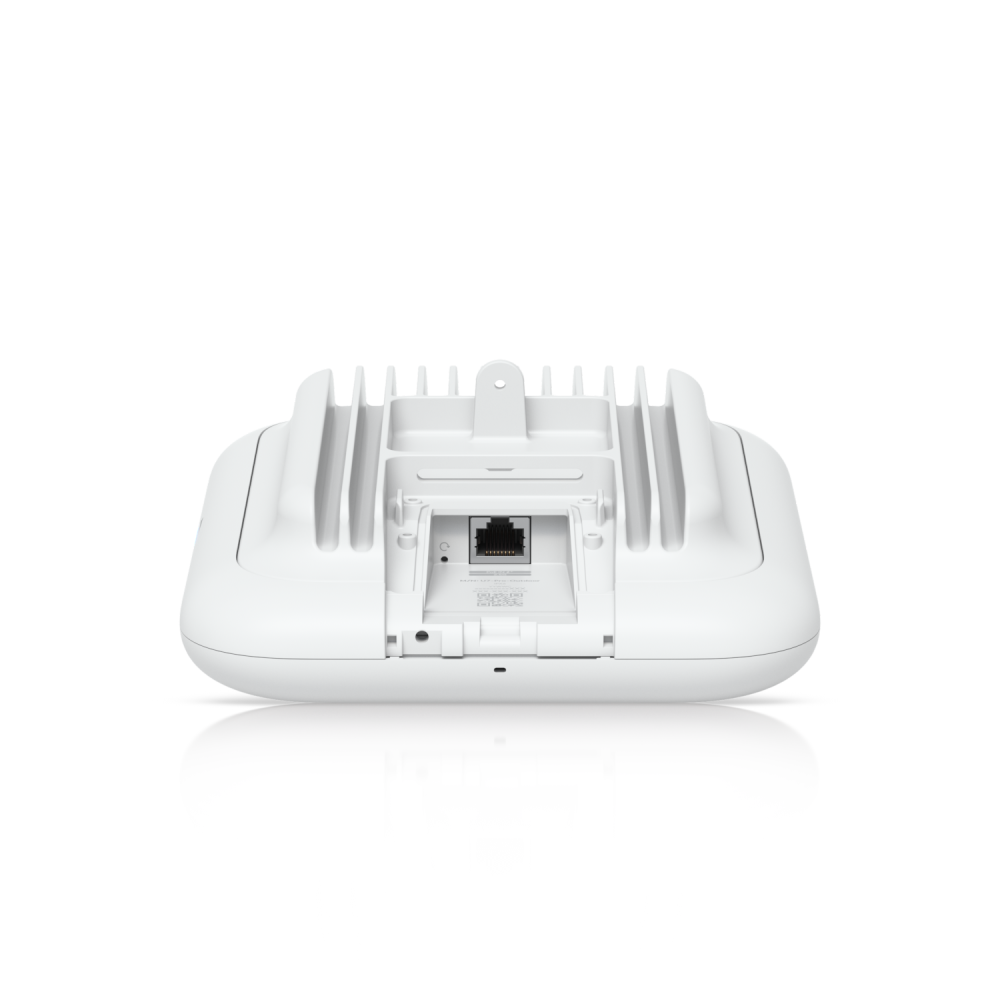

| LAN Port | (1) 2.5 GbE RJ45 port |
| Power over Ethernet | PoE+ |
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax/be, Wi-Fi 5/Wi-Fi 6/Wi-Fi 7 |
| 2.4 GHz Speed | 688 Mbps |
| 2.4 GHz Transmit Power | 23 dBm |
| 5 GHz Speed | 8600 Mbps |
| 5 GHz Transmit Power | 29 dBm |
| 6.0 GHz Speed | N/A. |
| 6.0 GHz Transmit Power | N/A. |
| Antennas | 2.4GHz: (8 dBi: 90° x 90° | 6 dBi: 360° x 15°), 5GHz: (11 dBi: 90° x 45° | 8 dBi: 360° x 15°) |
| Power consumption | 21W |
| Dimensions (HxWxD) | Without attachment: 170 x 208 x 66.5 mm | With attachment: 170 x 208 x 121.8 mm |
| Weight | Device: 1.2 kg | With attachment: 1.33 kg |
| Warranty | 24 Months |
| Scope of delivery | UniFi 7 Pro Outdoor Access Point, Mounting Accessories, Quick Start Guide |
