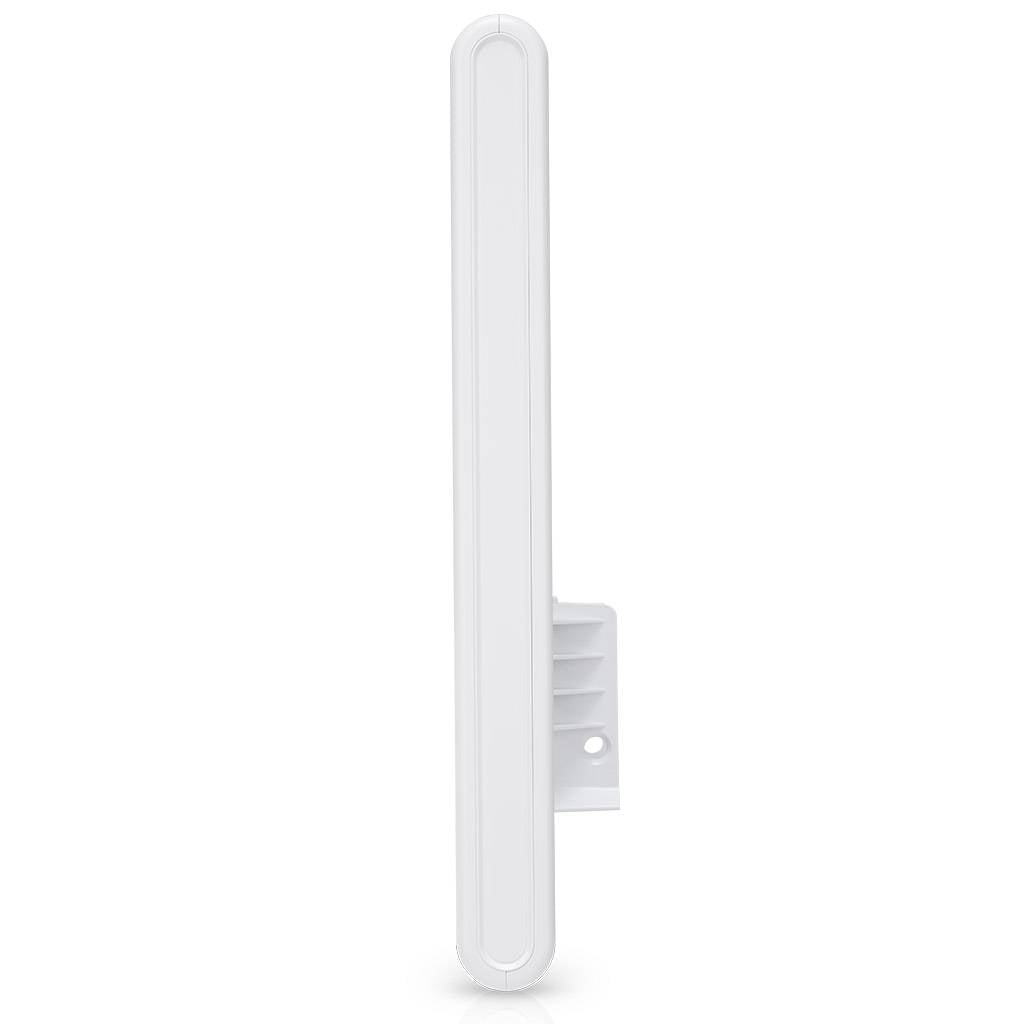

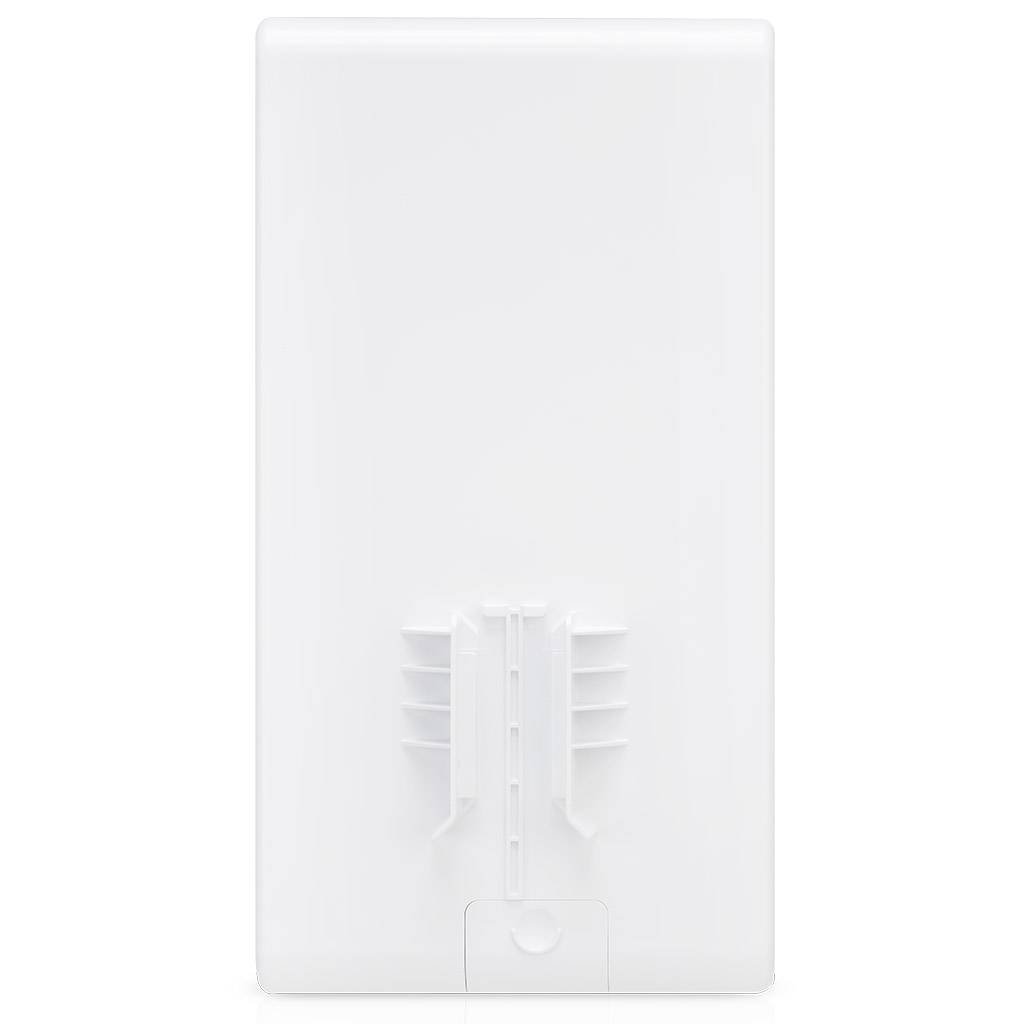

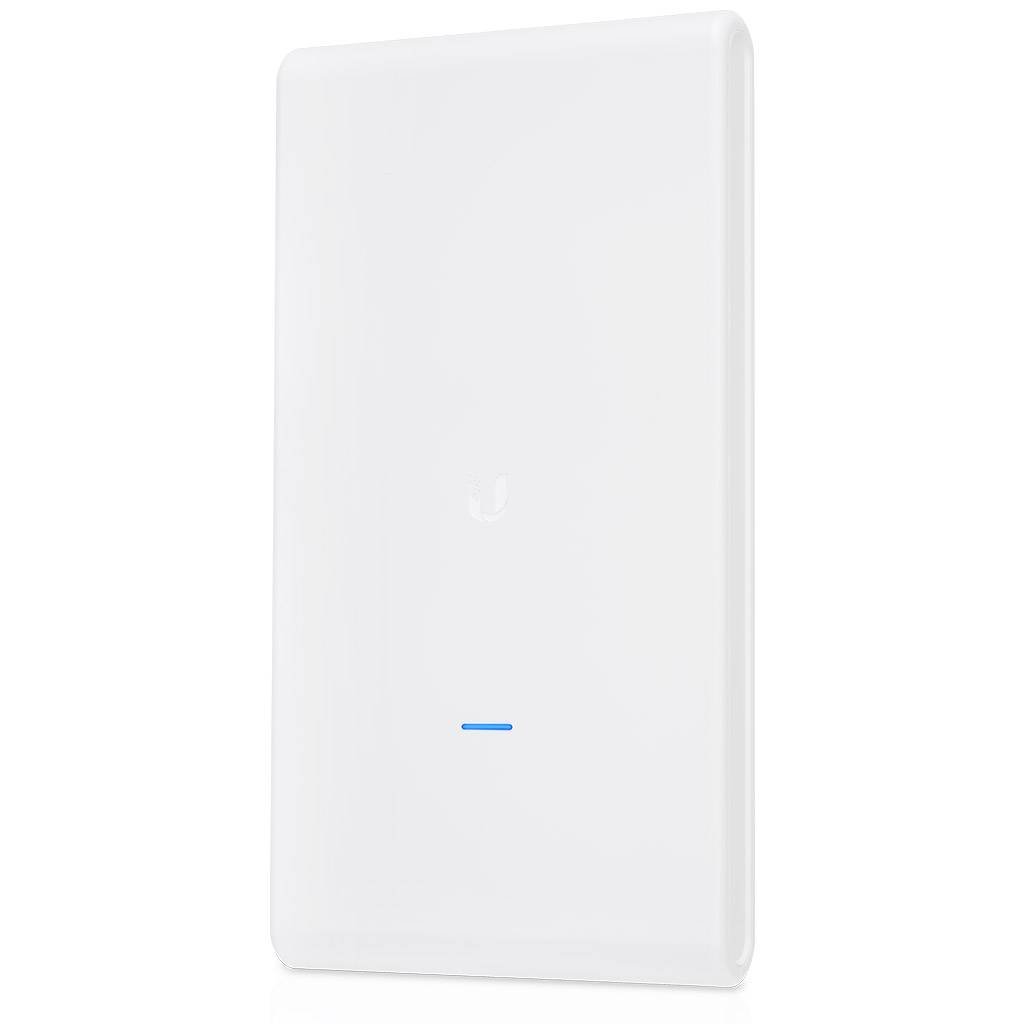

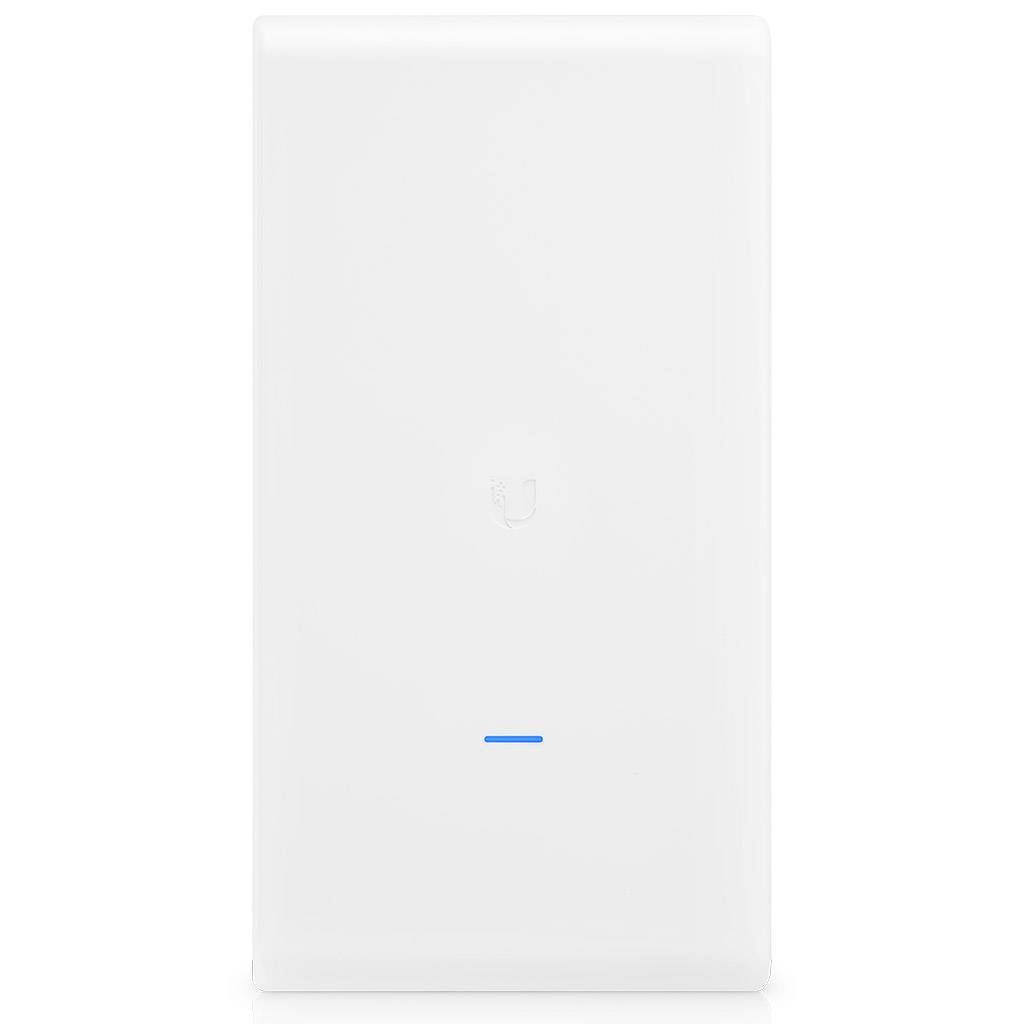

Ubiquiti UniFi AP AC Mesh Pro
Powerful wireless network
The built-in dual-band, omni-directional antennas provide a wide range of outdoor wireless network coverage.
Optimal performance
Dual-band performance with maximum speeds of 450Mbps (2.4GHz) and 1300Mbps (5Ghz).
Weatherproof housing
The UniFi AC Mesh Pro is built to withstand the elements, making it ideal for outdoor use.
Compact size
Its compact size makes the Unifi AC Mesh easy to place where you need coverage. In addition, the AC Mesh can be mounted on a wall, on a wall or on a Ubiquiti High-Gain antenna.
Easy to feed
You can easily power the UniFi AC Mesh by connecting it to an 802.3af compatible Power over Ethernet (PoE) switch or a UniFi PoE switch.
UniFied IT management
UniFi creates a complete and scalable system of devices that can be distributed around the world. All of this can be managed in a single management environment accessible from the Internet or a local network.
Downloads
- UniFi® AC Mesh APs Datasheet
- UniFi® Controller v5 Manual
- UniFi® AP AC Mesh Pro Quick Start Guide
- Latest Software
Specifications
| Dimensions (HxWxD) | 343.2 x 181.2 x 60.2 mm |
| Weight | 633 g |
| Warranty | 24 Months |
| Scope of delivery | Mast and wall mounting bracket, Screw kit, PoE Adapter, Power cord, Quick start guide |

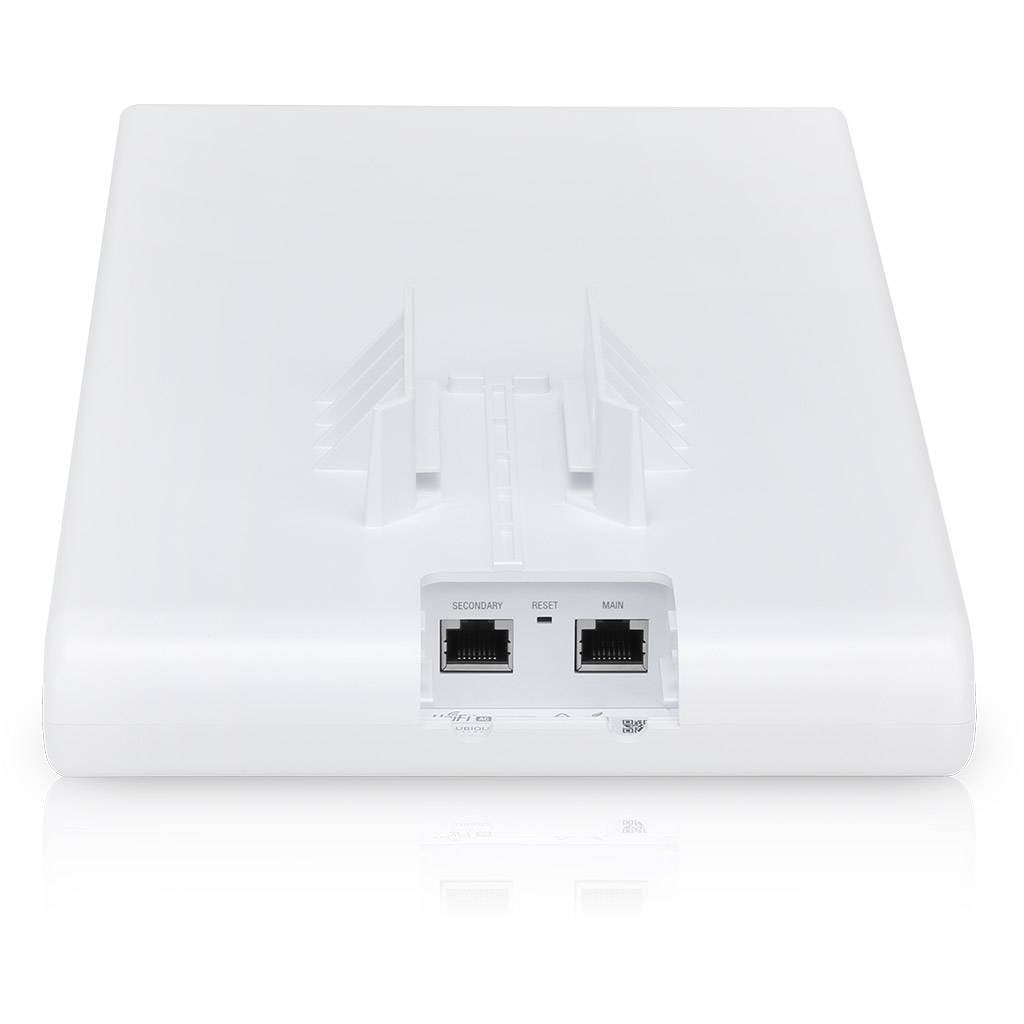

| LAN Port | 2 x Gigabit RJ-45 Ethernet Port |
| Wi-Fi Standard | 802.11 a/b/g/n/ac |
| 2.4 GHz Speed | 450 Mbps |
| 5 GHz Speed | 1300 Mbps |
| 2.4 GHz Transmit Power | 22 dBm |
| 5 GHz Transmit Power | 22 dBm |
| Antennas | (3) Internal Dual-Band Antennas 8 dBi |
| Power consumption | 9W |
| Power over Ethernet | 48V Passive PoE / 802.3af PoE |
| 6.0 GHz Speed | N/A. |
| 6.0 GHz Transmit Power | N/A. |
